Special lights

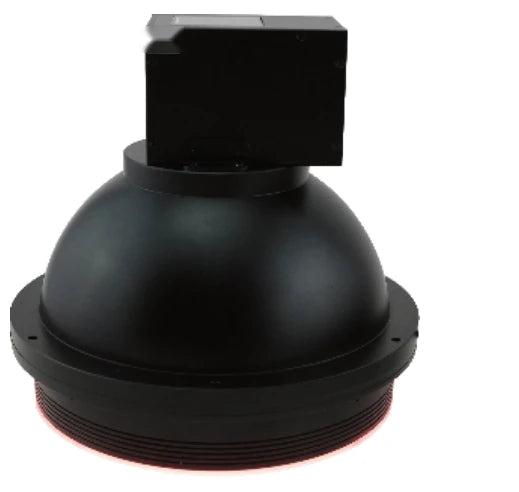

167 x 130 mm Customized lights (LS-SPC-0059)
Model LS-SPC-0059
- Voltage24 V
- Power24.7 W
- SeriesCombined light (dome + coaxial)
- Outer dia.200 mm
$849.00
Ships in 2-3 weeks
1.95 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
To serve customers with different needs, machine-vision illumination of many kinds can be customized to the customer's requirements. Process: the customer states an idea or requirement, a solution is worked out by experiment, feasibility is discussed with the customer, products are trial-produced, and the customer is assisted in use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0059 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Series | Combined light (dome + coaxial) |
| Outer dia. (mm) | 200 |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| Emitting surface | dia. 167 dome, dia. 130, 50 x 50 coaxial |
|---|---|
| LED colour | R(red)/W(white) |
Electrical
| Voltage | 24 V |
|---|---|
| Power (W) | 24.7 |
| Power | 24.7W |
Mechanical
| Height (mm) | 180 |
|---|---|

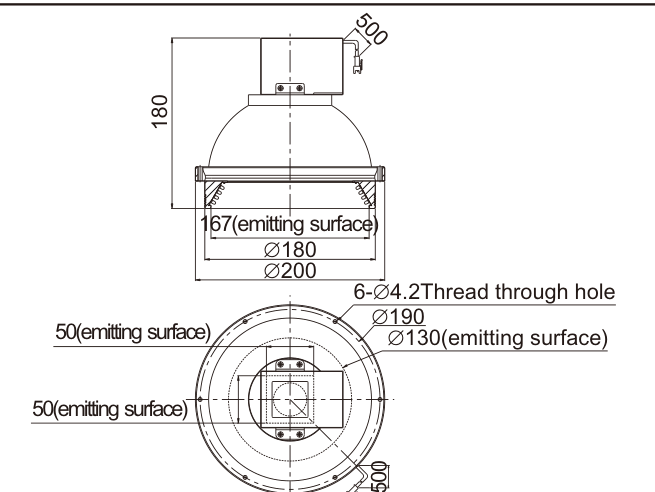

| Dimension | Out dia. 200,Inner dia. 180,Height 180mm |
| Shipping weight | 1.95 kg |
