88 mm OD Low-Angle Ring Shadowless Light (LS-SLR-88)
  • 88 mm OD Low-Angle Ring Shadowless Light (LS-SLR-88)

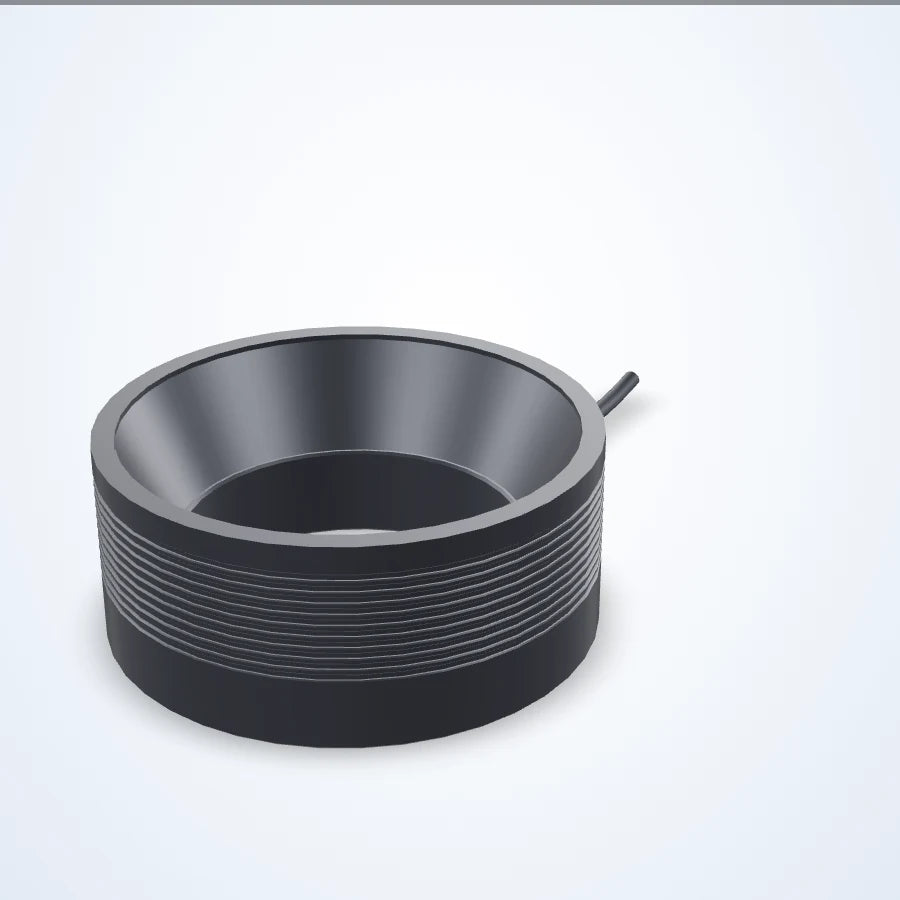

  • LS-SLR-88 3D render
  • LS-SLR-88 dimensions (mm)

Shadowless lights

88 mm OD Low-Angle Ring Shadowless Light (LS-SLR-88)

Model LS-SLR-88

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power4.5 W
  • Power R4.2 W
$189.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.25 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

88 mm OD Low-Angle Ring Shadowless Light. Low angle ring shadowless light with high-density LEDs arranged vertically and special light-guiding diffusion. Its efficient low-angle lighting enhances surface features and reduces reflective glare.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SLR-88
OD x ID x H (mm)88x60x37

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)4.2
Power W/B/G (W)4.5

Mechanical

Shipping weight (estimated)0.25 kg

Mounting and drawing data

drawing: 4-M3 depth 4 on P.C.D 68; emitting face dia 80

Other models in the Low angle ring shadowless light (SLR series) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-SLR-100 100 mm OD $209.00 14 in stock View
LS-SLR-136 136 mm OD $269.00 17 in stock View
LS-SLR-180 180 mm OD $349.00 10 in stock View
LS-SLR-250 250 mm OD $479.00 14 in stock View
