CCTV lenses
12 mm, 2/3", 8 MP, C-mount ITS Traffic Lens (LS-SITS12J14-8M)
Model LS-SITS12J14-8M
- Focal length12 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual iris
- Resolution8.0 Megapixel
$99.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.32 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12 mm, 2/3", 8 MP, C-mount ITS Traffic Lens. 12 mm, 8 megapixel C-mount lens for 2/3" sensors (also 1/2", 1/2.7") with -2.9% TV distortion, for ITS, LPR and automation. At a glance: focal length 12 mm; format 2/3"; resolution 8.0 Megapixel; aperture F1.4 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SITS12J14-8M |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 51 x 41.3 x 31.3 deg |
| Angle of view (1/2", DxHxV) | 31.7 x 31 x 23 deg |
| Angle of view (1/2.7", DxHxV) | 31.3 x 25.3 x 19.1 deg |
| CRA | ≤10.6° |
| Notes | -30℃ +70℃ |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F1.4 Manual iris |
| M.O.D. | 0.3 m |
| Distortion | -2.9% |
| Back focal length | 11.4 mm ( in air ) |
| Mechanical back focus | 9.75 mm~11.35 mm ( in air ) |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|
Mechanical

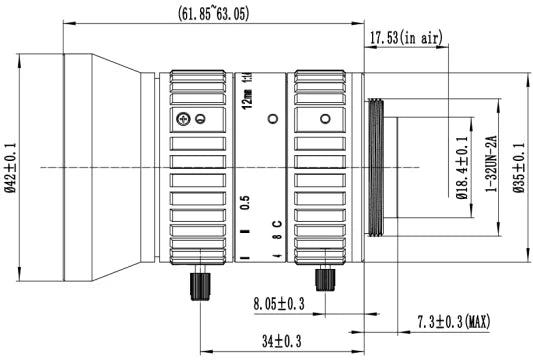

| Size | dia. 42 x 61.85~63.05 mm |
|---|---|
| Mount | C |
| Weight | 160 g |
| Shipping weight (estimated) | 0.32 kg |
Other models in the ITS Traffic lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-S11ITS2510IR-12M | 25 mm, 1.1", 12 MP, C-mount | $99.00 | 5 in stock | View |
| LS-S1ITS2515IR-8M | 25 mm, 1", 8 MP, C-mount | $99.00 | 2 in stock | View |
| LS-S1ITSD2014-8M | 20 mm, 1", 8 MP, C-mount | $99.00 | 3 in stock | View |
| LS-S1ITSM1214IR-12M | 12 mm, 1", 12 MP, C-mount | $99.00 | 4 in stock | View |
| LS-S43ITS85H20-10M | 85 mm, 4/3", 10 MP, C-mount | $99.00 | 5 in stock | View |
