Machine vision lenses
35 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel (LS-SDOF3528-20M)
Model LS-SDOF3528-20M
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8-22
- Resolution20 Megapixel
$479.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.52 kg shipping weight
Volume pricing, Net 30 or a formal quote?
35 mm, 1.1", 20 MP, C-mount Machine Vision Lens. A 1.1" format, 20 megapixel C-mount lens with an adjustable Scheimpflug (tilt) angle mechanism that overcomes the depth-of-field limitation on inclined objects, for SMT, 3D detection and other Industry 4.0 applications. At a glance: focal length 35 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8-22; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDOF3528-20M |
|---|---|
| Format | 1.1" |
| Angle of view (1.1", HxVxD) | 22.6 x 17 x 28.3 deg |
| Angle of view (1", HxVxD) | 20.6 x 15.45 x 25.75 deg |
| Angle of view (2/3", HxVxD) | 14.3 x 10.7 x 17.86 deg |
| Flange back | 17.526 mm in air |
| Front / rear effective dia. | dia. 23 mm / dia. 19.1 mm |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.8-22 |
| TV distortion | <0.02% |
| M.O.D. | 0.2 m |
| Back focus | 22.9 mm (min) |
| Filter thread | M35.5 x P0.5 |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10~+50 °C |
|---|---|
| Storage temperature | -20~+60 °C |
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.52 kg |

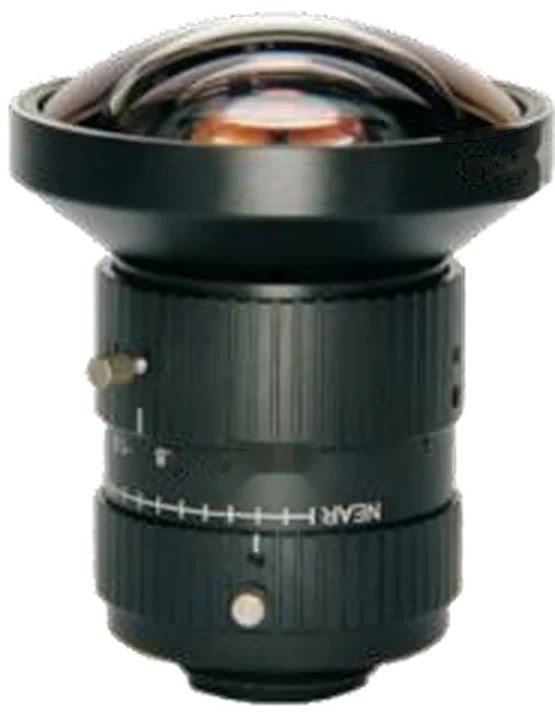

Photo shows a representative model of this series; see the specifications for this model.
