0.044x, WD 338 mm, 2/3", C-mount Telecentric Lens (LS-SDM258)
Model LS-SDM258
- Magnification0.044x
- MountC-mount
- Sensor2/3"
- Working distance338±5
- Aperture4.9
- Field of view258
$4,979.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
34.12 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
0.044x, WD 338 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.044x; working distance 338±5 mm; max sensor size 11.4 mm (2/3"); object field of view 258 mm; image-side f/# 4.9.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDM258 |
|---|
Optics
| Object field of view (dia. mm) | 258 |
|---|---|
| Magnification (x) | 0.044 |
| Working distance (mm) | 338±5 |
| Image-side F/# | 4.9 |
| Image-side MTF30 (lp/mm) | >180 |
| Theoretical depth of field (mm) | ±225@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 785±5 |

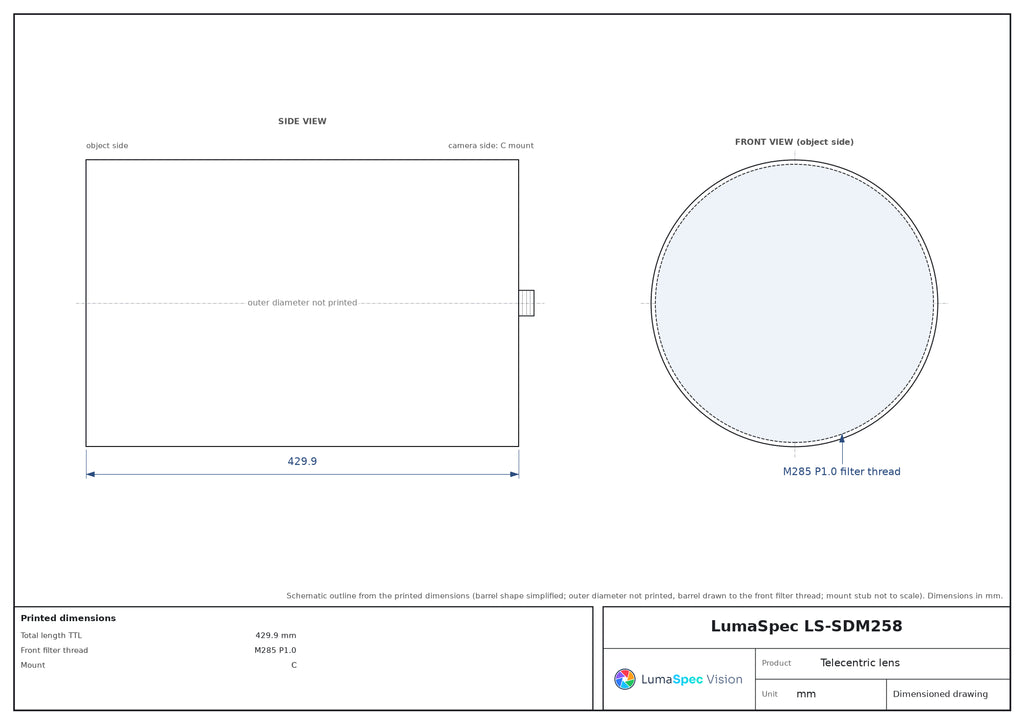

| Total length TTL (mm) | 429.9 |
| Front filter thread | M285 P1.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.4(2/3") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 24.3 |
| Shipping weight (estimated) | 34.12 kg |
Photo shows a representative model of this series; see the specifications for this model.
