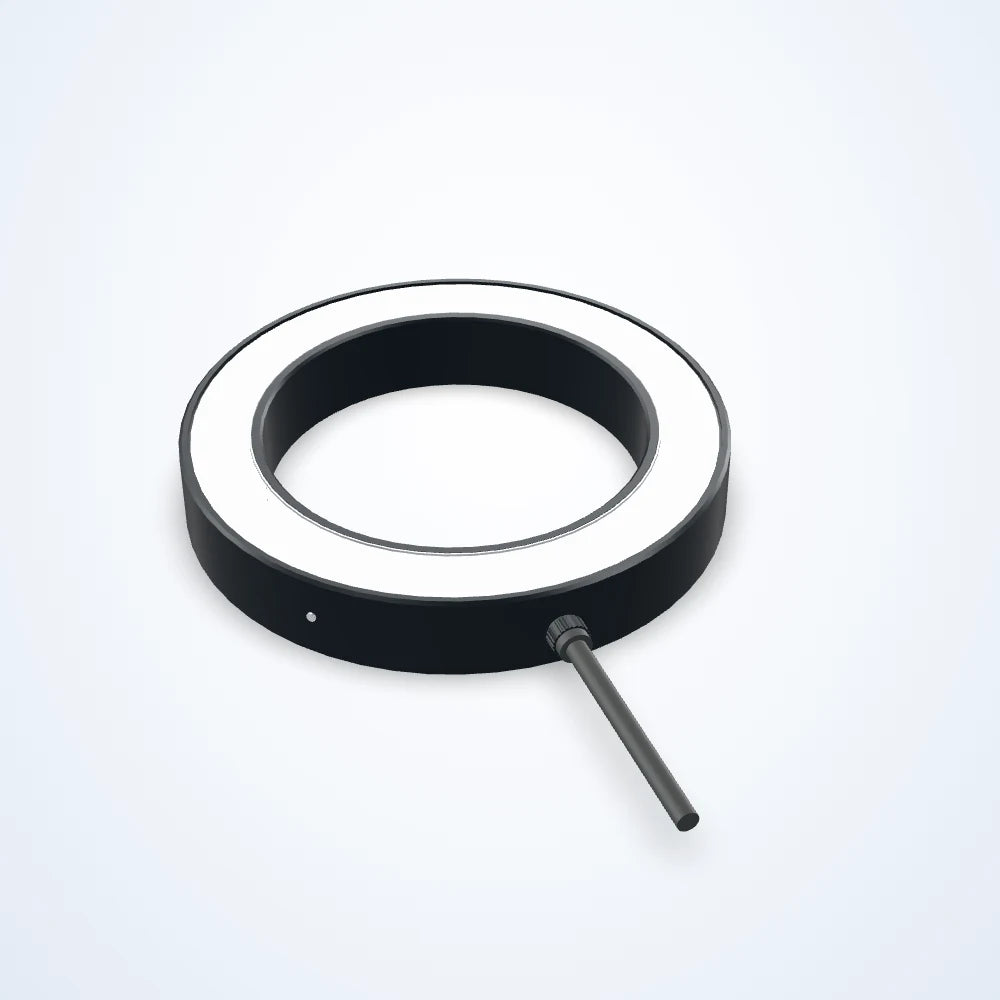

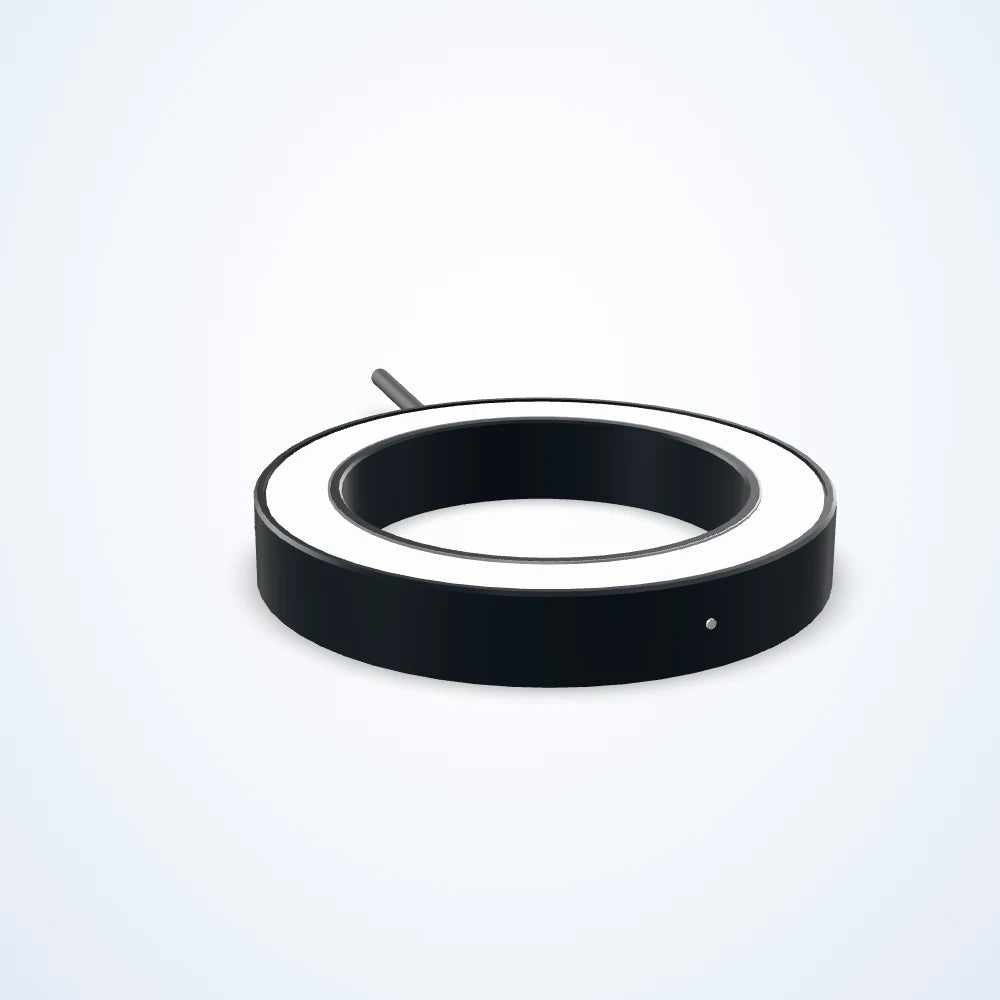

Ø166 mm high-angle shadowless ring light (LS-SDL-0157)

Model LS-SDL-0157-R

ColourRed, Blue, White, Green, Infrared, UV
Voltage24 V
Power (red)13.2 W
Outer diameter166 mm

$340.00

Ships in 3-4 weeks

2.0 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-angle shadowless ring light for glare-free light on shiny parts. Size Ø166 mm; 24 V supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0157
Service life	White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 V
Power (red)	13.2 W
Power (blue / white / green)	19.2 W

Mechanical

Outer diameter (mm)	166
Inner diameter (mm)	116
Height (mm)	26
Housing material	Aluminum alloy, Resin
Shipping weight	2.00 kg
