Shadowless lights

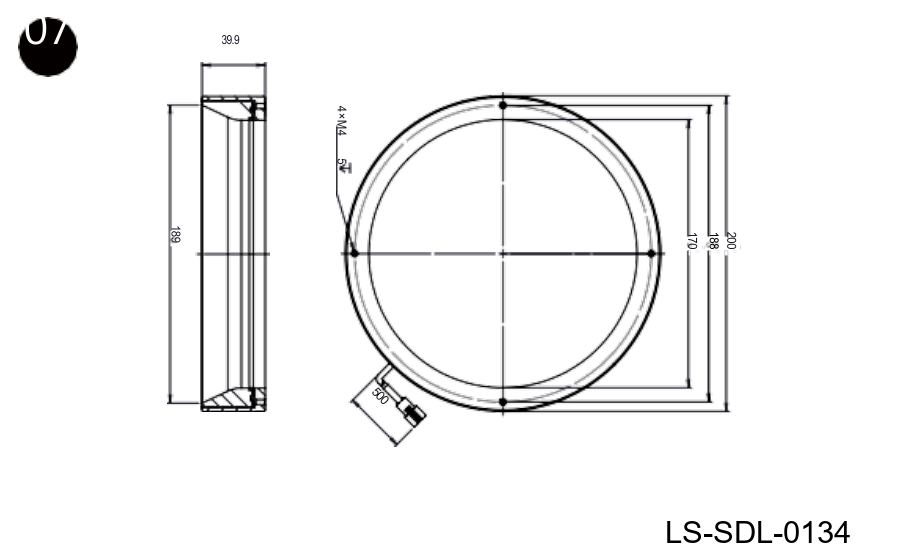

200 mm dia. non-standard shadowless lights (LS-SDL-0134)
Model LS-SDL-0134
- Voltage24 V DC (12 V on request)
- Outer diameter200 mm
- Inner diameter170 mm
- Height39.9 mm
$849.00
Ships in 2-3 weeks
1.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0134 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 14 |
| Power white/blue/green (W) | 17.5 |
Mechanical
| Outer diameter (mm) | 200 |
|---|---|
| Inner diameter (mm) | 170 |
| Height (mm) | 39.9 |
| Mounting | 4 x M4 threaded, depth 5 |
| Shipping weight | 1.05 kg |
Other models in the Non-standard shadowless lights (LS-SDL-S23) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0133 | 100 mm dia. | $389.00 | Ships in 2-3 weeks | View |
