Shadowless lights

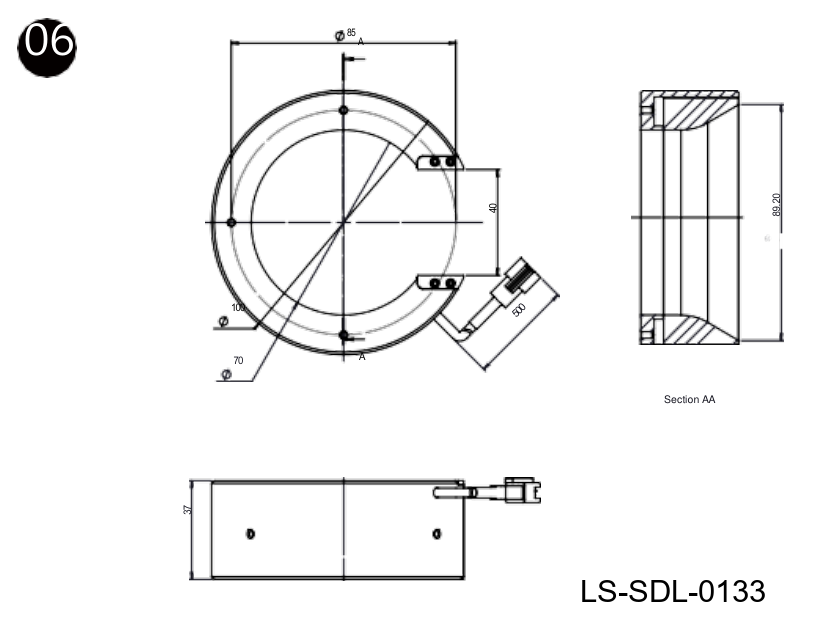

100 mm dia. non-standard shadowless lights (LS-SDL-0133)
Model LS-SDL-0133
- Voltage24 V DC (12 V on request)
- Outer diameter100 mm
- Inner diameter70 mm
- Height37 mm
$389.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0133 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 5.04 |
| Power white/blue/green (W) | 6.3 |
Mechanical
| Outer diameter (mm) | 100 |
|---|---|
| Inner diameter (mm) | 70 |
| Height (mm) | 37 |
| Shipping weight | 0.40 kg |
Other models in the Non-standard shadowless lights (LS-SDL-S23) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0134 | 200 mm dia. | $849.00 | Ships in 2-3 weeks | View |
