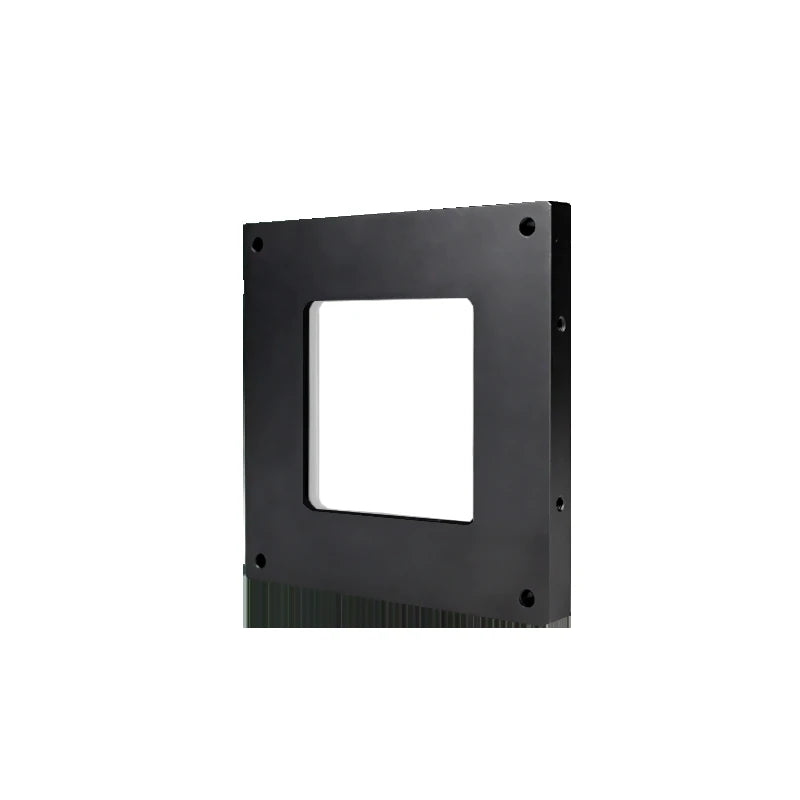

Representative photo of this series

Shadowless lights

200 x 150 mm Flat shadowless light (LS-SDL-0054)

Model LS-SDL-0054

ColourRed, Blue, White
Voltage24 V
LED typeSMD
Luminous size200x150 mm

$849.00

Ships in 2-3 weeks

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Flat shadowless light consists of uniformly distributed LED light-emitting units and special light guiding material.Support customized color, wavelength, luminous size, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0054
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support

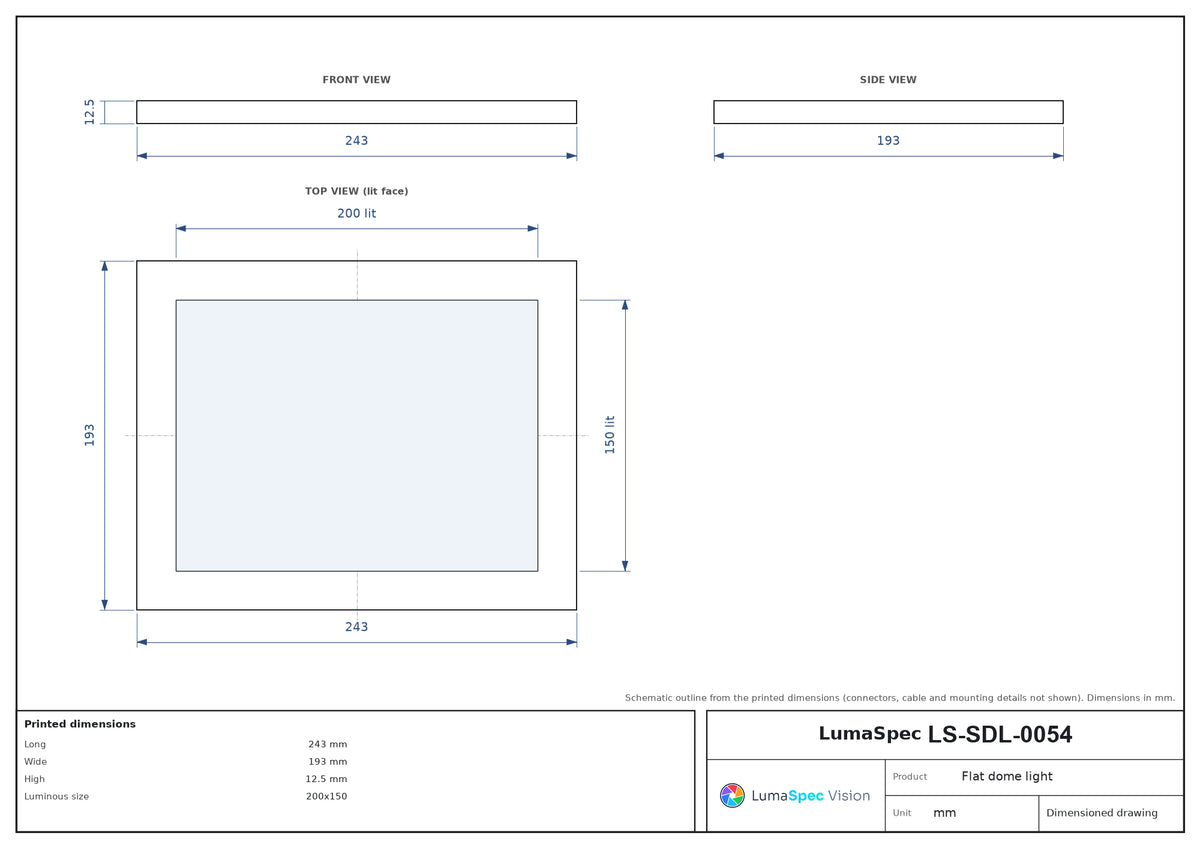

Long (mm)	243
Wide (mm)	193
High (mm)	12.5

Light

LED type	SMD
Luminous size (mm)	200x150
Wavelength red	620-630 nm
Wavelength blue	460-470 nm
Colour temperature white	6000-7500 K

Environment and compliance

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	10
Power blue/white (W)	12.5

Mechanical

Shipping weight	0.60 kg

Downloads

Datasheet (PDF)LS-SDL-0054 · 826 KB

Features

Thin square body, 10-12.5 mm high, with a central viewing window
FLS (dot) and 2FLS (no dot) versions (application example: bottle body character)
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Luminous size: 50mm*50mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:30000 hours for red light and 30000 hours for white light.
Suitable for defect detection of objects with uneven surfaces, arc object surface feature detection,packaging text recognition and print detection,etc.

Applications

Defect detection of objects with uneven surfaces
Appearance inspection of electronic components
Arc surface character detection, cylinder surface detection
Packaging character recognition, canned surface printing detection
