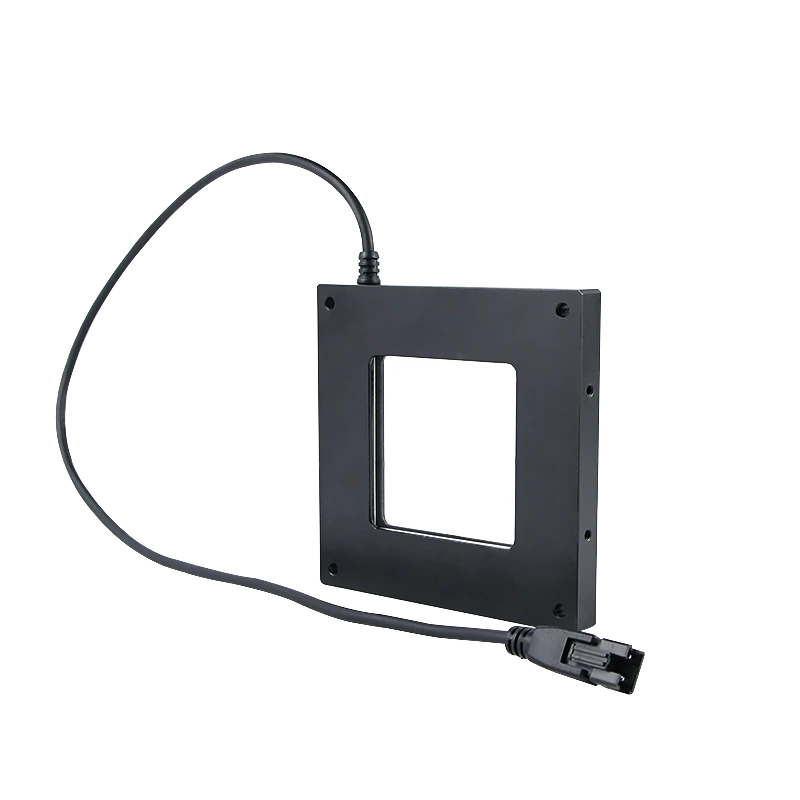

100 x 100 mm Flat shadowless light, 140 x 140 x 10 mm (LS-SDL-0049)
  • 100 x 100 mm Flat shadowless light, 140 x 140 x 10 mm (LS-SDL-0049)

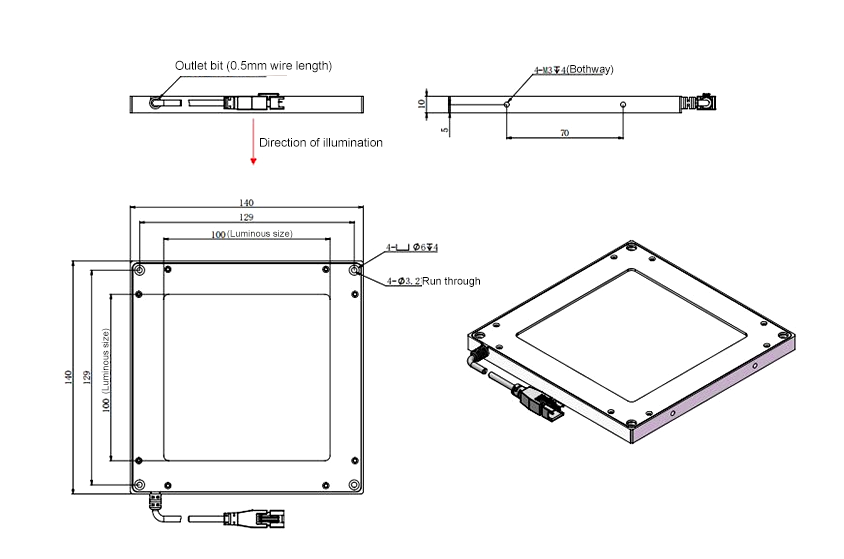

  • LS-SDL-0049 dimensions (mm)

Shadowless lights

100 x 100 mm Flat shadowless light, 140 x 140 x 10 mm (LS-SDL-0049)

Model LS-SDL-0049

  • ColourRed, Blue, White
  • Voltage24 V
  • Connector3-pin flat
  • LED typeSMD
$389.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

100 x 100 mm Flat shadowless light, 140 x 140 x 10 mm (LS-SDL-0049)LS-SDL-0049

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat shadowless light consists of uniformly distributed LED light-emitting units and special light guiding material.Support customized color, wavelength, luminous size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0049
CategoryFlat shadowless light
Terminal PlugFlat head 3PIN 2 pin
CoolingNatural air cooling
Electrical insulation capacityDC500V Insulation resistance >20 megohms
Pressure Resistance RequirementsAC1000V 10mA/5S
Flammability RatingIEC60707
Value-added ServicesOne year free technical support
Long (mm)140
Wide (mm)140
High (mm)10

Interfaces and I/O

Cable length0.5m
Connector Definition1 : positive (+) red; 2 : left blank; 3 : negative (-) black.
Mating cable (optional)1. Light source extension cable 2. Connector adapter cable

Light

LED typeSMD
Luminous size (mm)100x100
Colorred/white/blue/green
Wavelengthred: 620-635nm; white: -; blue: 465-470nm; green: 525-530nm
Color temperaturered: -; white: 5500-6500K; blue: -; green
Brightness Controller (optional)1. Analog Controller 2. Digital Controller

Environment and compliance

Operating Temperature and HumidityTemperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing)
LifespanUnder our specified conditions of use, 50,000 hours for red light and 30,000 hours for white light, the brightness is reduced to 50% of the factory value

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Power(W) Red5.5
Power(W) Blue/White/Green6.5
Voltage (V)24

Mechanical

Light guide plateLight guide plate is no dot type
Shell materialAluminum Alloy (Oxidative blackened surface)
Shell Hardness ParametersStatic load 230N±10N, time 5 minutes contact area: diameter 30MM Energy level: 5J elements: steel ball diameter 50MM, 500g ± 25g
Shipping weight0.30 kg
