Dome lights

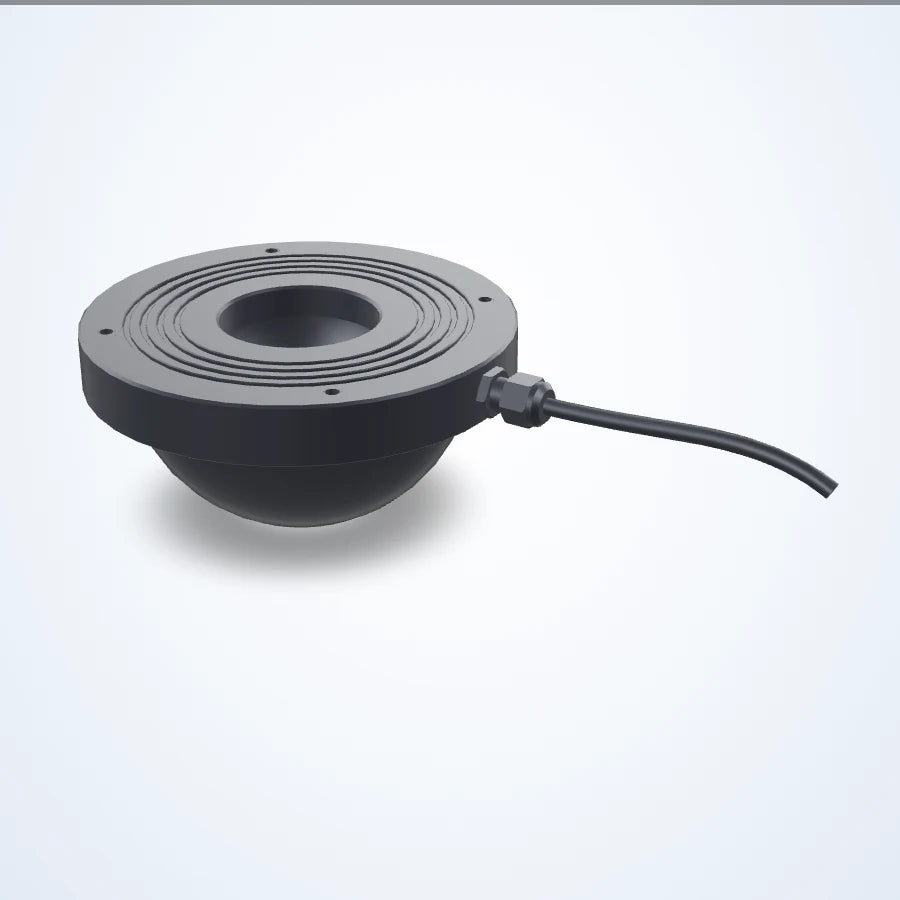

79 mm OD Dome Light (LS-SD-70)
Model LS-SD-70
- ColourRed, Green, Blue, White
- Voltage24 V
- Power R2.3 W
- Power G/B/W3 W
$199.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
79 mm OD Dome Light. Hemispherical dome light with an excellent shadow-free effect, a large illumination area and high uniformity. Each model has a camera hole in the top of the dome (hole diameter listed per model).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SD-70 |
|---|---|
| Hole dia (mm) | 20 |
| OD x H (mm) | 79x35.52 |
Interfaces and I/O
| Cable lead (mm, per drawings) | 500 |
|---|
Light
| Colours | Red, Green, Blue, White |
|---|
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 2.3 |
| Power G/B/W (W) | 3 |
Mechanical
| Shipping weight (estimated) | 0.25 kg |
|---|
Mounting and drawing data
table OD 79 for the -70 model; drawing: 4-M3 on P.C.D 69, height 37.52 (table 35.52), plastic dome cover
Other models in the Dome light (SD series) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

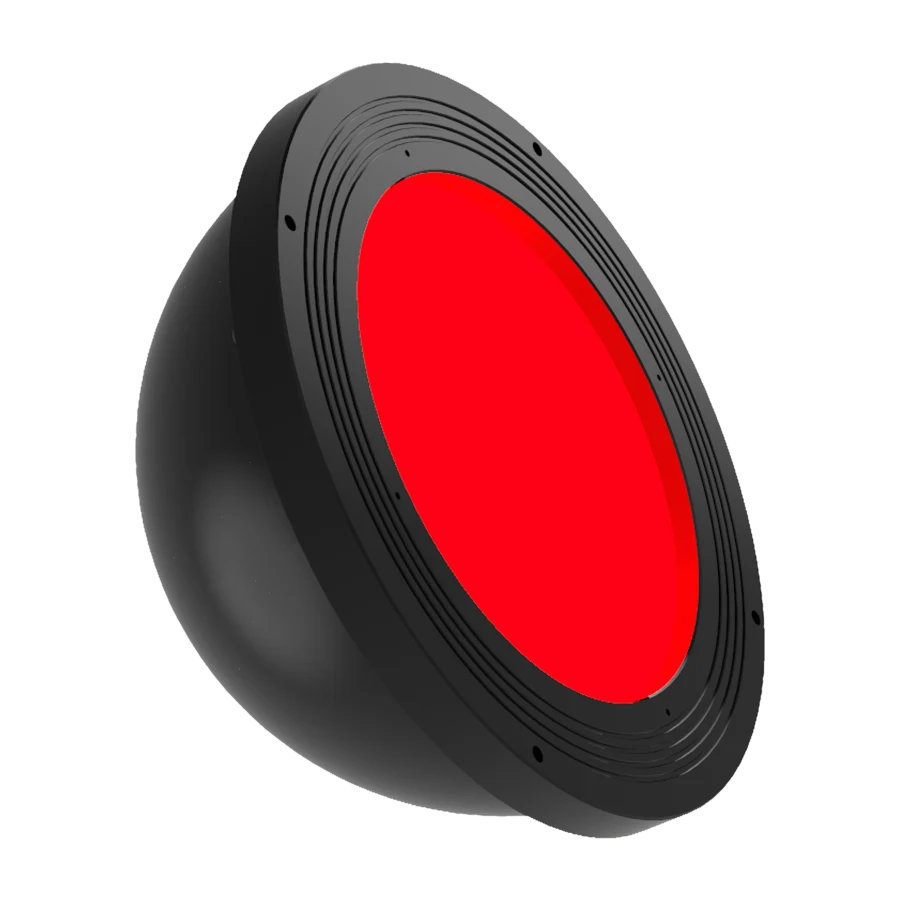

| LS-SD-44 | 44 mm OD | $119.00 | 13 in stock | View |
| LS-SD-100 | 116 mm OD | $309.00 | 15 in stock | View |
| LS-SD-120 | 134 mm OD | $369.00 | 16 in stock | View |
| LS-SD-150 | 171 mm OD | $519.00 | 12 in stock | View |
| LS-SD-180 | 196 mm OD | $629.00 | 15 in stock | View |
| LS-SD-250 | 260 mm OD | $969.00 | 11 in stock | View |
