M12 board lenses
2.6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens (LS-SBF2618IR-3M)
Model LS-SBF2618IR-3M
- Focal length2.6 mm
- MountM12
- Sensor1/2.7"
- ApertureF1.8 fixed iris
- Resolution3.0 MP
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens. 2.6 mm 1/2.7" 3 MP M12 wide-angle lens (162 deg diagonal) with F1.8 aperture, IR correction and an aspherical element for short-distance day/night security cameras. At a glance: focal length 2.6 mm; format 1/2.7"; resolution 3.0 MP; aperture F1.8 fixed iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SBF2618IR-3M |
|---|---|
| Format | 1/2.7" |
| IR correction | IR |
| Angle of view (1/2.7", DxHxV) | 162 x 131 x 68.8 deg |
Optics
| Focal length | 2.6 mm |
|---|---|
| Aperture | F1.8 fixed iris |
| Distortion | -78.5% |
| M.O.D. | 0.15 m |
| TTL | 22.51 mm |
| Total track length (TTL) | 22.51 |
Sensor and imaging
| Resolution | 3.0 MP |
|---|
Mechanical

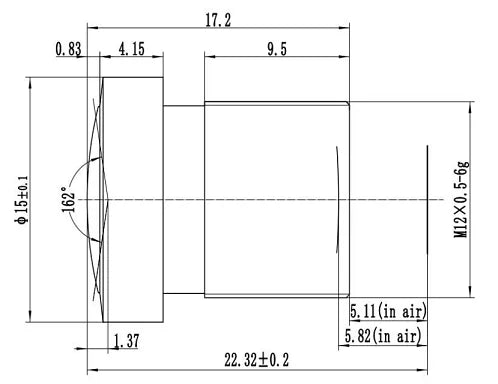

| Size | dia. 15 x 17.2 mm |
|---|---|
| Mount | M12 |
| Weight | 6 g |
| Shipping weight (estimated) | 0.11 kg |
