5-50 mm, 1/2.7", 4 MP, D14-mount Motorized Zoom Lens (LS-SBF0550IR-4M)
  • 5-50 mm, 1/2.7", 4 MP, D14-mount Motorized Zoom Lens (LS-SBF0550IR-4M)

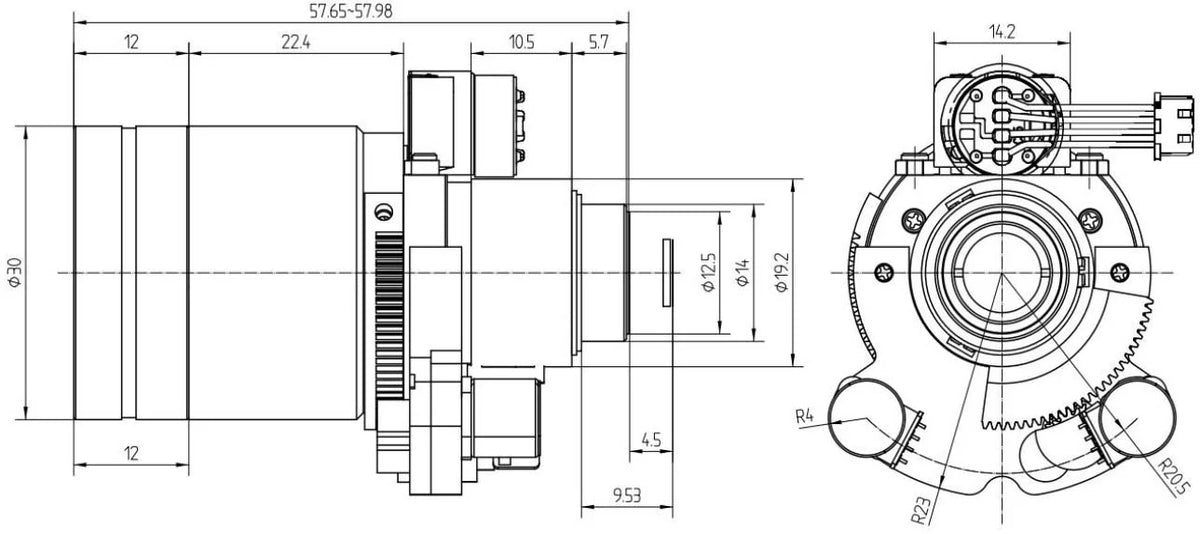

  • LS-SBF0550IR-4M dimensions (mm)

CCTV lenses

5-50 mm, 1/2.7", 4 MP, D14-mount Motorized Zoom Lens (LS-SBF0550IR-4M)

Model LS-SBF0550IR-4M

  • Focal length5-50mm
  • MountD14
  • Sensor1/2.7"
  • ApertureF1.6 DC Iris ( Fixed/P-iris optional)
  • Resolution4.0 Megapixel
$209.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.32 kg shipping weight

Volume pricing, Net 30 or a formal quote?

5-50 mm, 1/2.7", 4 MP, D14-mount Motorized Zoom Lens. 5-50 mm 1/2.7" 4.0 megapixel motorized zoom and focus lens with dia. 14 mount and DC iris, for LPR, ITS and entrance cameras. At a glance: focal length 5-50mm; format 1/2.7"; resolution 4.0 Megapixel; aperture F1.6 DC Iris ( Fixed/P-iris optional); mount dia. 14.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SBF0550IR-4M
Format1/2.7"
Angle of view (1/2.7", DxHxV)W 58.6 x 50.6 x 28.3 / T 8.6 x 7.5 x 4.3 deg
Angle of view (1/3", DxHxV)W 52.8 x 42.1 x 31.5 / T 7.8 x 6.3 x 4.8 deg
Angle of view (1/4", DxHxV)W 39.4 x 31.5 x 23.5 / T 5.9 x 4.8 x 3.6 deg
CRA<0.3° (W) / <-0.5° (T)
NotesMotorized zoom & focus
IR correctionYes (day & night)

Optics

Focal length5-50mm
ApertureF1.6 DC Iris ( Fixed/P-iris optional)
M.O.D.1m
Distortion-10.3% ~ 1.85%
Back focal length (optical)6.46mm (in air)
Mechanical back focal length4.56mm (in air)

Sensor and imaging

Resolution4.0 Megapixel

Mechanical

Optical total length62.1mm
Sizedia. 30 x 57.6mm
Mountdia. 14
Weight155g
Shipping weight (estimated)0.32 kg
