Machine vision lenses

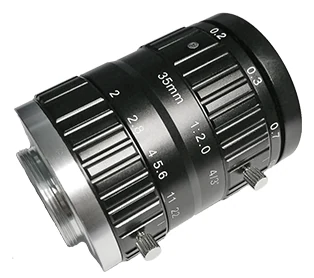

35 mm, 4/3", 10 MP, C-mount Machine Vision Lens (LS-FFL-0709)
Model LS-FFL-0709
- Focal length35 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.0 manual iris
- Resolution10 MP
$479.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.34 kg shipping weight
Volume pricing, Net 30 or a formal quote?
35 mm, 4/3", 10 MP, C-mount Machine Vision Lens. 35 mm 4/3" 10 MP C-mount machine vision lens with -0.56% distortion for automation, SMT, AOI, semiconductor, colour sorting and measurement; covers 4/3" down to 1/2" sensors. At a glance: focal length 35 mm; format 4/3"; resolution 10 MP; aperture F2.0 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0709 |
|---|---|
| Format | 4/3" |
| Angle of view (4/3", DxHxV) | 37 x 30 x 22.4 deg |
| Angle of view (1", DxHxV) | 26 x 21 x 16 deg |
| Angle of view (2/3", DxHxV) | 18 x 14.4 x 10.8 deg |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.0 manual iris |
| Back focal length | 18.65 mm |
| M.O.D. | 0.2 m |
| Distortion | -0.56% |
| Filter thread | M40.5 x 0.5 |
Sensor and imaging
| Resolution | 10 MP |
|---|

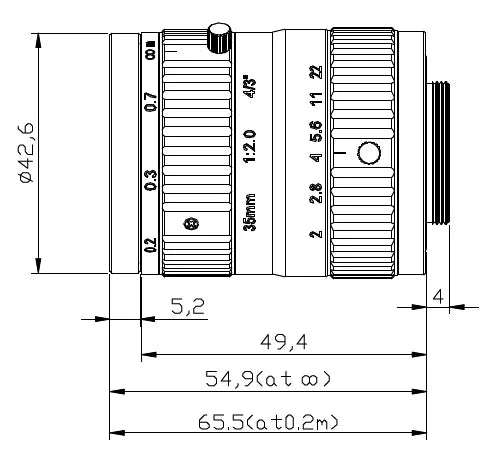

Mechanical
| Size | dia. 42.6 x 65.5 mm |
|---|---|
| Mount | C |
| Weight | 175 g |
| Optical total length | 65.9 mm |
| Shipping weight (estimated) | 0.34 kg |
Other models in the 4/3" machine vision lenses series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0702 | 8.5 mm, 4/3", 10 MP, C-mount | $429.00 | 4 in stock | View |
| LS-FFL-0703 | 12 mm, 4/3", 10 MP, C-mount | $429.00 | 4 in stock | View |
| LS-FFL-0705 | 16 mm, 4/3", 10 MP, C-mount | $519.00 | 5 in stock | View |
| LS-FFL-0707 | 25 mm, 4/3", 10 MP, C-mount | $459.00 | 3 in stock | View |
| LS-FFL-0711 | 50 mm, 4/3", 10 MP, C-mount | $499.00 | 2 in stock | View |
| LS-FFL-0701 | 85 mm, 4/3", 10 MP, C-mount | $569.00 | 4 in stock | View |
| LS-FFL-0704 | 12 mm, 4/3", 20 MP, C-mount | $669.00 | 5 in stock | View |
| LS-FFL-0706 | 16 mm, 4/3", 20 MP, C-mount | $679.00 | 2 in stock | View |
| LS-FFL-0708 | 25 mm, 4/3", 20 MP, C-mount | $689.00 | 5 in stock | View |
| LS-FFL-0710 | 35 mm, 4/3", 20 MP, C-mount | $709.00 | 4 in stock | View |
| LS-FFL-0712 | 50 mm, 4/3", 20 MP, C-mount | $739.00 | 5 in stock | View |
