Telecentric lenses
1.138x, WD 45 mm, 2" Telecentric Lens (LS-S2DM29)
Model LS-S2DM29
- Magnification1.138x
- MountF-mount
- SensorAPS-H
- Working distance45±1
- Aperture7.8
- Field of view29
$1,049.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.22 kg shipping weight
Volume pricing, Net 30 or a formal quote?
1.138x, WD 45 mm, 2" Telecentric Lens. At a glance: magnification 1.138x; working distance 45±1 mm; max sensor size 33 mm (2"); object field of view 29 mm; image-side f/# 7.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S2DM29 |
|---|
Optics
| Object field of view (dia. mm) | 29 |
|---|---|
| Magnification (x) | 1.138 |
| Working distance (mm) | 45±1 |
| Image-side F/# | 7.8 |
| Image-side MTF30 (lp/mm) | >105 |
| Theoretical depth of field (mm) | ±0.5@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 242±1 |

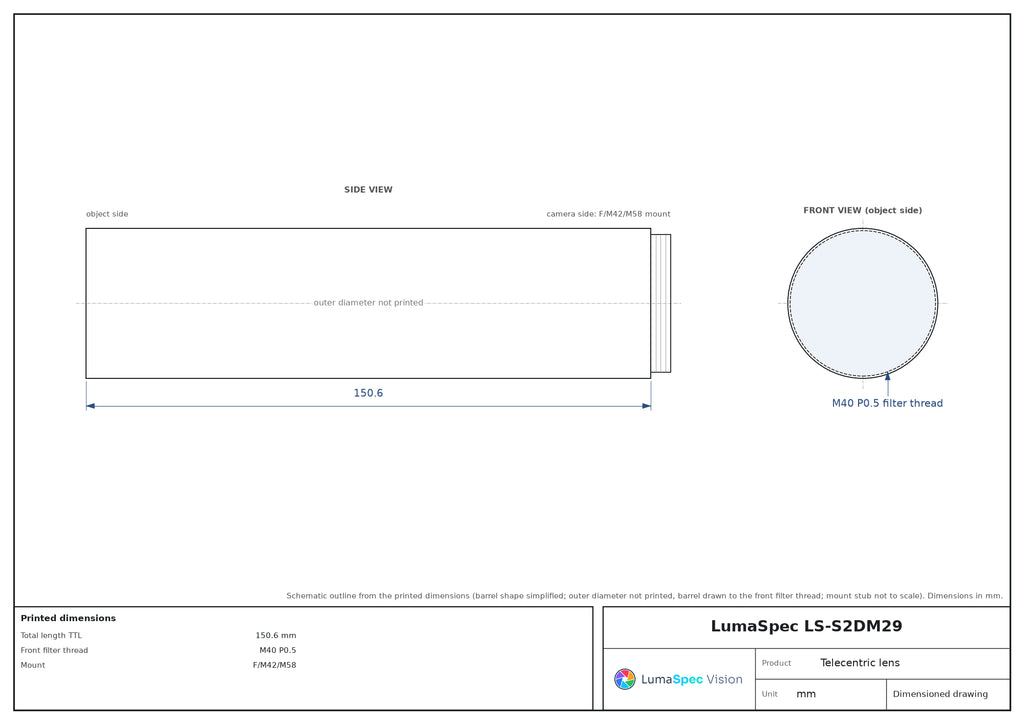

| Total length TTL (mm) | 150.6 |
| Front filter thread | M40 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 33(2") |
|---|
Mechanical
| Mount | F/M42/M58 |
|---|---|
| Net weight (kg) | 0.8 |
| Shipping weight (estimated) | 1.22 kg |
Photo shows a representative model of this series; see the specifications for this model.
