Telecentric lenses
0.511x, WD 110 mm, 1.1", C-mount Telecentric Lens (LS-S11DM36)
Model LS-S11DM36
- Magnification0.511x
- MountC-mount
- Sensor1.1"
- Working distance110±2
- Aperture8.7
- Field of view36
$1,169.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.89 kg shipping weight
Volume pricing, Net 30 or a formal quote?
0.511x, WD 110 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.511x; working distance 110±2 mm; max sensor size 18.4 mm (1.1"); object field of view 36 mm; image-side f/# 8.7.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S11DM36 |
|---|
Optics
| Object field of view (dia. mm) | 36 |
|---|---|
| Magnification (x) | 0.511 |
| Working distance (mm) | 110±2 |
| Image-side F/# | 8.7 |
| Image-side MTF30 (lp/mm) | >85 |
| Theoretical depth of field (mm) | ±3.0@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 295±2 |
| Total length TTL (mm) | 167.7 |
| Front filter thread | M50 P0.5 |
| Measured depth of field as shipped (mm) | 1.2 |
Sensor and imaging
| Max sensor size (dia. mm) | 18.4(1.1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.566 |
| Shipping weight (estimated) | 0.89 kg |

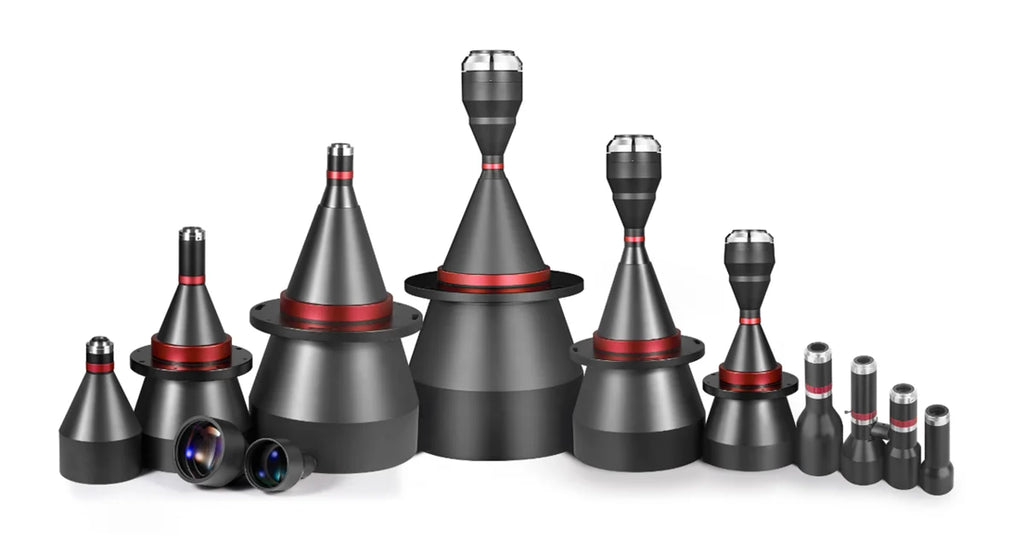

Photo shows a representative model of this series; see the specifications for this model.
