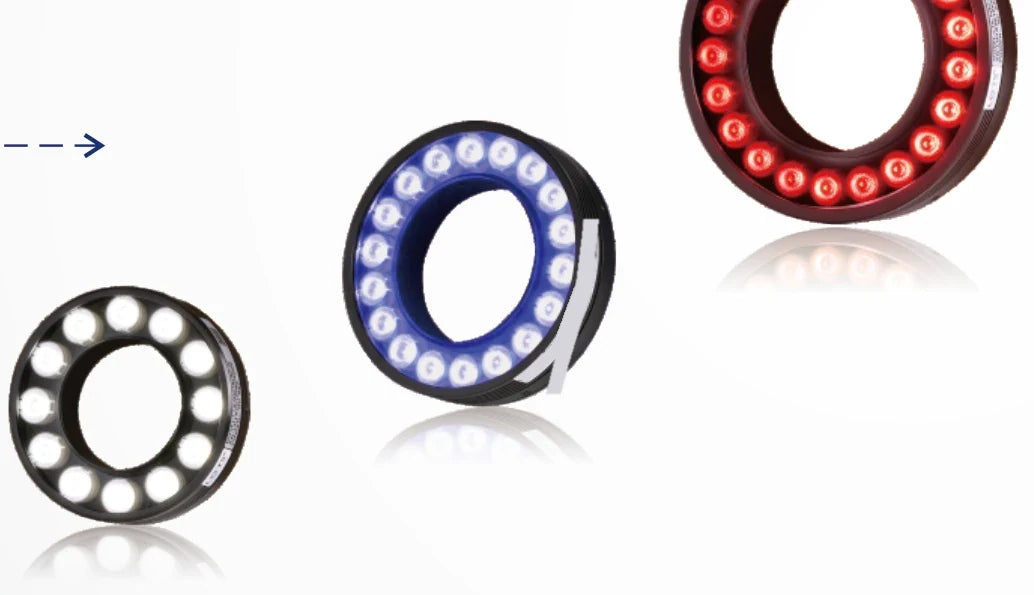

Representative photo of this series
Ring lights
102 mm High power ring light (LS-RNH11090)
Model LS-RNH11090
- ColourRed, Green, Blue, White
- Emitting area102 mm
- Voltage24 V DC
- Power6.3W/9.4W
$179.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High power ring light using high power LEDs in a uniform array, with triple the luminance of a common ring light, good thermal design, steady emission and long life-span; dimensions can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNH11090 |
|---|---|
| Options | Polarized plate, lens shackle |
| FOV | 1-150 mm |
| Comparison | Under the same exposure and aperture, LS-RNH4590-W gives higher luminance, stable effect and higher contrast than ring light LS-RN5590-W for stitch inspection |
| UV / IR | UV & IR light can be customized as required |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 50-250 mm |
|---|
Interfaces and I/O
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
|---|---|
| Cable (mm) | 500 |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting surface dia. (mm) | 102 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V DC |
|---|---|
| Adapted controller | Strobe controller; analog controller; digital controller |
| Voltage (V) | 24 |
| Power R (W) | 4.8 |
| Power G/B/W (W) | 9.6 |
| Power | 6.3W/9.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Diameter range (overview) | dia. 45-300 |
|---|---|
| Weight (g) | 318 |
| Outer diameter (mm) | 110 |
| Inner diameter (mm) | 70 |
| Height (mm) | 20 |
| Mounting holes | 4-M3 depth 4; cable hole dia. 4.2; hole circle dia. 90 |
| Dimension | Outer dia. 110mm,Inner dia. 70mm,Height 24mm |
Other models in the High power ring light (RNH) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNH4590 | 40 mm | $89.00 | 8 in stock | View |
| LS-RNH8490 | 77 mm | $139.00 | 18 in stock | View |
| LS-RNH10090 | 92 mm | $159.00 | 11 in stock | View |
| LS-RNH12090 | 110 mm | $189.00 | 14 in stock | View |
| LS-RNH15090 | 142 mm | $229.00 | 18 in stock | View |
| LS-RNH22090 | 212 mm | $329.00 | 14 in stock | View |
| LS-RNH30090 | 292 mm | $439.00 | 16 in stock | View |
