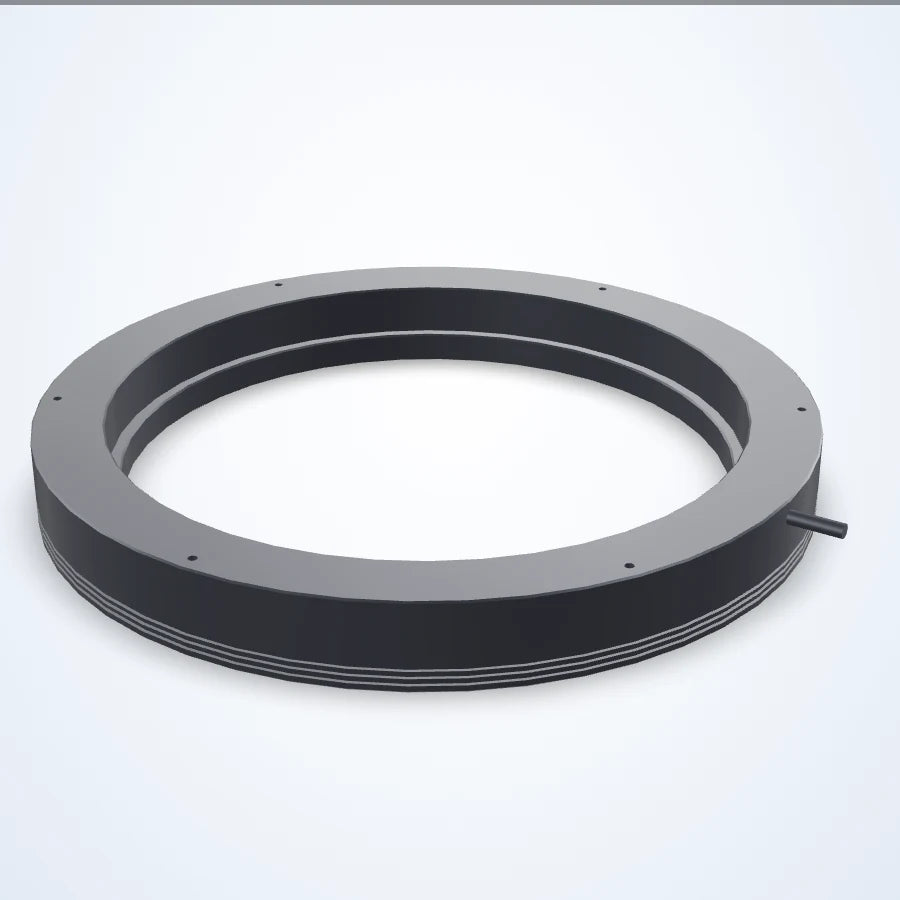

LS-RNG-0575 3D render
  • LS-RNG-0575 3D render

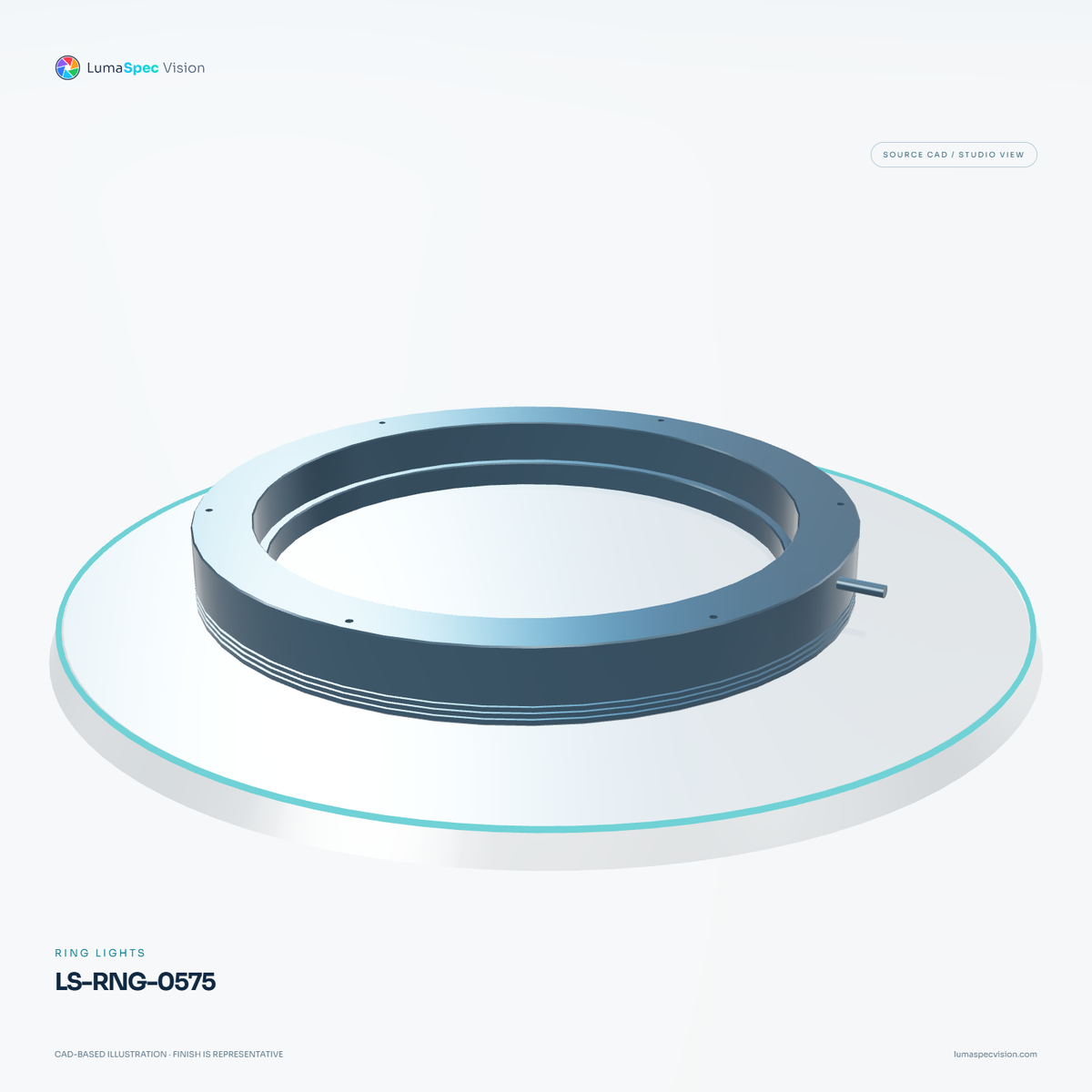

  • LS-RNG-0575 — Ring lights, 3D view 1. CAD-based illustration; finish is representative.

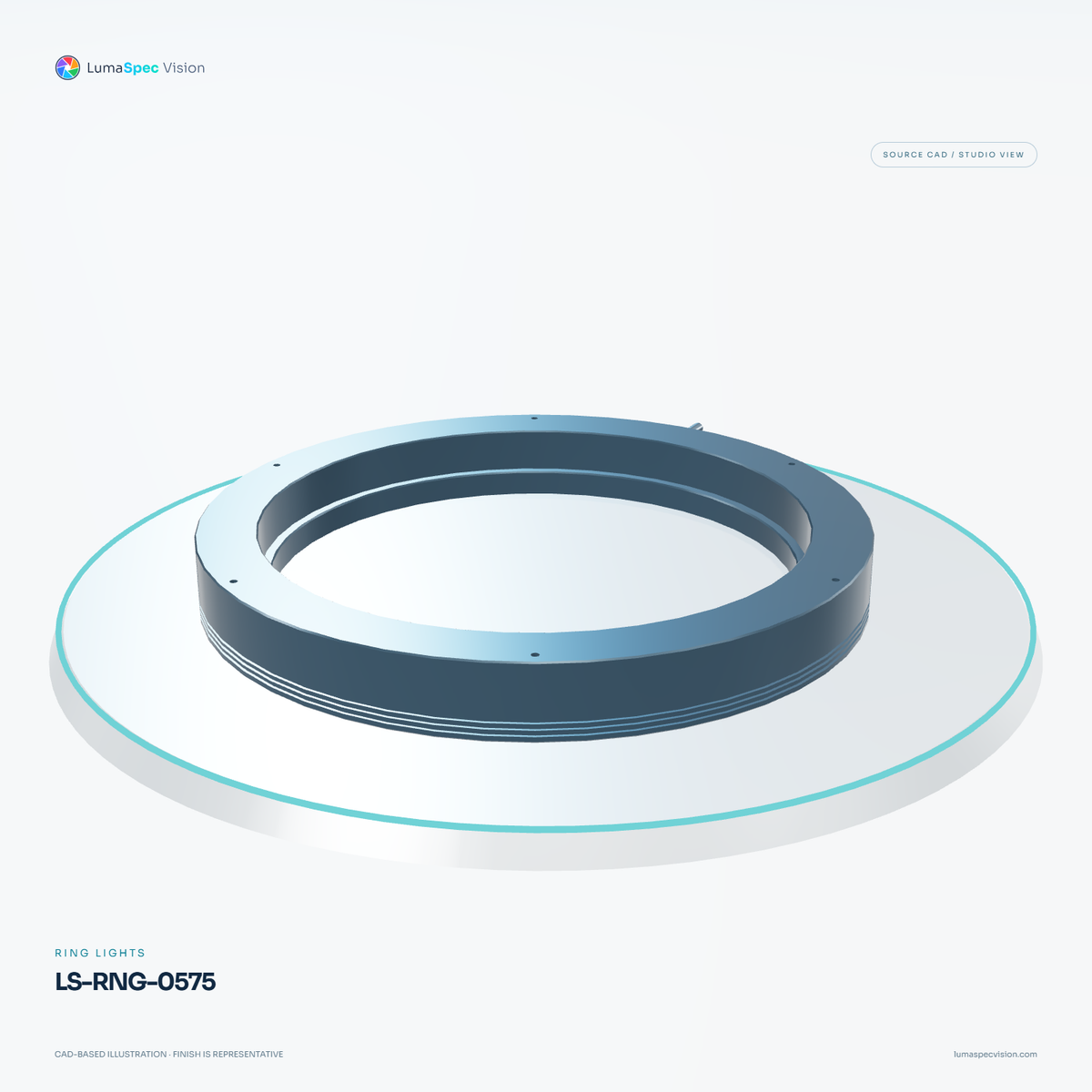

  • LS-RNG-0575 — Ring lights, 3D view 2. CAD-based illustration; finish is representative.

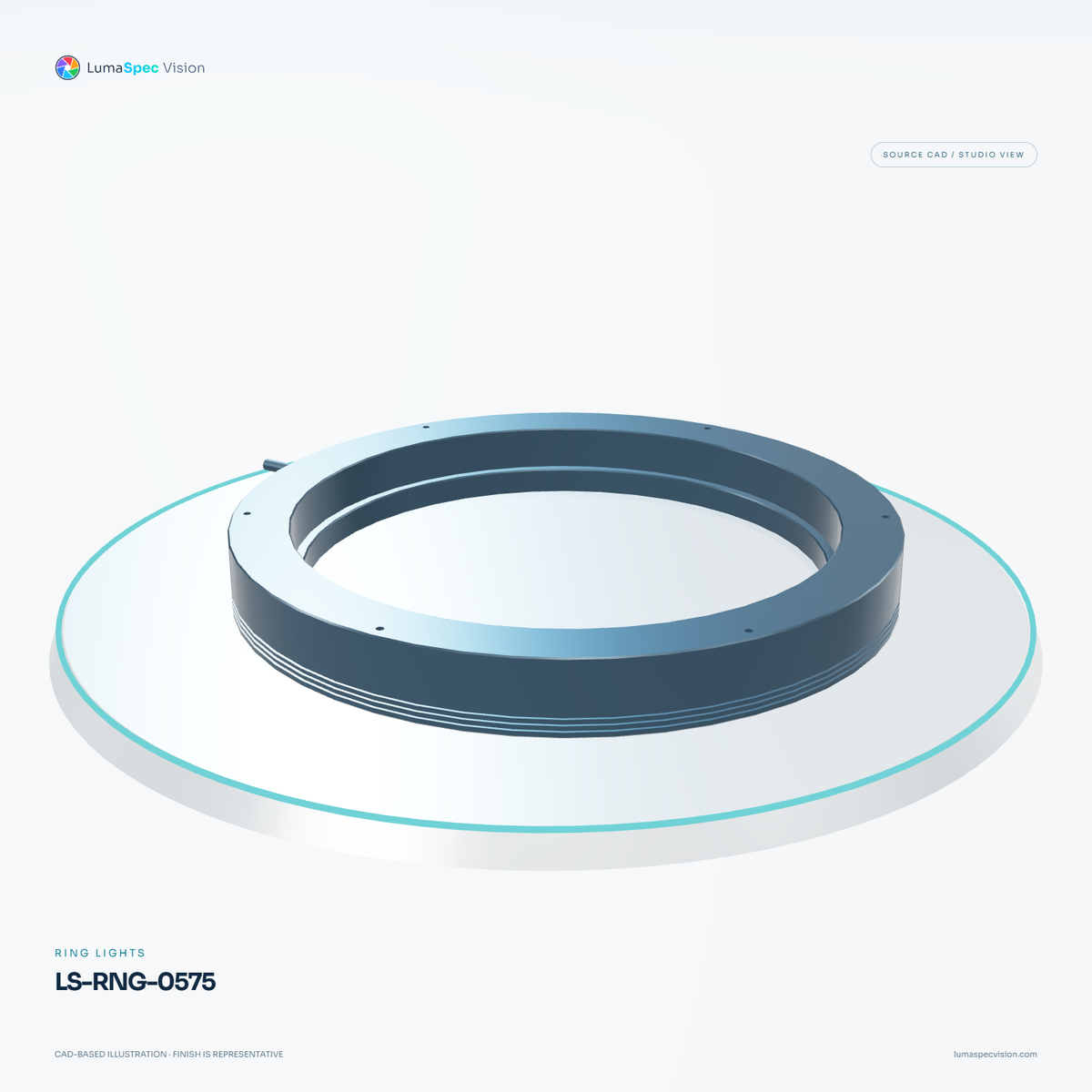

  • LS-RNG-0575 — Ring lights, 3D view 3. CAD-based illustration; finish is representative.

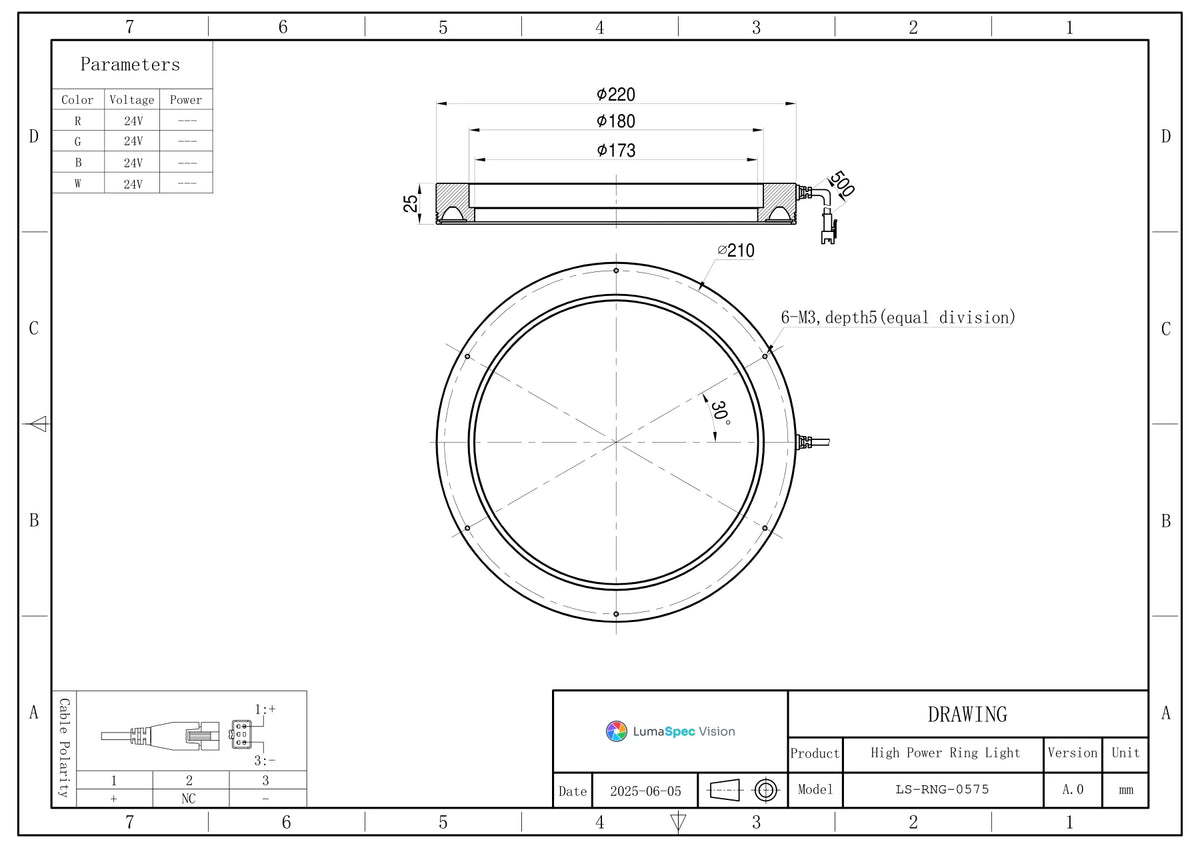

  • LS-RNG-0575 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Ring lights

220 mm OD High-Power LED Ring Light (LS-RNG-0575)

Model LS-RNG-0575-R

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Angle90°
  • TypeStandard
$819.00

Ships in 2-3 weeks

0.6 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

220 mm OD High-Power LED Ring Light (LS-RNG-0575)LS-RNG-0575-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

220 mm OD High-Power LED Ring Light. High power ring light built on a high-power LED array with a condenser lens, giving a more concentrated beam and higher brightness for long-distance, high-brightness lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0575
Angle (°)90
OD x ID x H (mm)220x173x25

Light

LED rows1
ColoursRed, Green, Blue, White
Illumination chartLS-RNG-0572: illuminance (lx) vs working distance (mm); uniformity maps at LWD 80/100/120 mm

Electrical

Voltage (V)24
Power R (W)18.2
Power G/B/W (W)22.8

Mechanical

Shipping weight (estimated)0.60 kg

Mounting and drawing data

drawing : φ220 / φ180 / ID φ173, H 25; 6-M3 depth 5 evenly spaced on φ210 (30°); cable 500 mm

LS-RNG-0575

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-RNG-0575 — Ring lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

OD x ID x H (mm)
220x173x25
Voltage (V)
24
LED rows
1
Angle (°)
90

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
