Ring Light, 105 mm dia., 0°, White (LS-RNG-0408)
  • Ring Light, 105 mm dia., 0°, White (LS-RNG-0408)

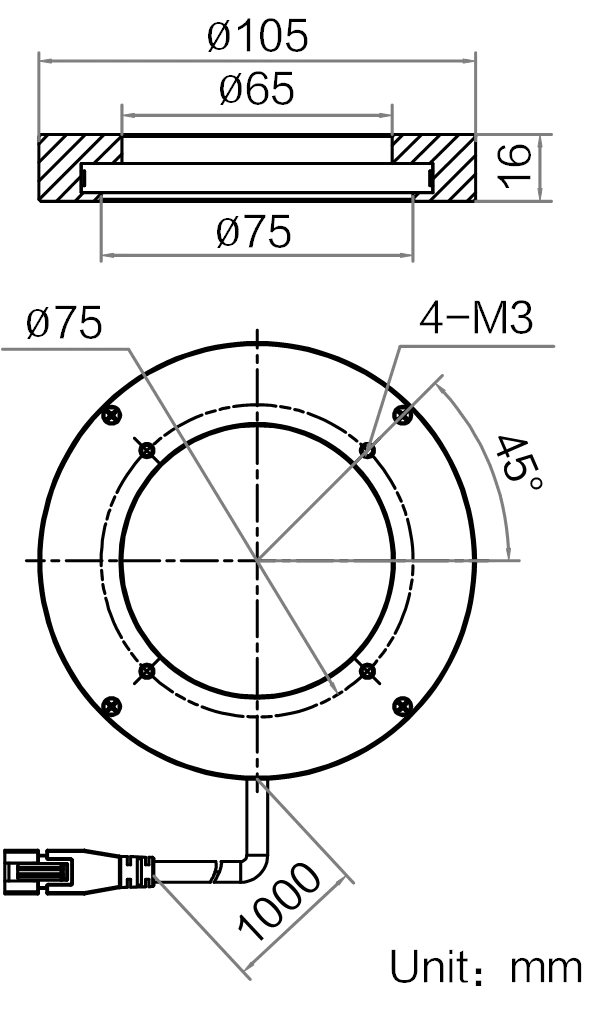

  • LS-RNG-0408 dimensions (mm)

Ring lights

Ring Light, 105 mm dia., 0°, White (LS-RNG-0408)

Model LS-RNG-0408

  • ColourWhite
  • Emitting areaΦ75 mm
  • SizeΦ105 mm × 16 mm
  • Voltage24 VDC
  • Power6.9 W
$279.00

Ships in 2-3 weeks

0.37 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 105 mm dia., 0°, White (LS-RNG-0408)LS-RNG-0408

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 105 mm dia., 0°, White. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0408
Irradiation angle0°

Optics

Best working distance0 ~ 10 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance≥33000 Lux@WD=10 mm
Color temperature6000 ~ 7500K
Emitting area lengthΦ75 mm
LED rows1
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power6.9 W
Input voltage24 VDC

Mechanical

DimensionΦ105 mm × 16 mm
Outer dimensionΦ105 mm
Bore dimensionΦ65 mm
Weight190 g
Shipping weight (estimated)0.37 kg
