Ring Light, 80 mm dia., 90°, White (LS-RNG-0393)
  • Ring Light, 80 mm dia., 90°, White (LS-RNG-0393)

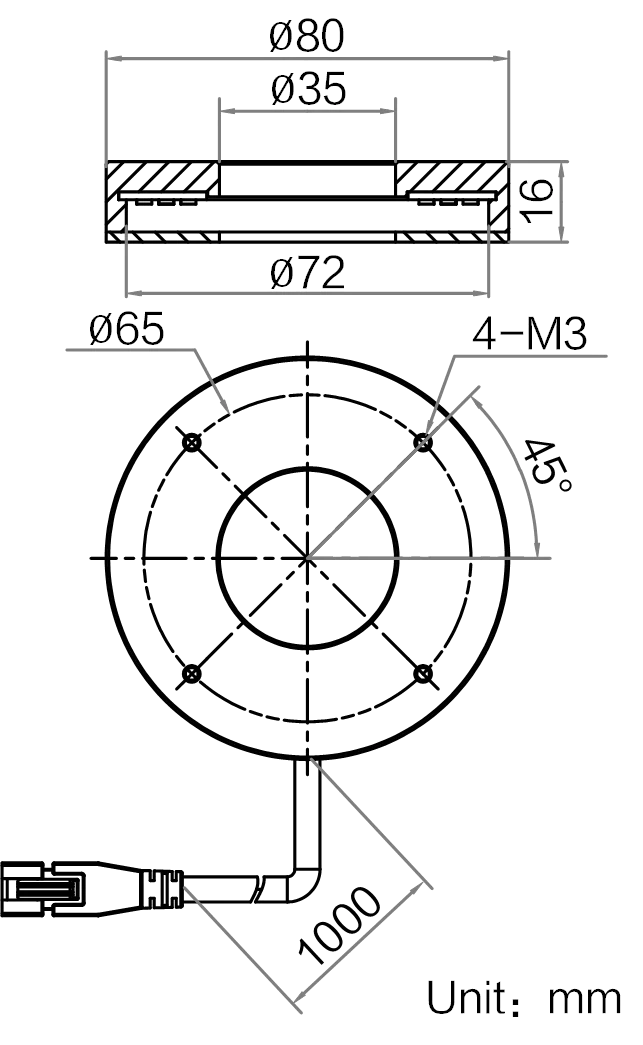

  • LS-RNG-0393 dimensions (mm)

Ring lights

Ring Light, 80 mm dia., 90°, White (LS-RNG-0393)

Model LS-RNG-0393

  • ColourWhite
  • Emitting areaΦ72 mm
  • SizeΦ80 mm × 16 mm
  • Voltage24 VDC
  • Power9.9 W
$239.00

Ships in 2-3 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 80 mm dia., 90°, White (LS-RNG-0393)LS-RNG-0393

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 80 mm dia., 90°, White. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0393
Irradiation angle90°

Optics

Best working distance100 ~ 110 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance≥16500 Lux@WD=100 mm
Color temperature6000 ~ 7500K
Emitting area lengthΦ72 mm
LED rows3
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power9.9 W
Input voltage24 VDC

Mechanical

DimensionΦ80 mm × 16 mm
Outer dimensionΦ80 mm
Bore dimensionΦ35 mm
Weight115 g
Shipping weight (estimated)0.26 kg
