Ring Light, 45 mm dia., 90°, Red (LS-RNG-0359)
  • Ring Light, 45 mm dia., 90°, Red (LS-RNG-0359)

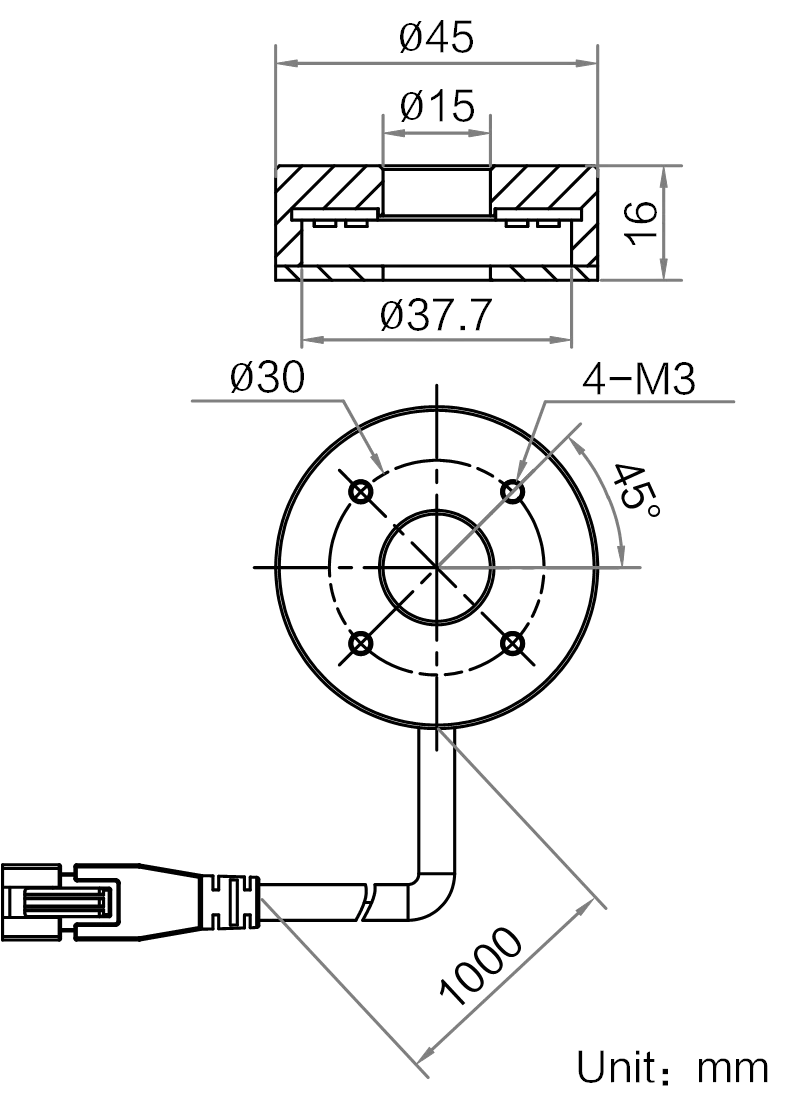

  • LS-RNG-0359 dimensions (mm)

Ring lights

Ring Light, 45 mm dia., 90°, Red (LS-RNG-0359)

Model LS-RNG-0359

  • ColourRed
  • Emitting areaΦ37.5 mm
  • SizeΦ45 mm × 16 mm
  • Voltage24 VDC
  • Power1.9 W
  • Wavelength630 nm
$149.00

Ships in 2-3 weeks

0.15 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 45 mm dia., 90°, Red (LS-RNG-0359)LS-RNG-0359

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 45 mm dia., 90°, Red. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0359
Irradiation angle90°

Optics

Best working distance80 ~ 90 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorRed
Center illuminance≥1900 Lux@WD=100 mm
Wavelength630 nm
Emitting area lengthΦ37.5 mm
LED rows2
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power1.9 W
Input voltage24 VDC

Mechanical

DimensionΦ45 mm × 16 mm
Outer dimensionΦ45 mm
Bore dimensionΦ15 mm
Weight35 g
Shipping weight (estimated)0.15 kg
