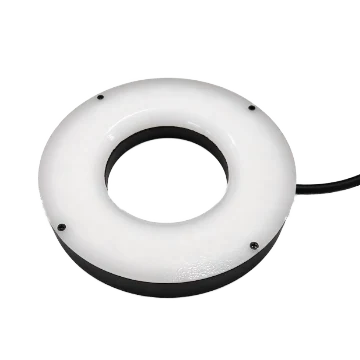

Ring Light, 65 mm dia., 60°, Blue (LS-RNG-0373)
  • Ring Light, 65 mm dia., 60°, Blue (LS-RNG-0373)

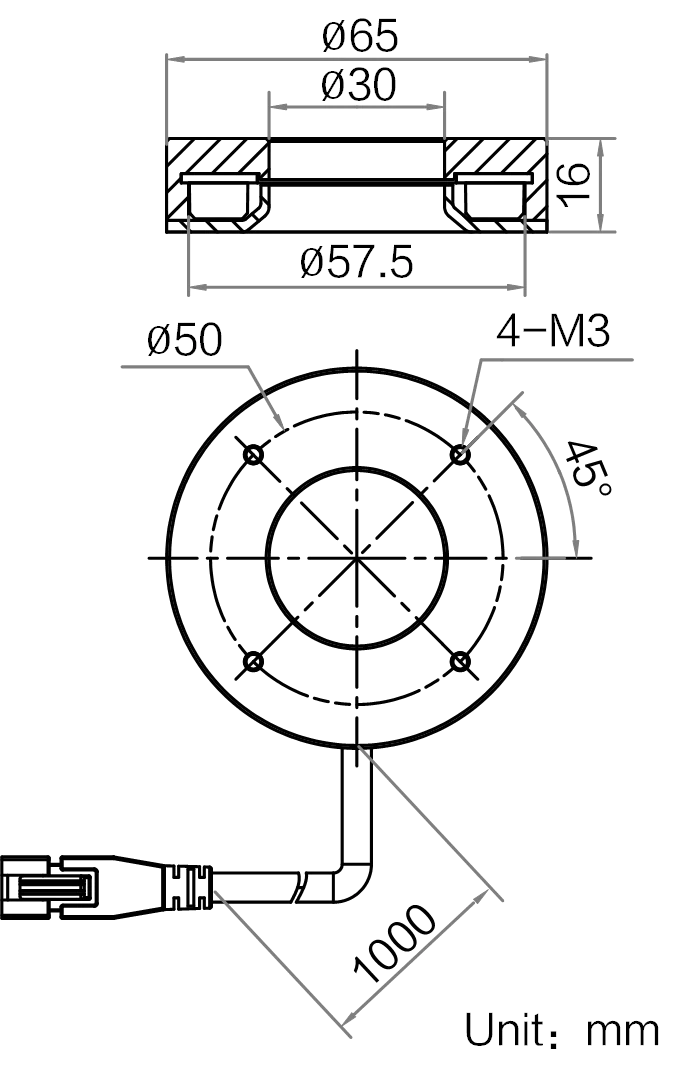

  • LS-RNG-0373 dimensions (mm)

Ring lights

Ring Light, 65 mm dia., 60°, Blue (LS-RNG-0373)

Model LS-RNG-0373

  • ColourBlue
  • Emitting areaΦ57.5 mm
  • SizeΦ65 mm × 16 mm
  • Voltage24 VDC
  • Power7.7 W
  • Wavelength460 nm
$219.00

Ships in 2-3 weeks

0.21 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 65 mm dia., 60°, Blue (LS-RNG-0373)LS-RNG-0373

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 65 mm dia., 60°, Blue. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0373
Irradiation angle60°

Optics

Best working distance60 ~ 70 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥1600 Lux@WD=100 mm
Wavelength460 nm
Emitting area lengthΦ57.5 mm
LED rows1
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power7.7 W
Input voltage24 VDC

Mechanical

DimensionΦ65 mm × 16 mm
Outer dimensionΦ65 mm
Bore dimensionΦ30 mm
Weight80 g
Shipping weight (estimated)0.21 kg
