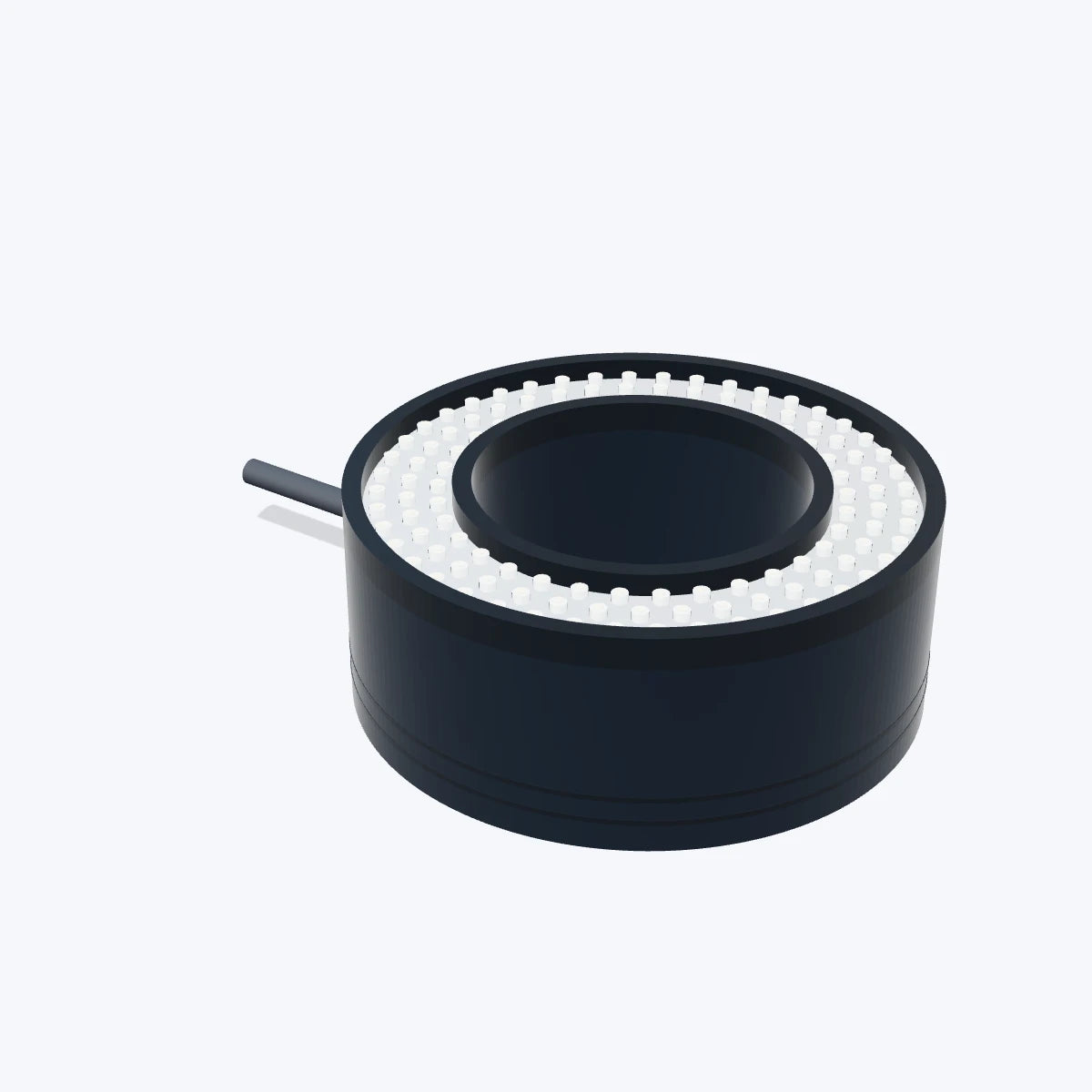

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Ring lights
50 mm dia. infrared light, power 1.0 W (LS-RNG-0338)
Model LS-RNG-0338
- ColourInfrared
- Voltage24 V
- Power1.0 W
- WavelengthIR: 850-940 nm
$159.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Infrared light with strong penetration, wavelength optional 850 / 940 nm, used with near-infrared sensitive cameras and with infrared glass filters for strong ambient light applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0338 |
|---|---|
| Customizable | shape, combined light, multi-area control, colour and colour temperature, cable length, installation method, emitting angle |
| Light type | Ring |
| Outer dia. (mm) | 50 |
| Inner dia. (mm) | 28.5 |
Interfaces and I/O
| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Peak wavelength | IR: 850-940 nm |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Strobe controller, analog controller, digital controller |
| Power (W) | 1.0 |

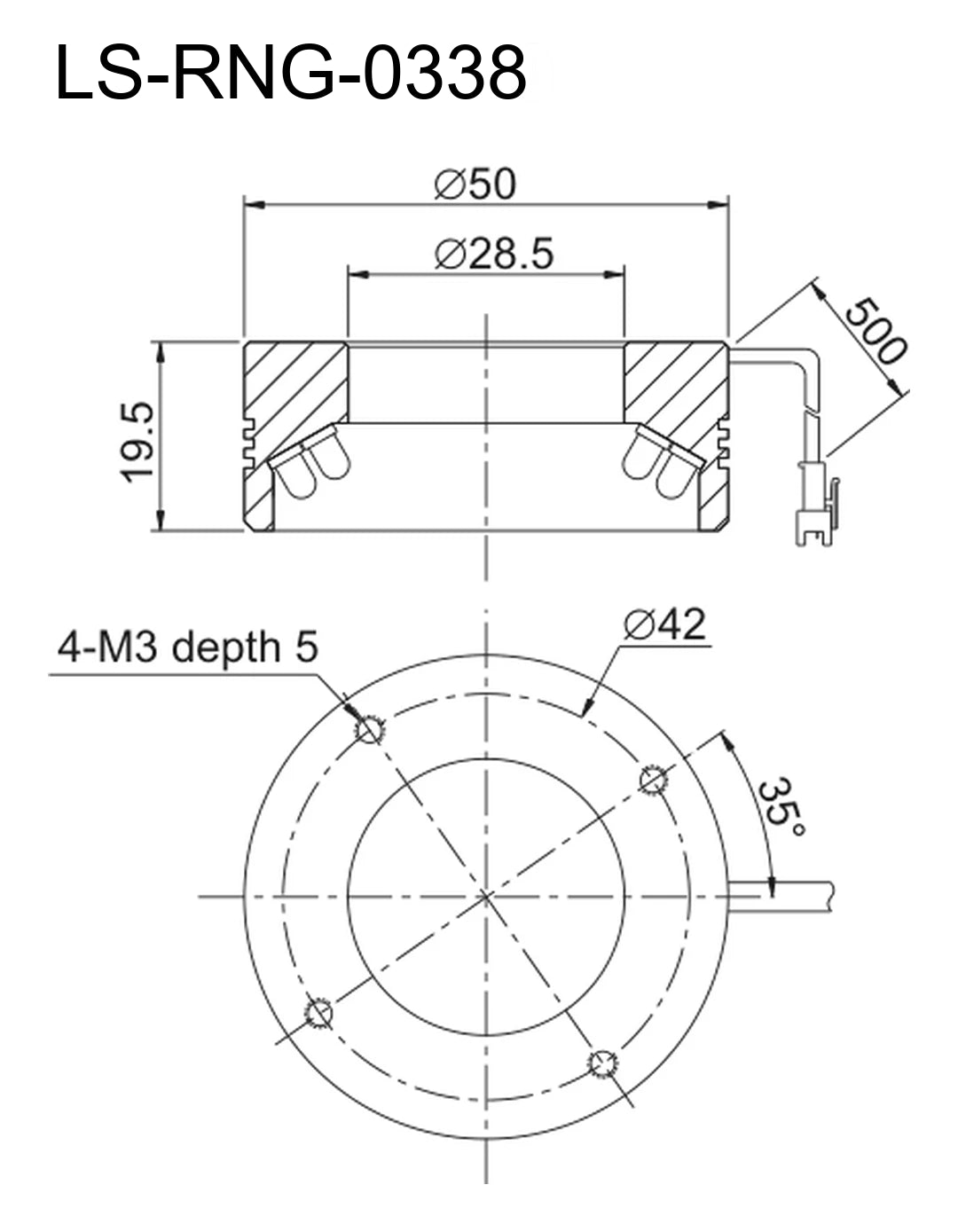

Mechanical
| Weight (g) | 57 |
|---|---|
| Height (mm) | 19.5 |
| Mounting | 4-M3 depth 5 on dia. 42 |
