Bar lights

90 x 16 mm Infrared light (LS-BAR-0921)

Model LS-BAR-0921

ColourInfrared
Emitting area90 x 16 mm
Voltage24 V
Power1.4 W
WavelengthIR: 850-940 nm

$209.00

Ships in 2-3 weeks

0.3 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Infrared light with strong penetration, wavelength optional 850 / 940 nm, used with near-infrared sensitive cameras and with infrared glass filters for strong ambient light applications.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0921
Customizable	shape, combined light, multi-area control, colour and colour temperature, cable length, installation method, emitting angle
Light type	Bar

Interfaces and I/O

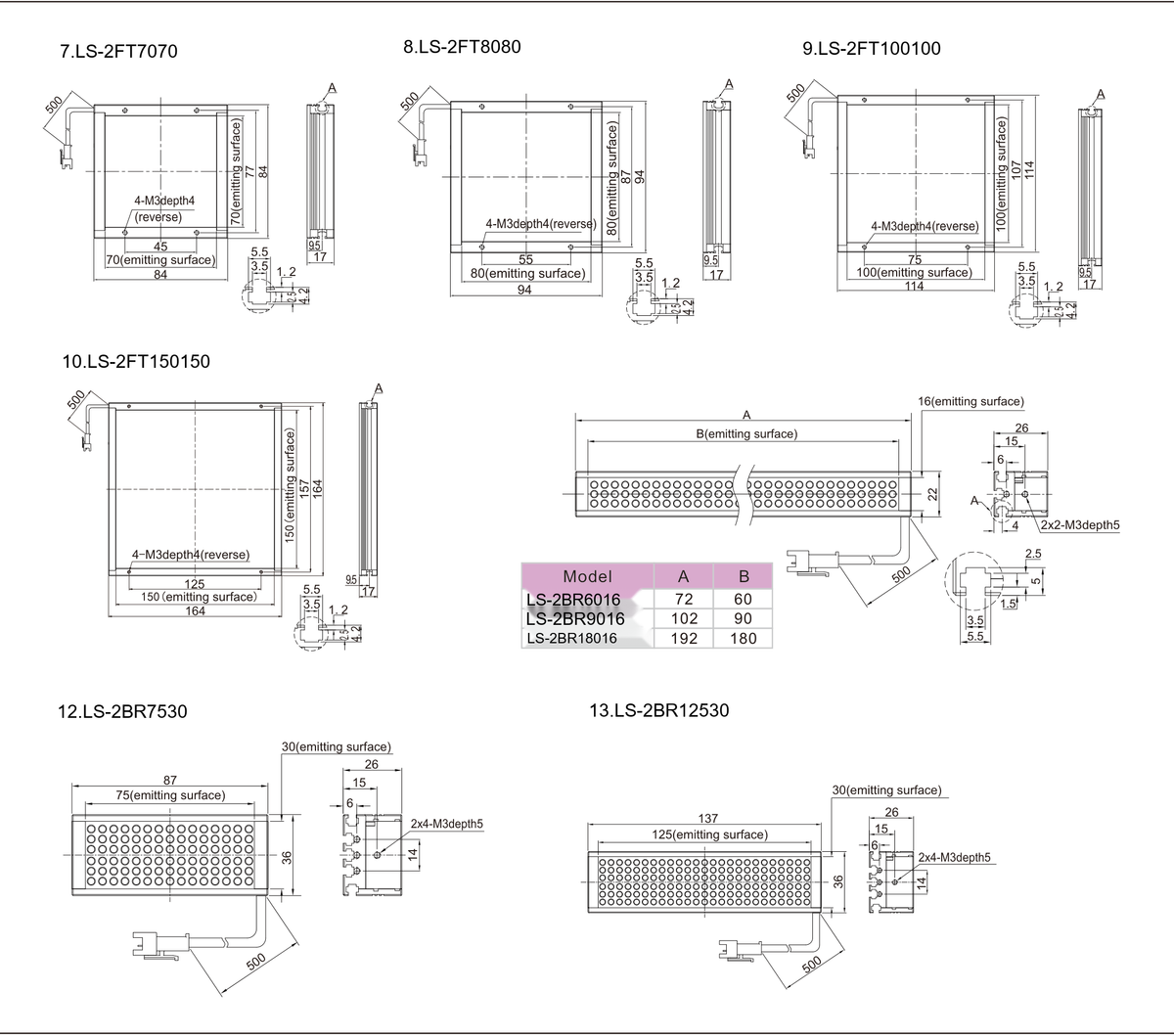

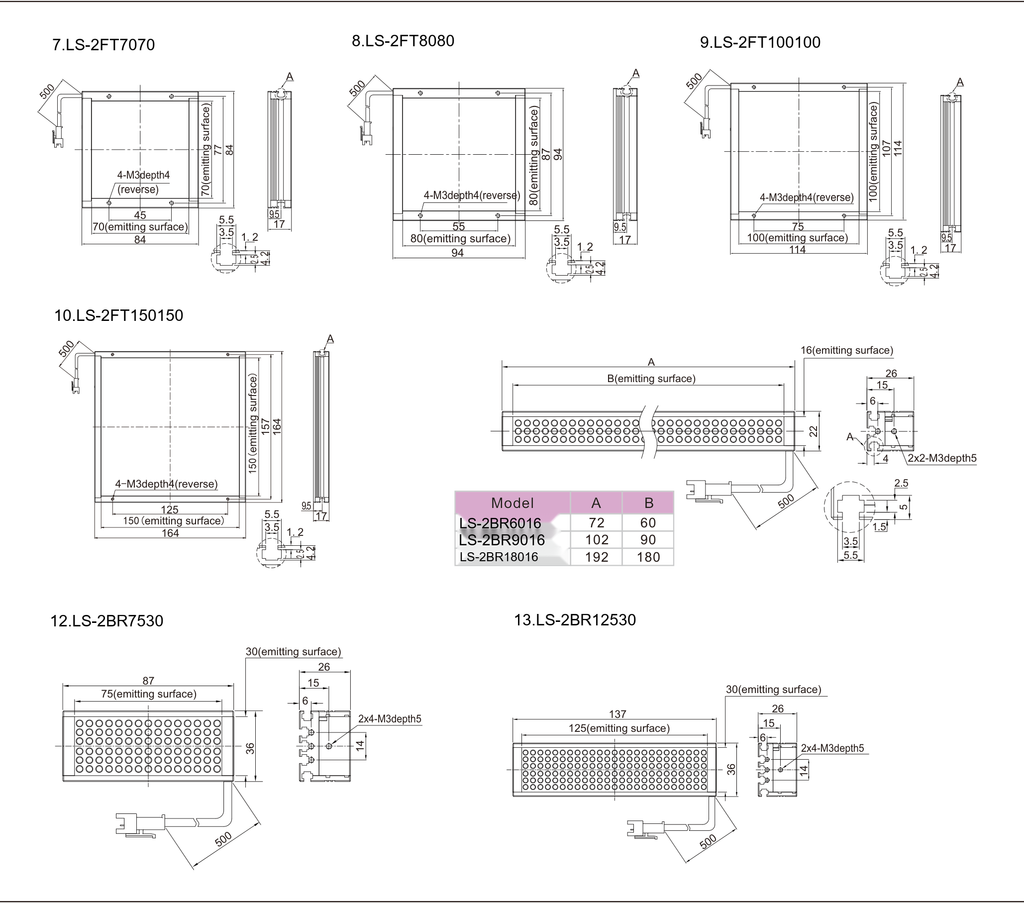

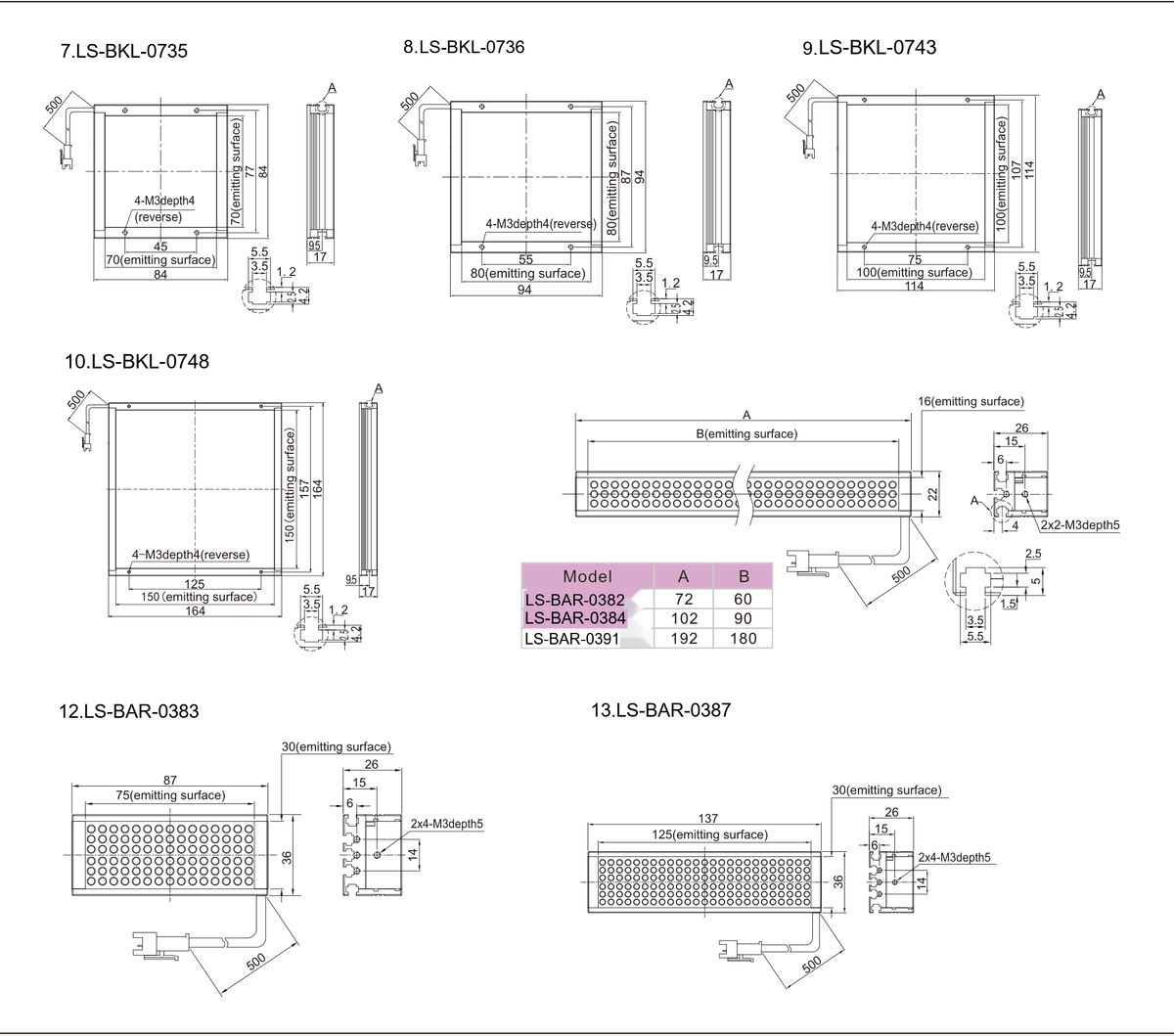

Cable (mm)	500 (drawings)
Extension cable options	PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)

Light

Custom wavelengths	UV & IR light can be customized as required
Peak wavelength	IR: 850-940 nm
Emitting surface (mm)	90 x 16

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V
Adapted controller	Strobe controller, analog controller, digital controller
Power (W)	1.4

Mechanical

Weight (g)	105

Photo shows the visible-light version of this light; this model emits infrared light - see the specifications.
