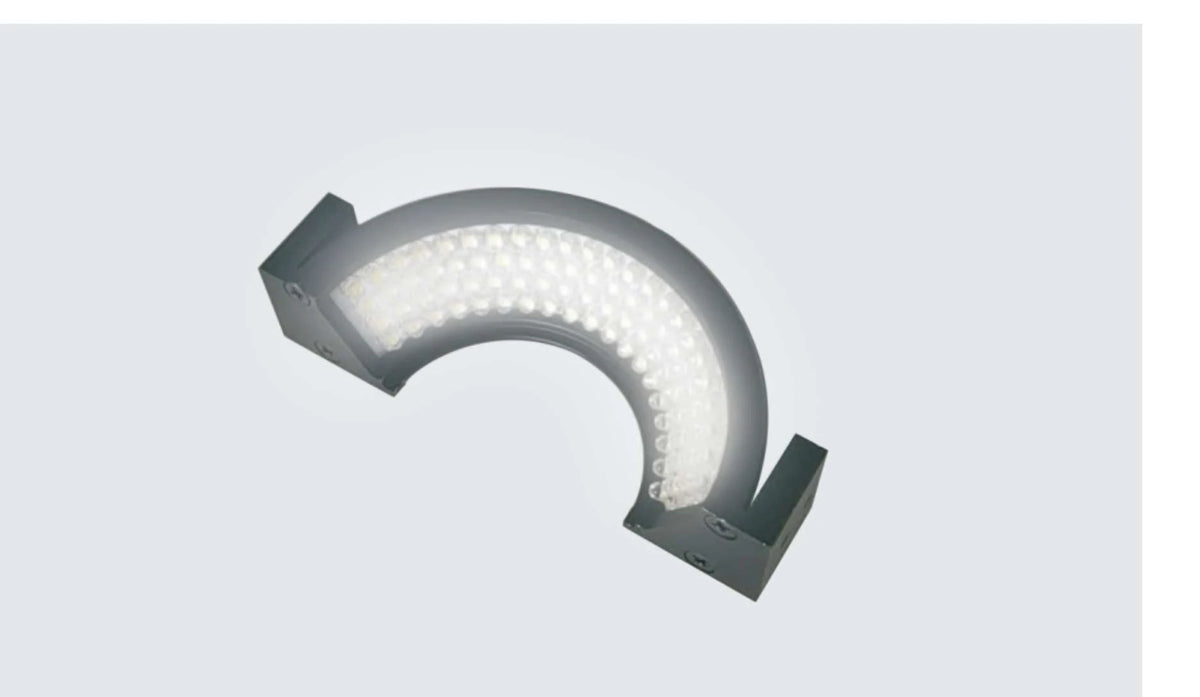

Representative photo of this series
Ring lights
Half-ring light, outer diameter 165 mm (LS-RNG-0337)
Model LS-RNG-0337
- ColourRed, Green, Blue, White
- Power5 W
- Angle0°
- TypeStandard
$419.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Half-ring light with densely arranged LEDs for higher brightness and uniformity; the special half-ring design gives matching illumination for half-ring workpieces and ultra-low-angle lighting; one or more can be used as the situation requires.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0337 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Angle (deg) | 0 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0508, -2T |
|---|---|
| Power (W) | 5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0508 |

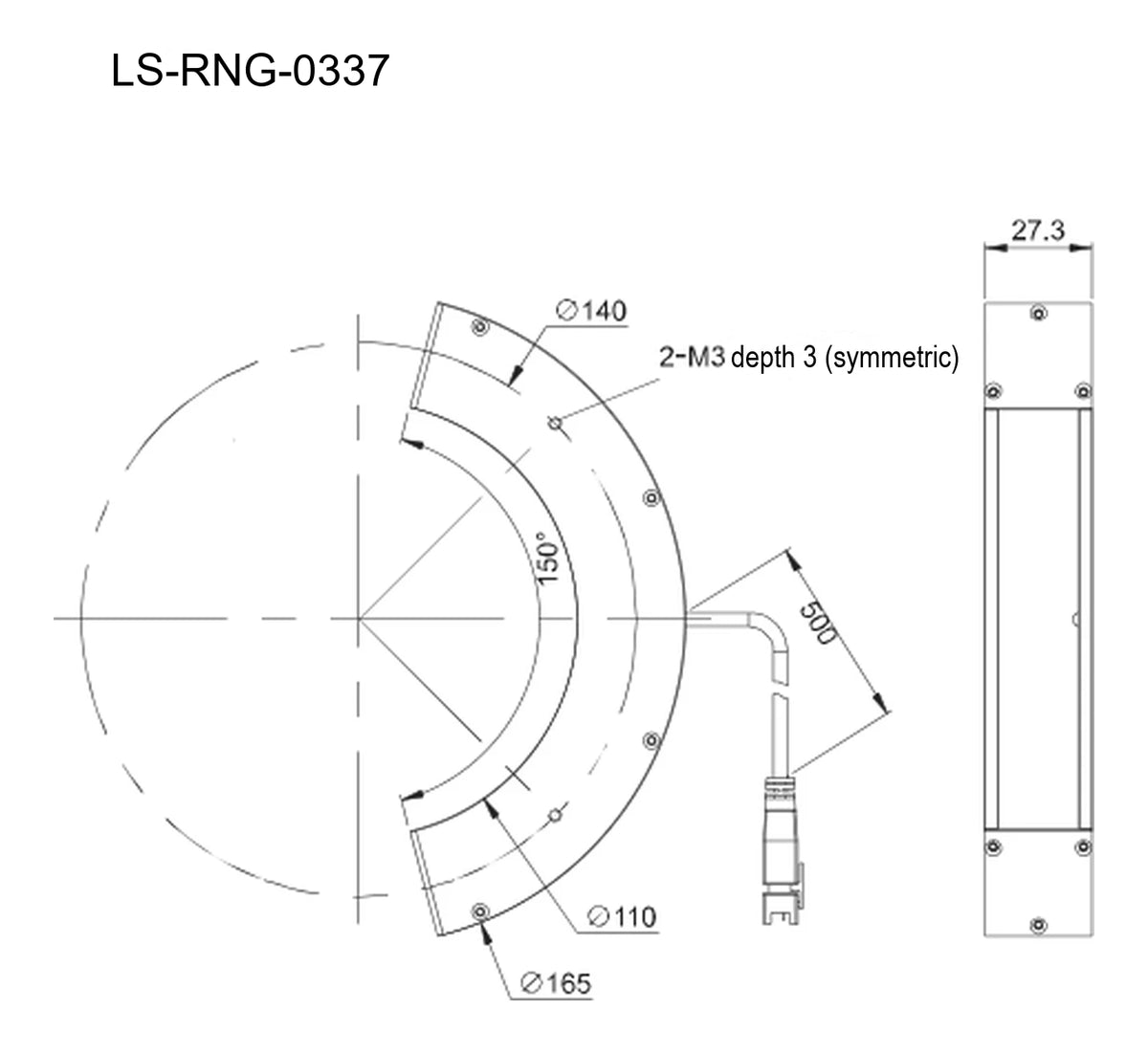

Mechanical
| Outer diameter (mm) | 165 |
|---|---|
| Inner diameter (mm) | 110 |
| Height (mm) | 27.3 |
| Shipping weight | 0.50 kg |
Other models in the Half-ring light (LS-RNG-S57) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0331 | Red, Green, Blue, White · 1 W | $119.00 | 15 in stock | View |
| LS-RNG-0332 | Red, Green, Blue, White · 4.5 W | $149.00 | 12 in stock | View |
| LS-RNG-0329 | Red, Green, Blue, White · 3.5 W | $169.00 | 14 in stock | View |
| LS-RNG-0330 | Red, Green, Blue, White · 1 W | $169.00 | 15 in stock | View |
| LS-RNG-0333 | Red, Green, Blue, White · 3.5 W | $249.00 | 12 in stock | View |
| LS-RNG-0334 | Red, Green, Blue, White · 4 W | $249.00 | 11 in stock | View |
| LS-RNG-0335 | Red, Green, Blue, White · 3.5 W | $269.00 | 14 in stock | View |
| LS-RNG-0336 | Red, Green, Blue, White · 4.5 W | $319.00 | 15 in stock | View |
