Representative photo of this series
Ring lights
Half-ring light, outer diameter 100 mm (LS-RNG-0335)
Model LS-RNG-0335
- ColourRed, Green, Blue, White
- Power3.5 W
- Angle30°
- TypeStandard
$269.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Half-ring light with densely arranged LEDs for higher brightness and uniformity; the special half-ring design gives matching illumination for half-ring workpieces and ultra-low-angle lighting; one or more can be used as the situation requires.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0335 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Angle (deg) | 30 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0508, -2T |
|---|---|
| Power (W) | 3.5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0508 |

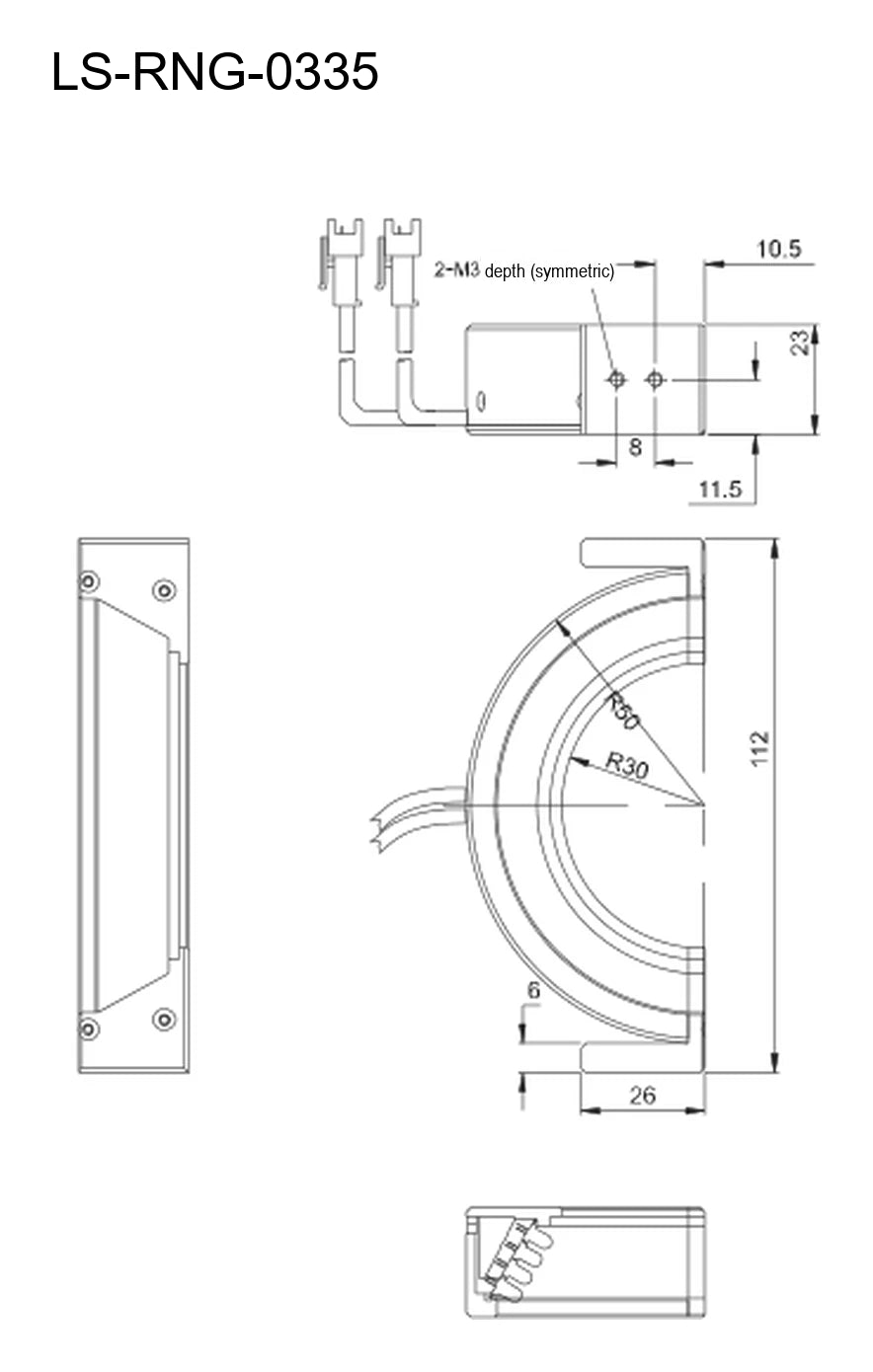

Mechanical
| Outer diameter (mm) | 100 |
|---|---|
| Inner diameter (mm) | 60 |
| Height (mm) | 23 |
| Shipping weight | 0.50 kg |
