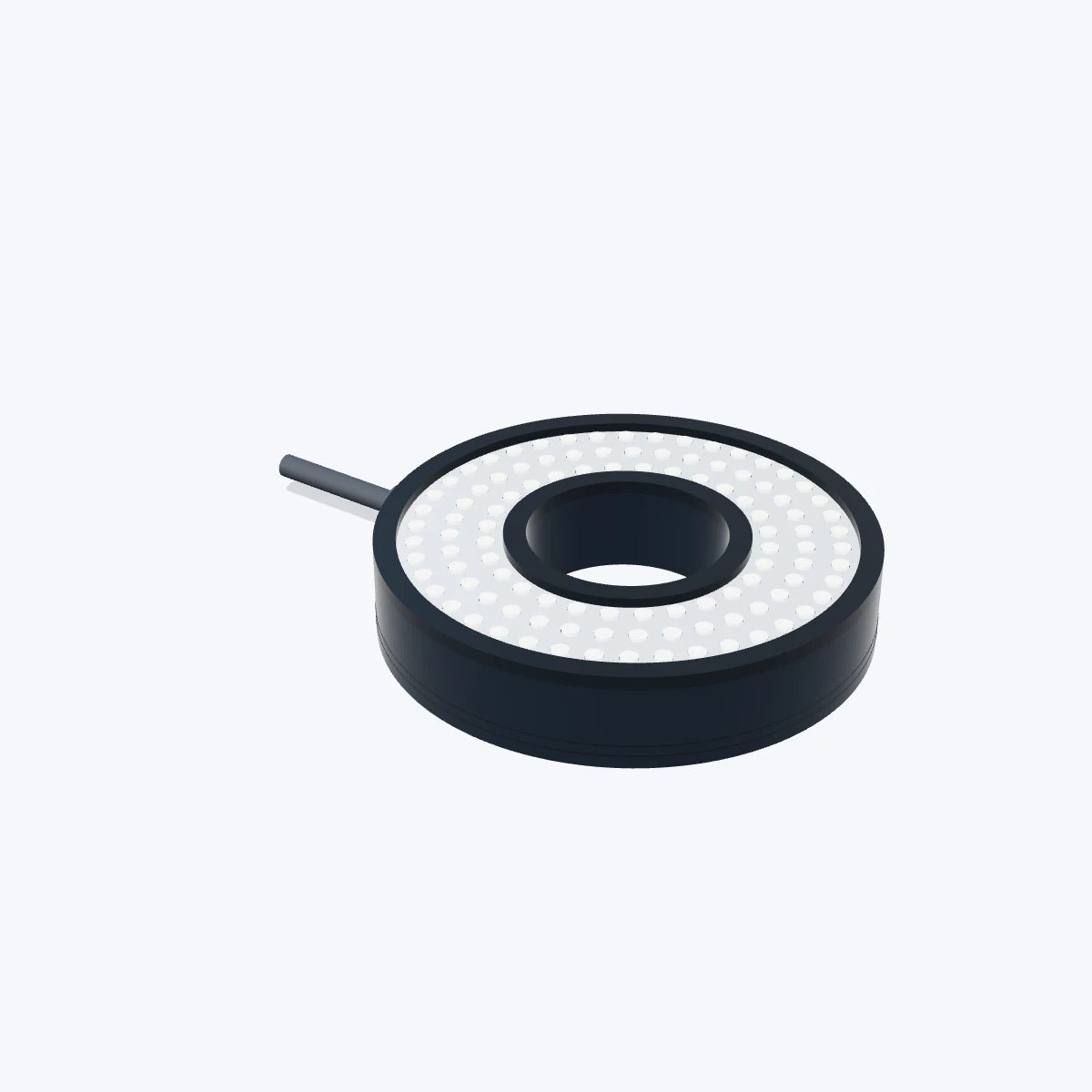

Representative photo of this series
Ring lights
100 x 40 mm ring light, 90° (LS-RNG-0187)
Model LS-RNG-0187
- ColourRed, Blue, Green, White
- SizeOut dia. 100,Inner dia. 40,Height 20mm
- Voltage24V
- Power7.3W/8.7W
- Angle90°
$269.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light is made of high brightness LED array, easy to install, diffuser and multiple angle models can be optional.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0187 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Angle | 90° |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

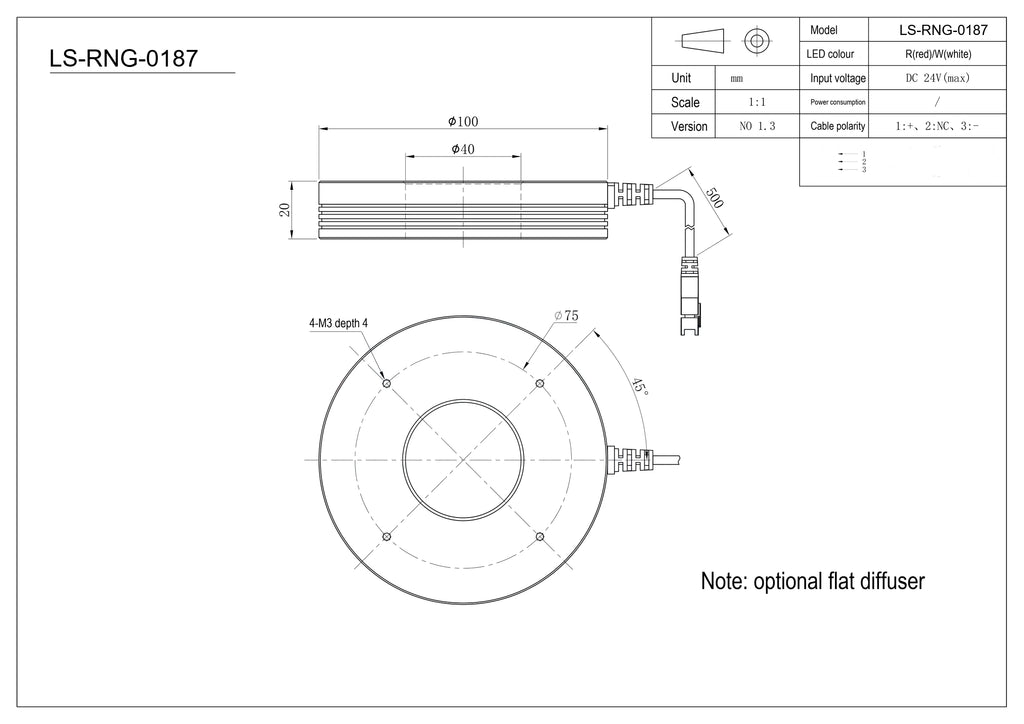

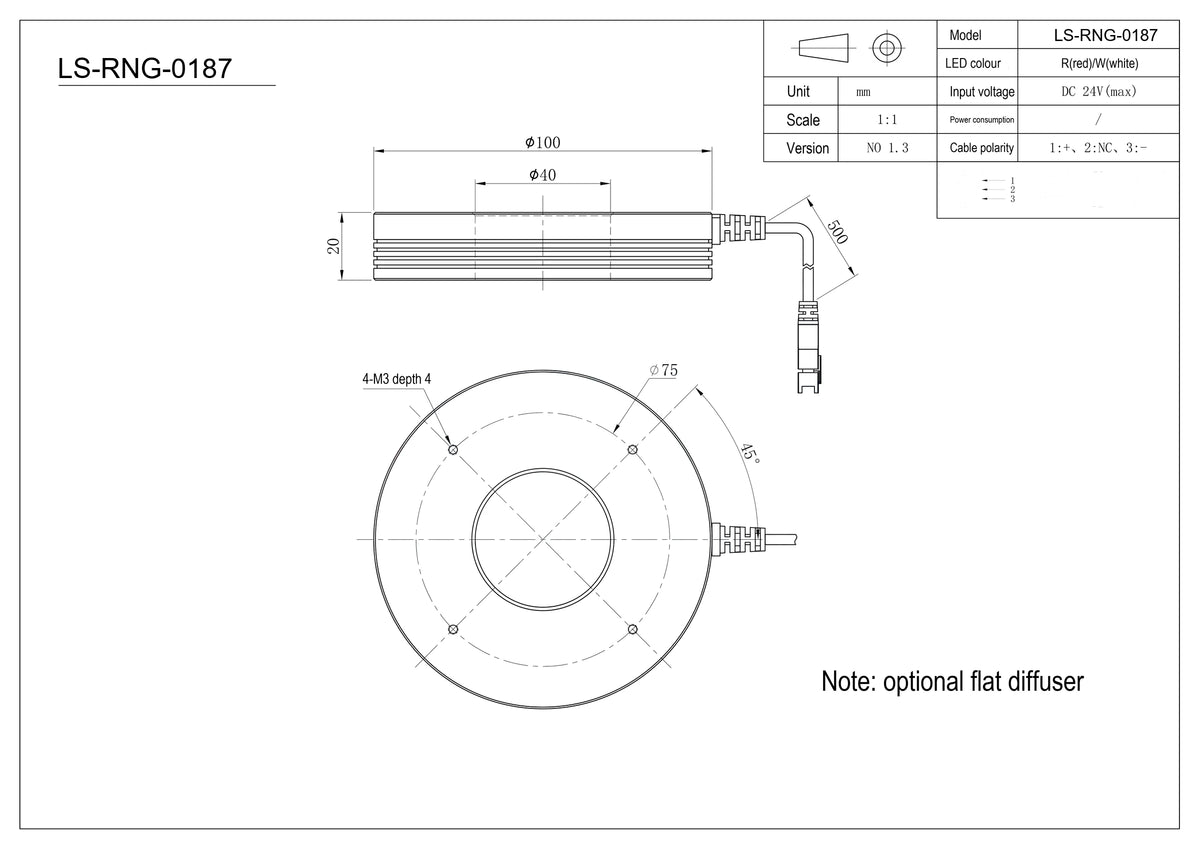

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Diffuser | Flat diffuser plate optional |
Electrical
| Voltage | 24V |
|---|---|
| Power | 7.3W/8.7W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | Out dia. 100,Inner dia. 40,Height 20mm |
|---|---|
| Mounting holes | 4-M3 depth 4 |
| Shipping weight | 0.50 kg |
