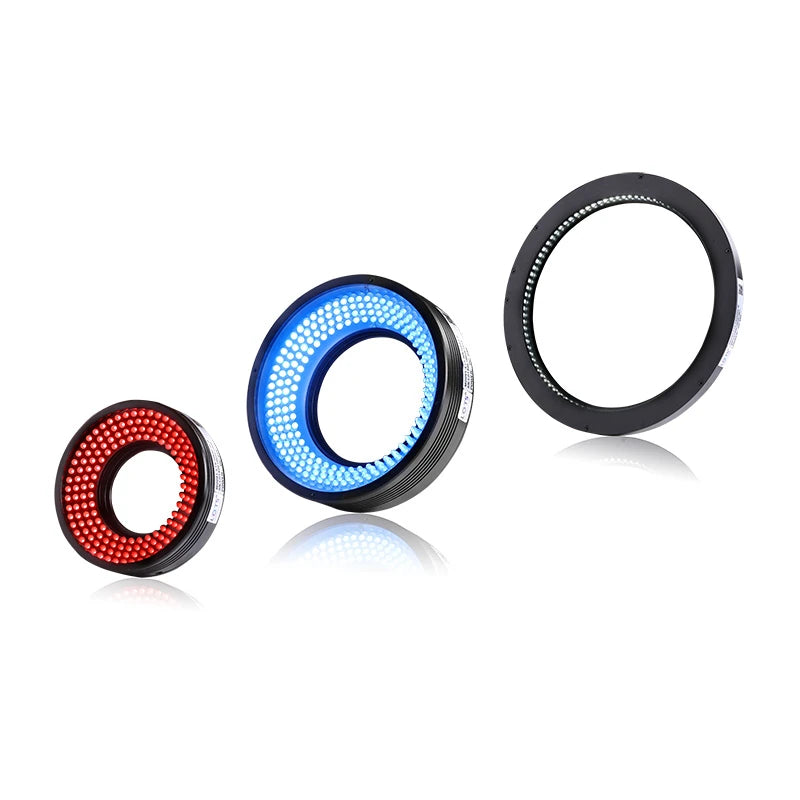

Representative photo of this series
Ring lights

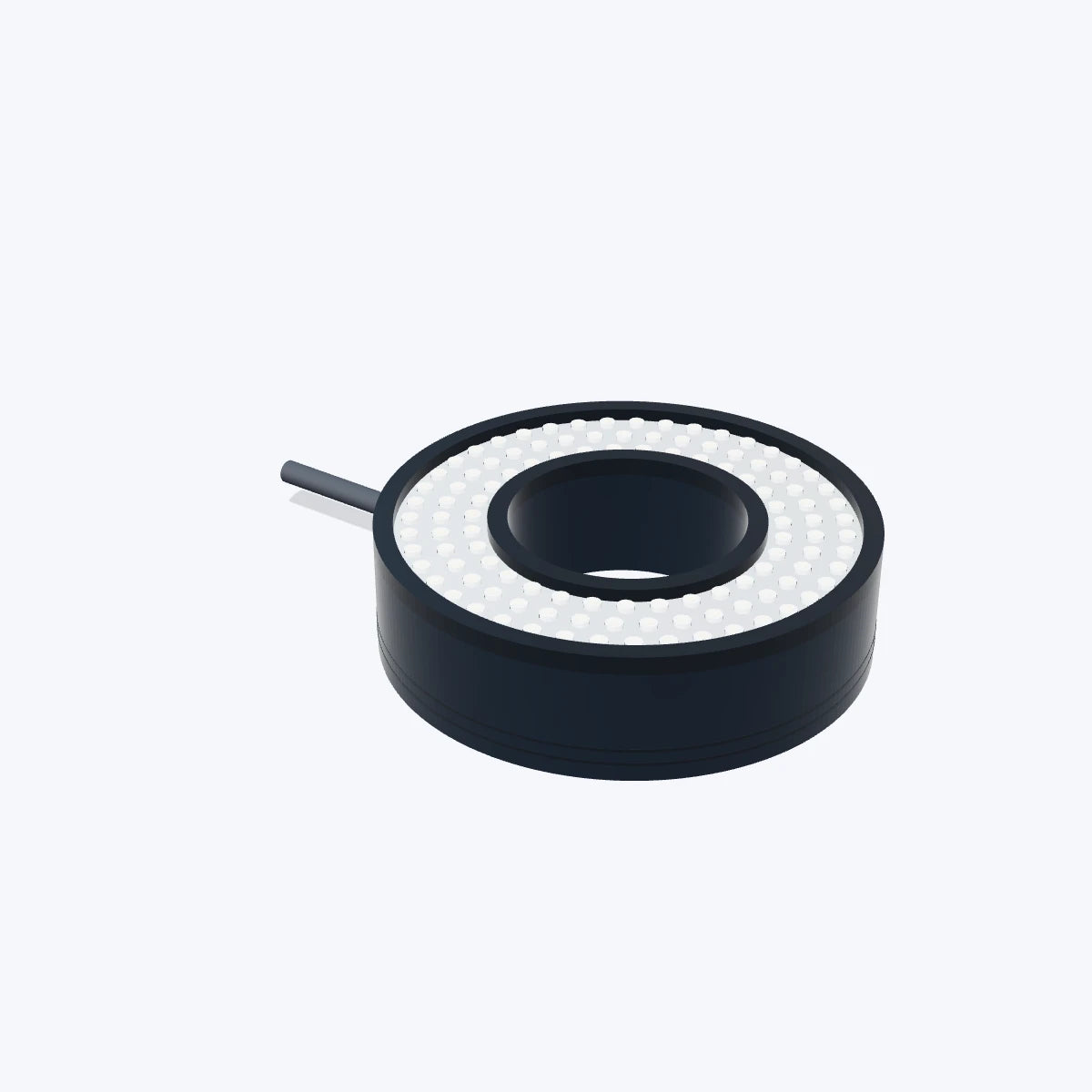

74 x 35 mm ring light, 60° (LS-RNG-0179)
Model LS-RNG-0179
- ColourRed, Blue, Green, White
- SizeOut dia. 74,Inner dia. 35,Height 20mm
- Voltage24V
- Power3.2W/4.2W
- Angle60°
$219.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light is made of high brightness LED array, easy to install, diffuser and multiple angle models can be optional.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0179 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Angle | 60° |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

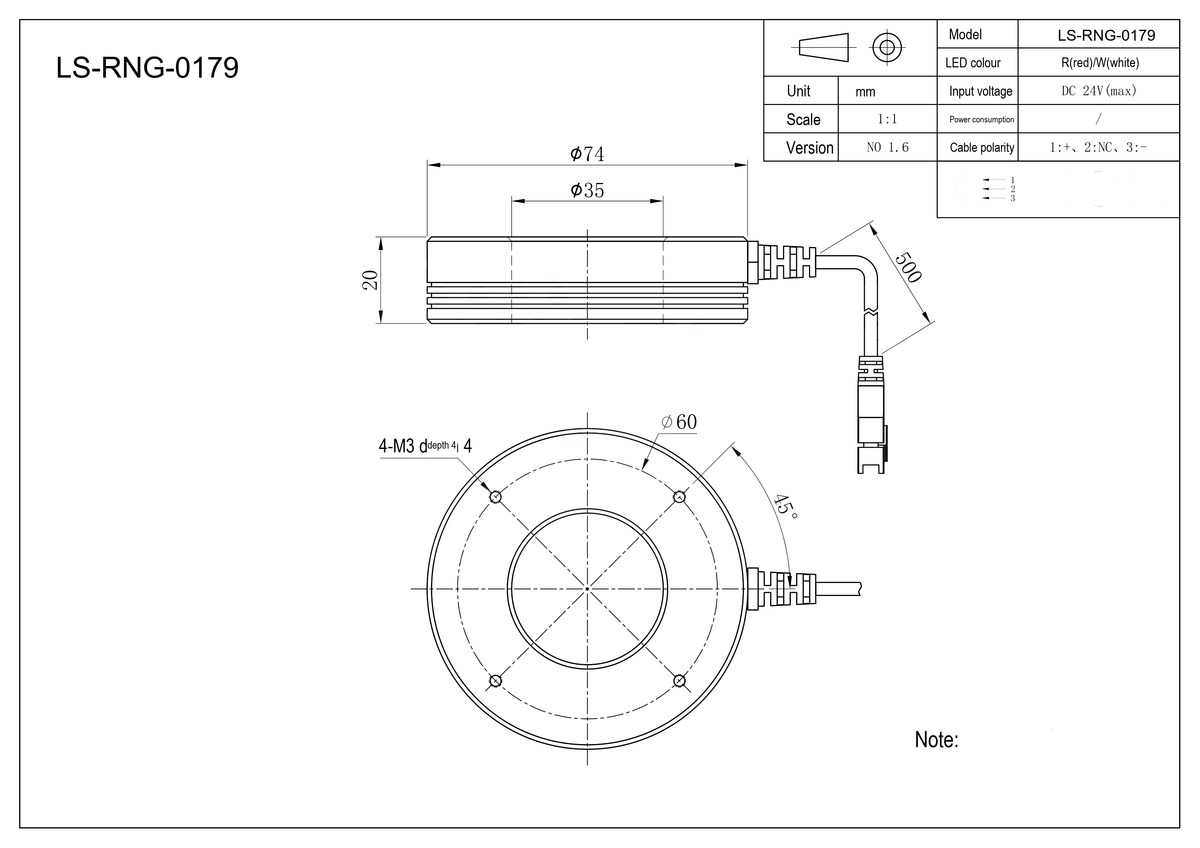

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Diffuser | Diffuser plate optional |
Electrical
| Voltage | 24V |
|---|---|
| Power | 3.2W/4.2W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | Out dia. 74,Inner dia. 35,Height 20mm |
|---|---|
| Mounting holes | 4-M3 depth 4 |
| Shipping weight | 0.50 kg |
