Dark field ring light, 323.1 mm (LS-RNG-0054)
Model LS-RNG-0054
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- Angle25 Degree
- TypeLow-angle
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 10 available
Configuration LS-RNG-0054-01 $1,959.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, driver location, intensity control, strobe trigger input below (10 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0054 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable, Strobe, Strobe – Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | 25 Degree |
|---|---|
| Diffused | Not Diffused |
Environment and compliance
| Operating temperature | up to 45 °C |
|---|---|
| IP rating | IP68 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Max strobe duration | 0 ms |
| Maximum constant on current (mA) | 1480 / 1800 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 1480 / 1800 (by configuration) |
| Maximum input power constant on (W) | 35.5 / 43.2 (by configuration) |
| Maximum input power overcurrent strobe (W) | 36 / 43 (by configuration) |
| Maximum overcurrent strobe duty cycle (%) | 100 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 10 |
| Maximum strobe current (mA) | 1480 / 1800 (by configuration) |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (Hz) | 4000 |
| Maximum strobe input power (W) | 36 / 43 (by configuration) |
| Maximum strobe latency (µs) | 10 |
| Minimum overcurrent strobe duration (µs) | 30 |
| Minimum strobe duration (µs) | 30 |
| NPN trigger current (mA) | 15 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 20 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical
| Lit diameter (mm) | 197.6 |
|---|---|
| Height (mm) | 38.1 |
| Outer diameter (mm) | 323.1 |
| Inner diameter (mm) | 197.6 |
| Viewport diameter (mm) | 197.6 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
LS-RNG-0054
See this component from every angle.

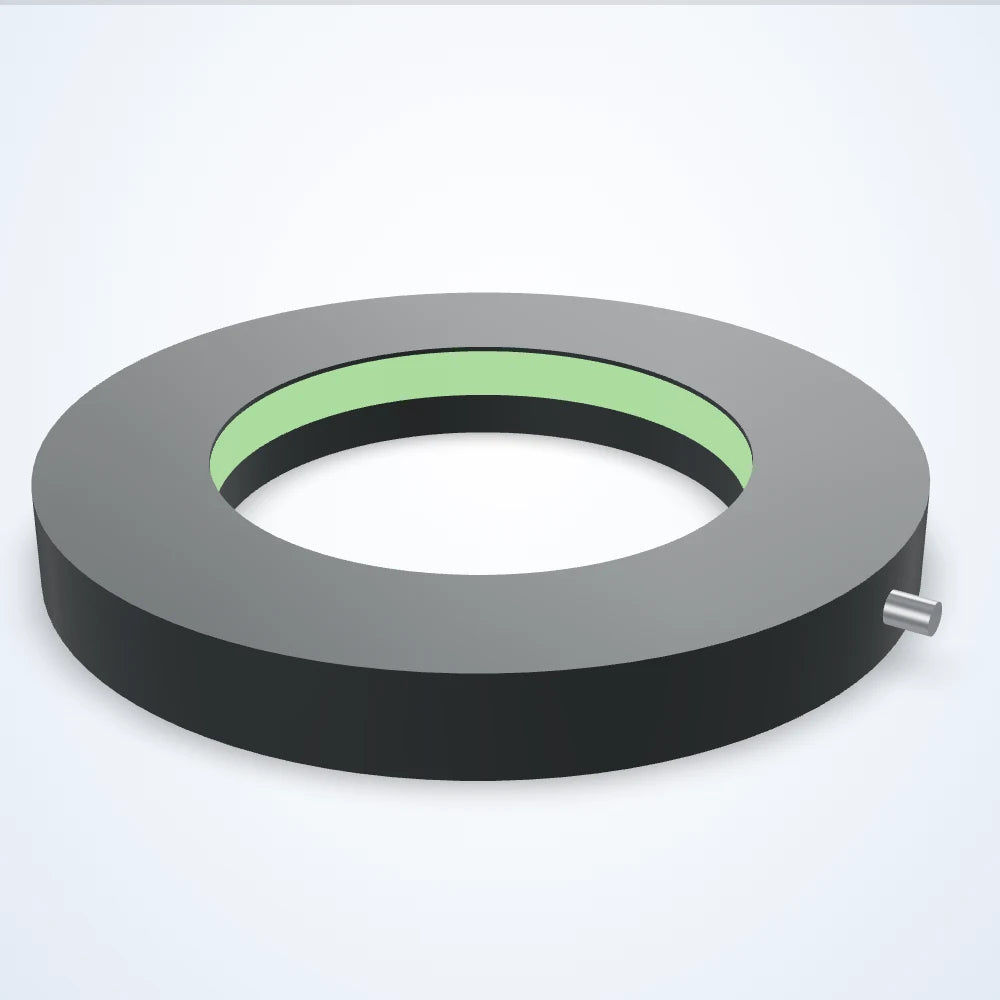

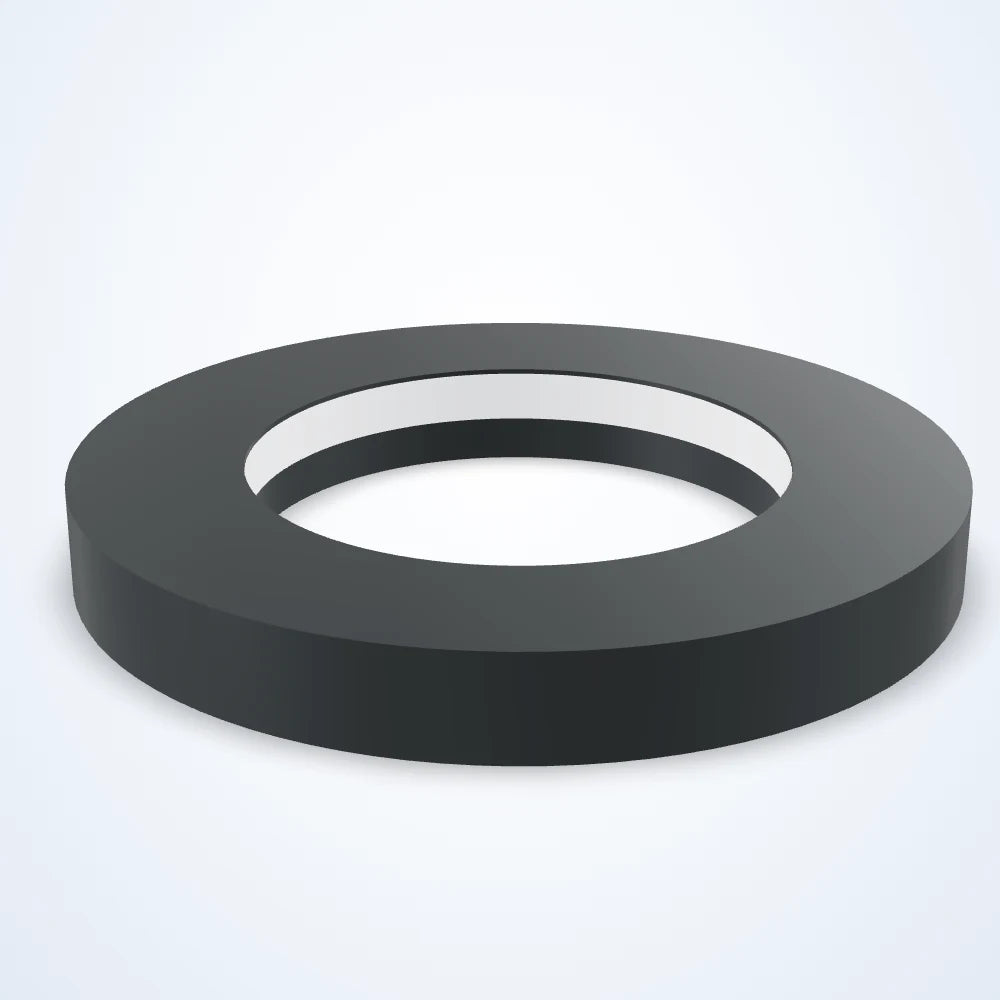

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit diameter (mm)
- 197.6
- Outer diameter (mm)
- 323.1
- Inner diameter (mm)
- 197.6
- Height (mm)
- 38.1

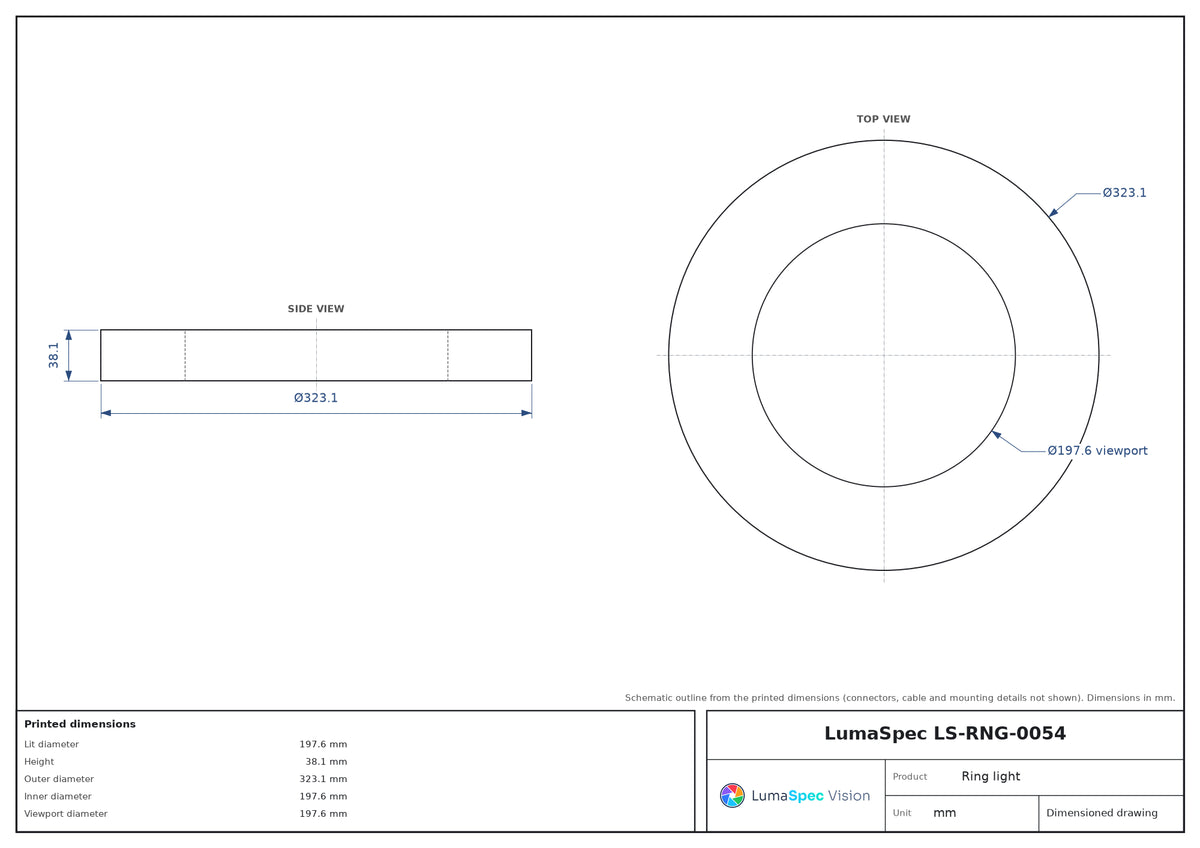

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
