Ring light, 151.2 mm (LS-RNG-0035)
  • Ring light, 151.2 mm (LS-RNG-0035)

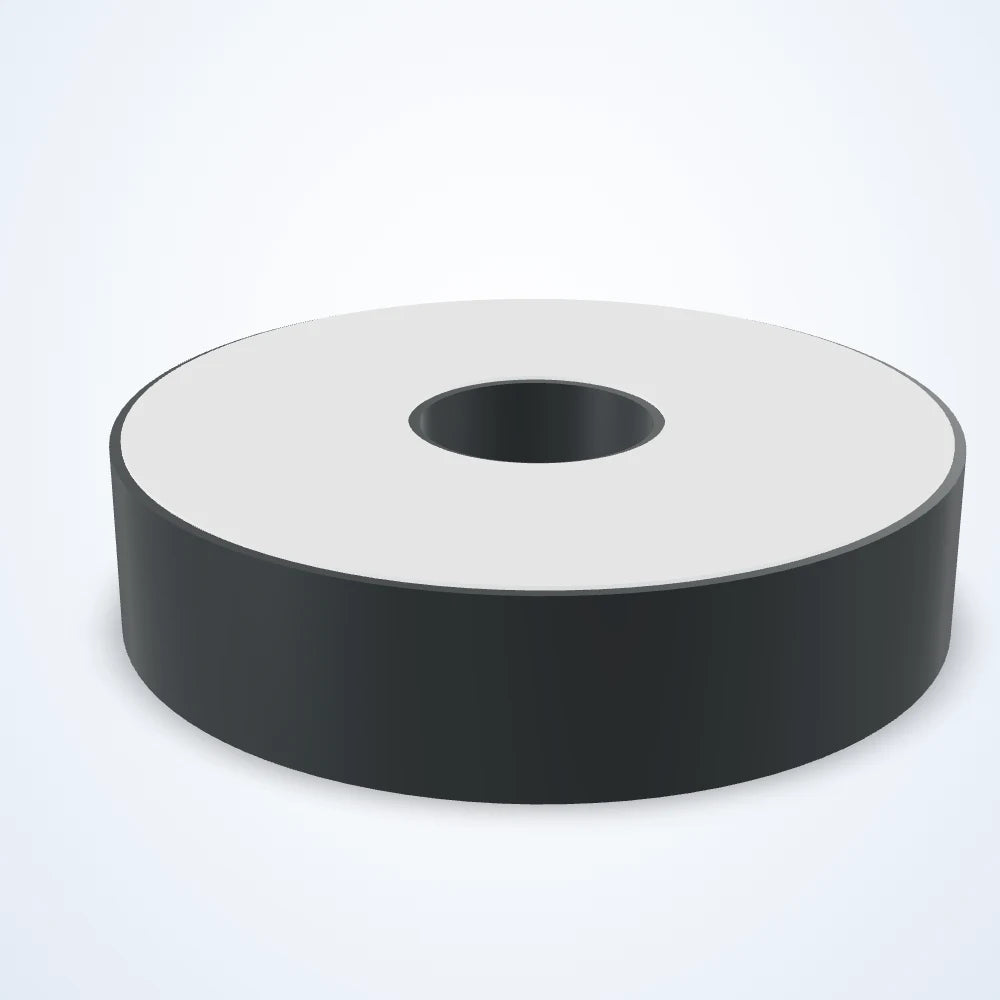

  • Ring light, 151.2 mm (LS-RNG-0035) - view 2
  • Ring light, 151.2 mm (LS-RNG-0035) - view 3

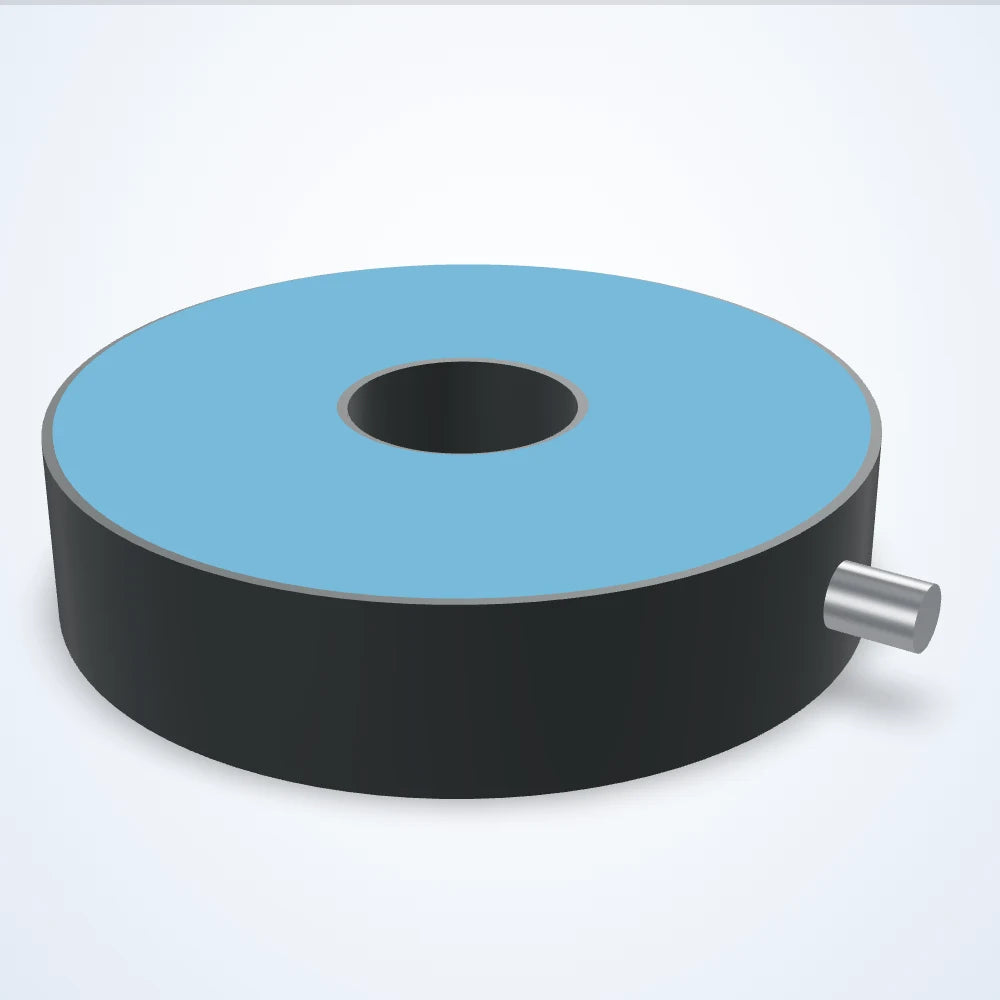

  • Ring light, 151.2 mm (LS-RNG-0035) - view 4
  • Ring light, 151.2 mm (LS-RNG-0035) - view 5

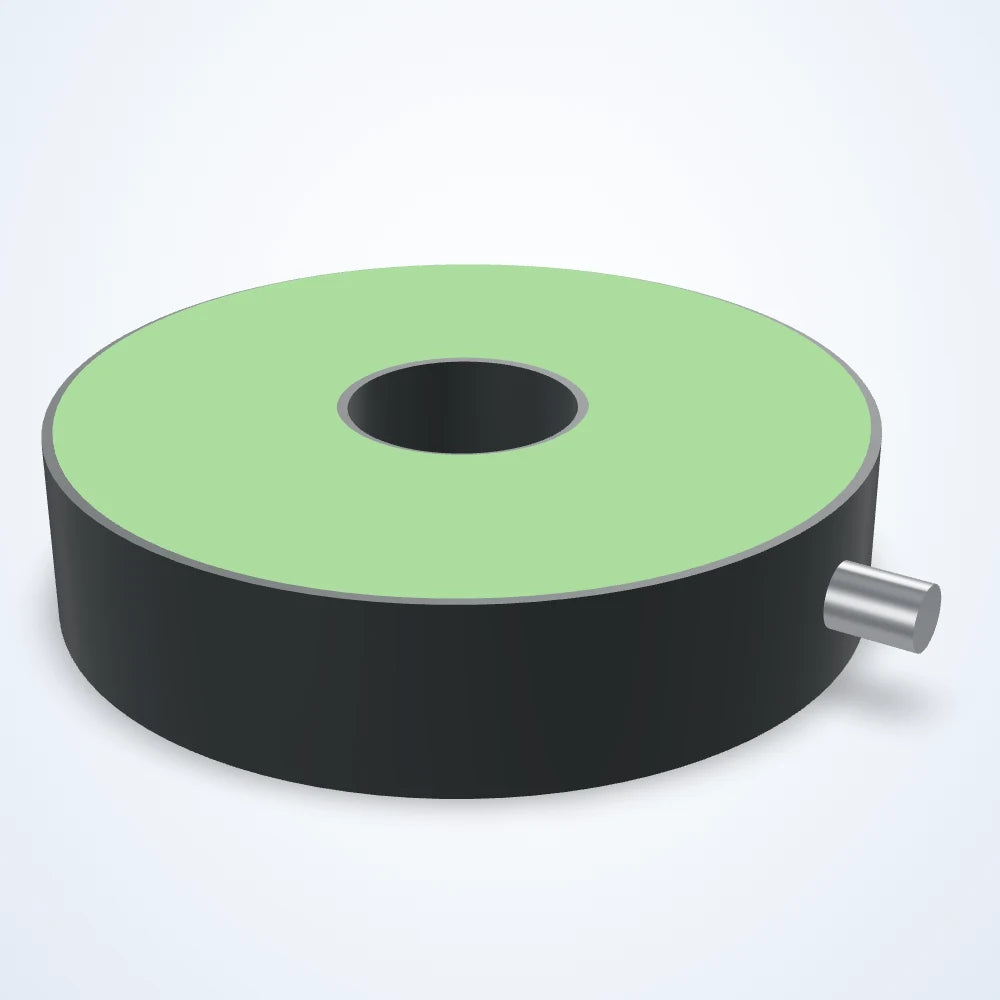

  • Ring light, 151.2 mm (LS-RNG-0035) - view 6

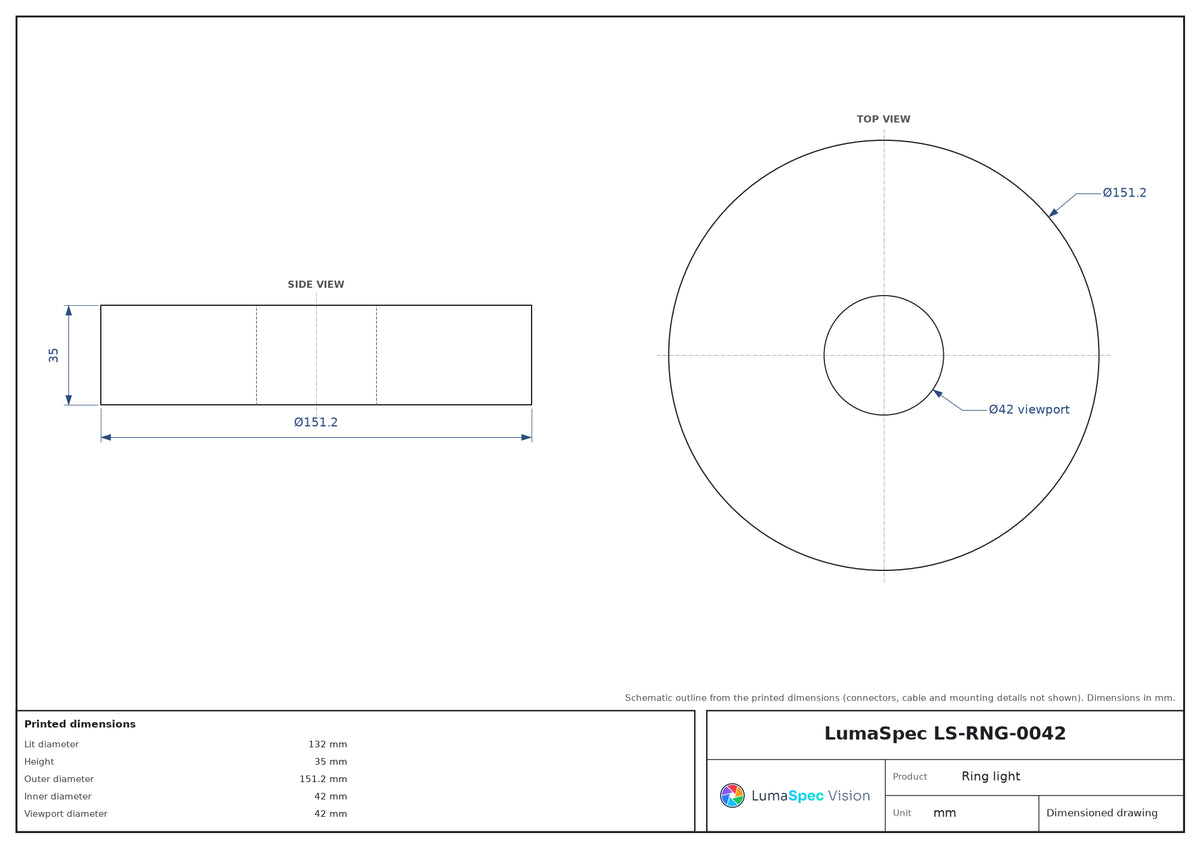

  • LS-RNG-0042 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Ring lights

Ring light, 151.2 mm, max overcurrent strobe current 460 mA (LS-RNG-0042)

Model LS-RNG-0042

  • ColourWhite, Infrared, Red, Green, UV, Blue
  • Voltage24 VDC
  • TypeStandard
  • Wavelength365 nm, 395 nm, 850 nm, 940 nm
from $829.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 9 available

Lens / beam angle

Configuration LS-RNG-0042-1 $1,519.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (9 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0042
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage, Integrated Potentiometer
Operating modesConstant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable
CollimatedCollimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature-10 to 40 °C
IP ratingIP50
Storage temperature-20 to 70 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Max overcurrent strobe current460 mA
Max overcurrent strobe input power11 W
Maximum constant on current (mA)460
Maximum current (overcurrent strobe) (mA)460
Maximum input power constant on (W)11.1
Maximum input power overcurrent strobe (W)11
Maximum overcurrent strobe duty cycle (%)100
Maximum overcurrent strobe frequency (Hz)4000
Maximum overcurrent strobe latency (µs)10
Minimum overcurrent strobe duration (µs)30
NPN trigger current (mA)14
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)17.6
PNP trigger voltage (V)4-24 VDC

Mechanical

Lit diameter (mm)132
Height (mm)35
Outer diameter (mm)151.2
Inner diameter (mm)42
Viewport diameter (mm)42
HousingAluminum
MountingT-Slot Channels, Tapped Holes
