Dark field ring light, 183.4 mm (LS-RNG-0032)
  • Dark field ring light, 183.4 mm (LS-RNG-0032)

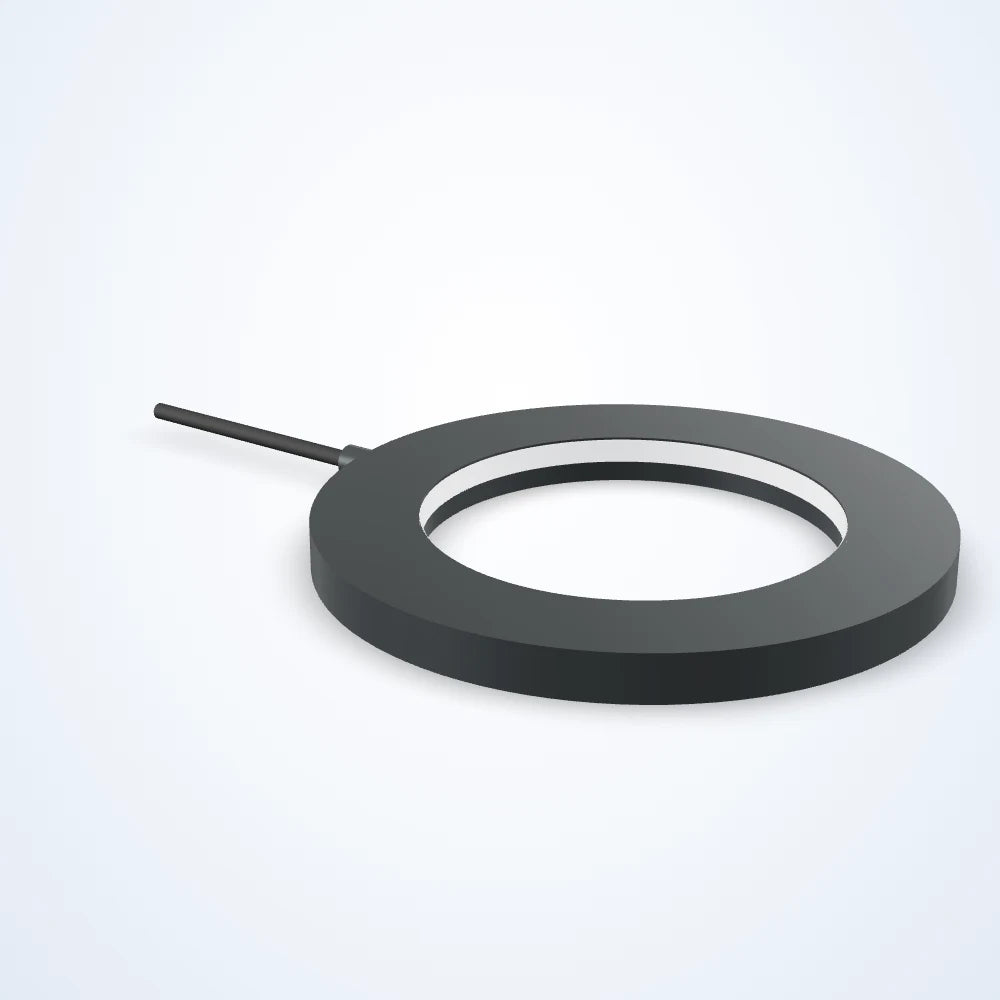

  • Dark field ring light, 183.4 mm (LS-RNG-0032) - view 2

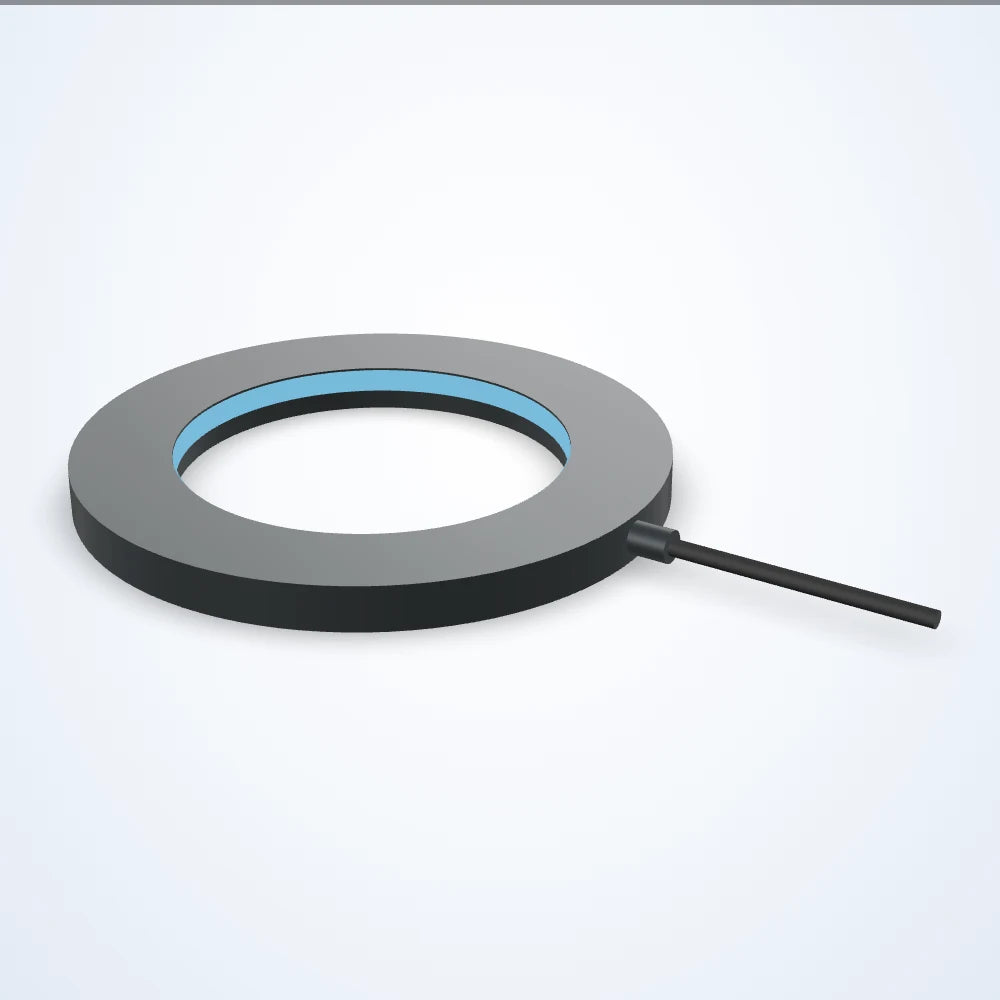

  • Dark field ring light, 183.4 mm (LS-RNG-0032) - view 3
  • Dark field ring light, 183.4 mm (LS-RNG-0032) - view 4
  • Dark field ring light, 183.4 mm (LS-RNG-0032) - view 5
  • Dark field ring light, 183.4 mm (LS-RNG-0032) - view 6

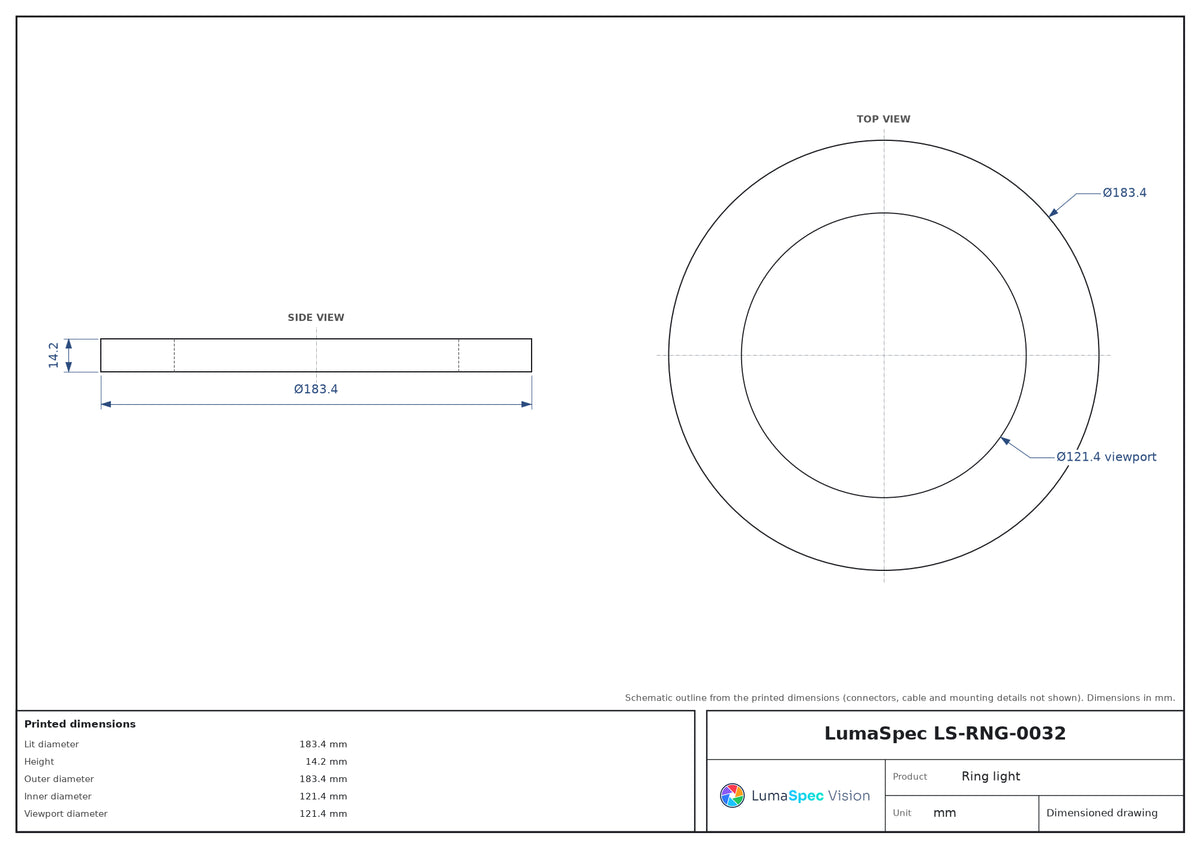

  • LS-RNG-0032 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Ring lights

Dark field ring light, 183.4 mm (LS-RNG-0032)

Model LS-RNG-0032

  • ColourWhite, Green, Red, UV, Blue
  • Voltage24 VDC
  • TypeLow-angle
  • Wavelength395 nm
from $1,279.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 72 available

Colour
Driver included
Driver location
Intensity control
Strobe trigger input
Field of view
Version

Configuration LS-RNG-0032-01 $1,369.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (72 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0032
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)180 / 240 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)4.3 / 5.8 (by configuration)
Maximum input power overcurrent strobe (W)125 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit diameter (mm)183.4
Height (mm)14.2
Outer diameter (mm)183.4
Inner diameter (mm)121.4
Viewport diameter (mm)121.4
HousingAluminum
MountingTapped Holes
