Ring lights
Ring light, 120 mm, 470nm Blue, 21° lens (LS-RNG-0008)
Model LS-RNG-0008
- ColourBlue
- Voltage24 VDC
- Angle21 Degree
- Wavelength470nm Blue
$329.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: 5 pin m12 male a-coded.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0008 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | 470nm Blue |
|---|---|
| Lens / beam angle | 21 Degree |
| Diffused | Not Diffused |
| Wavelength | 470nm Blue |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | PNP Trigger |
| Max overcurrent strobe current | 2700 mA |
| Max overcurrent strobe input power | 65 W |
| Maximum constant on current (mA) | 540 |
| Maximum current (overcurrent strobe) (mA) | 2700 |
| Maximum input power constant on (W) | 13 |
| Maximum input power overcurrent strobe (W) | 65 |
| Maximum overcurrent strobe duration (ms) | 5 |
| Maximum overcurrent strobe latency (µs) | 10 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger voltage (V) | 4-24 VDC |

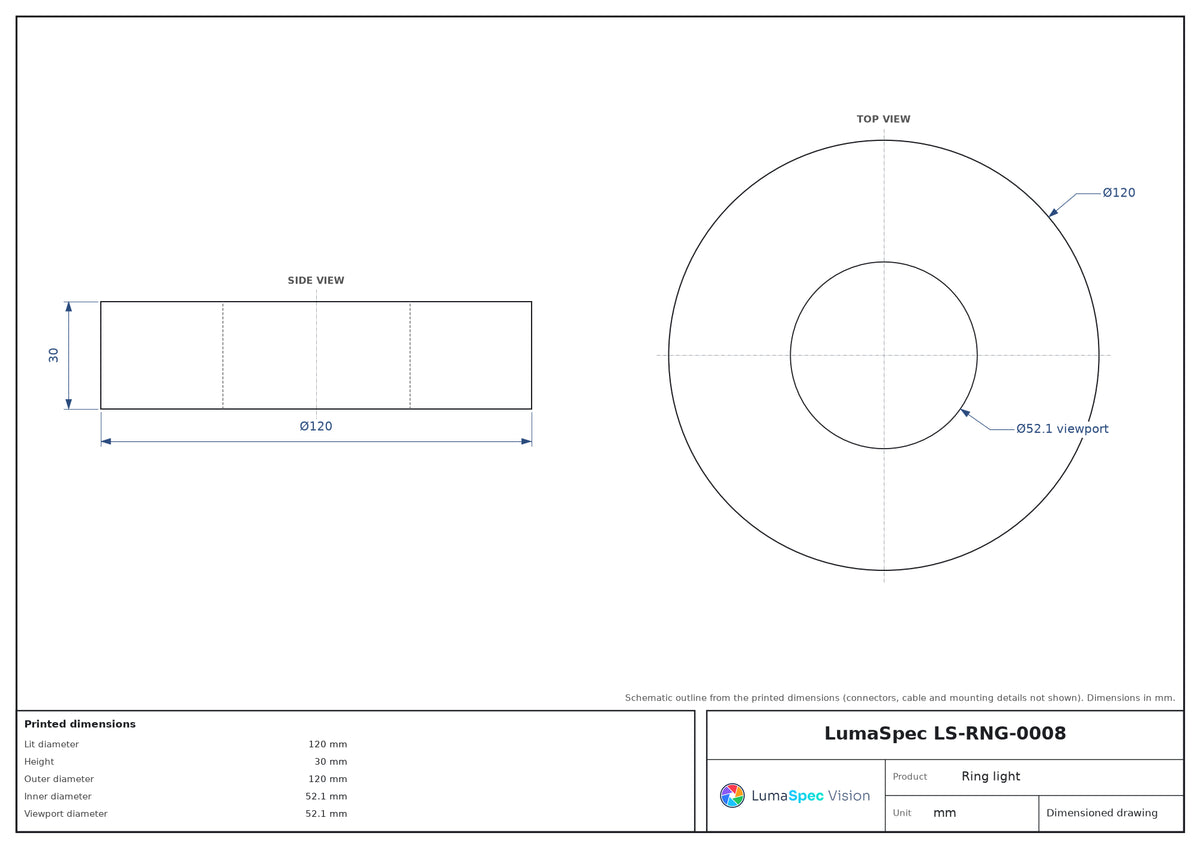

Mechanical
| Lit diameter (mm) | 120 |
|---|---|
| Height (mm) | 30 |
| Outer diameter (mm) | 120 |
| Inner diameter (mm) | 52.1 |
| Viewport diameter (mm) | 52.1 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
