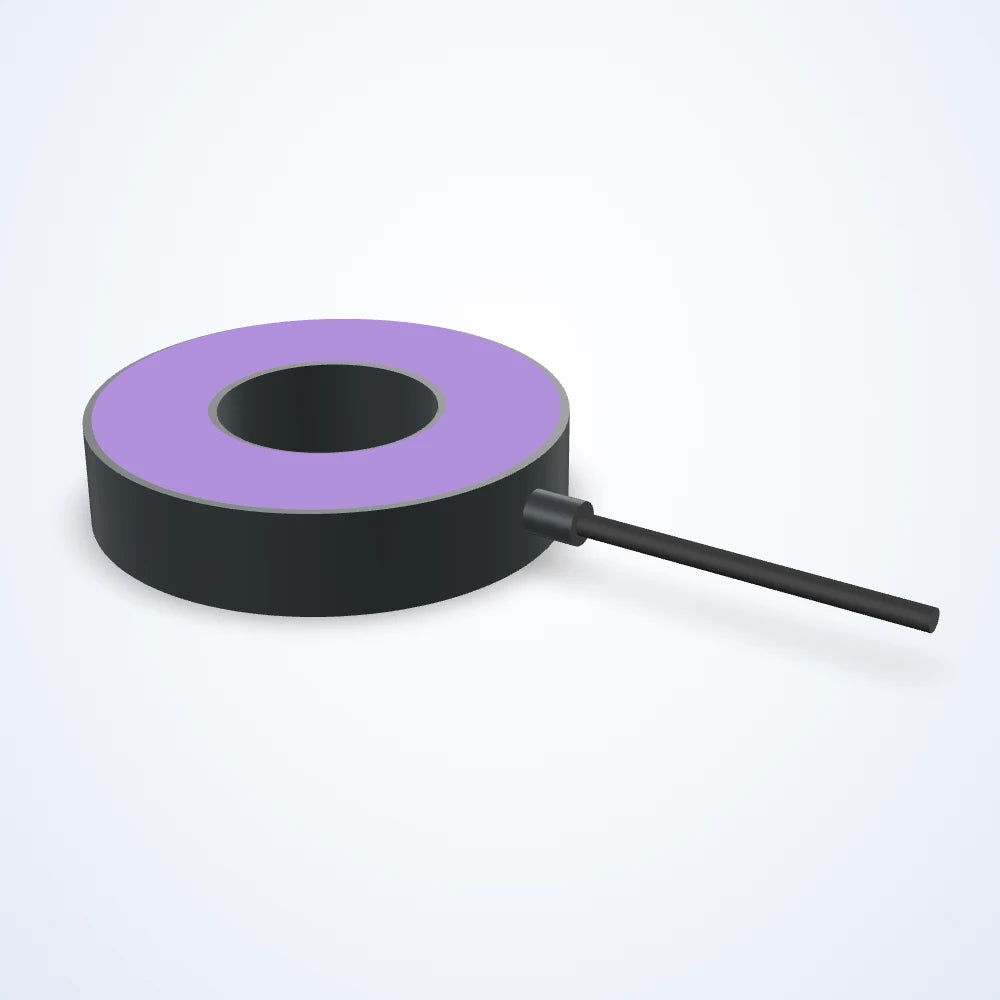

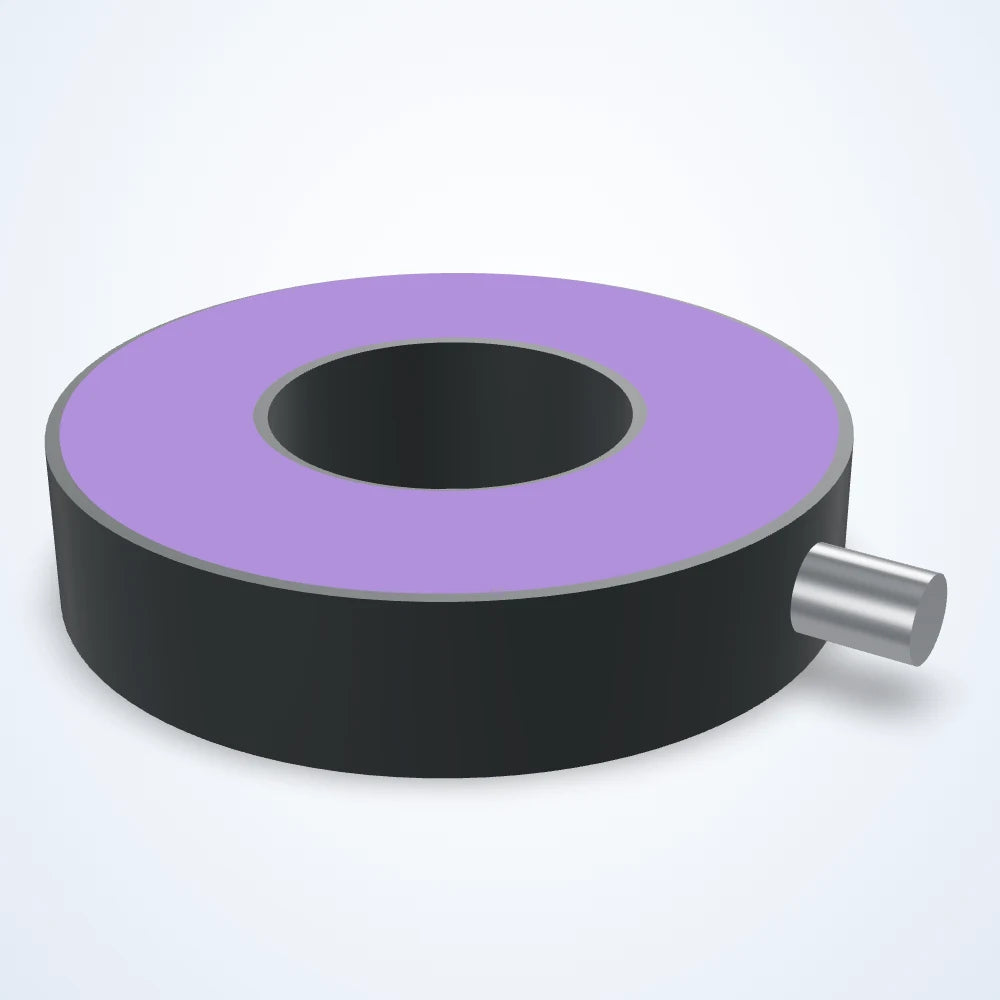

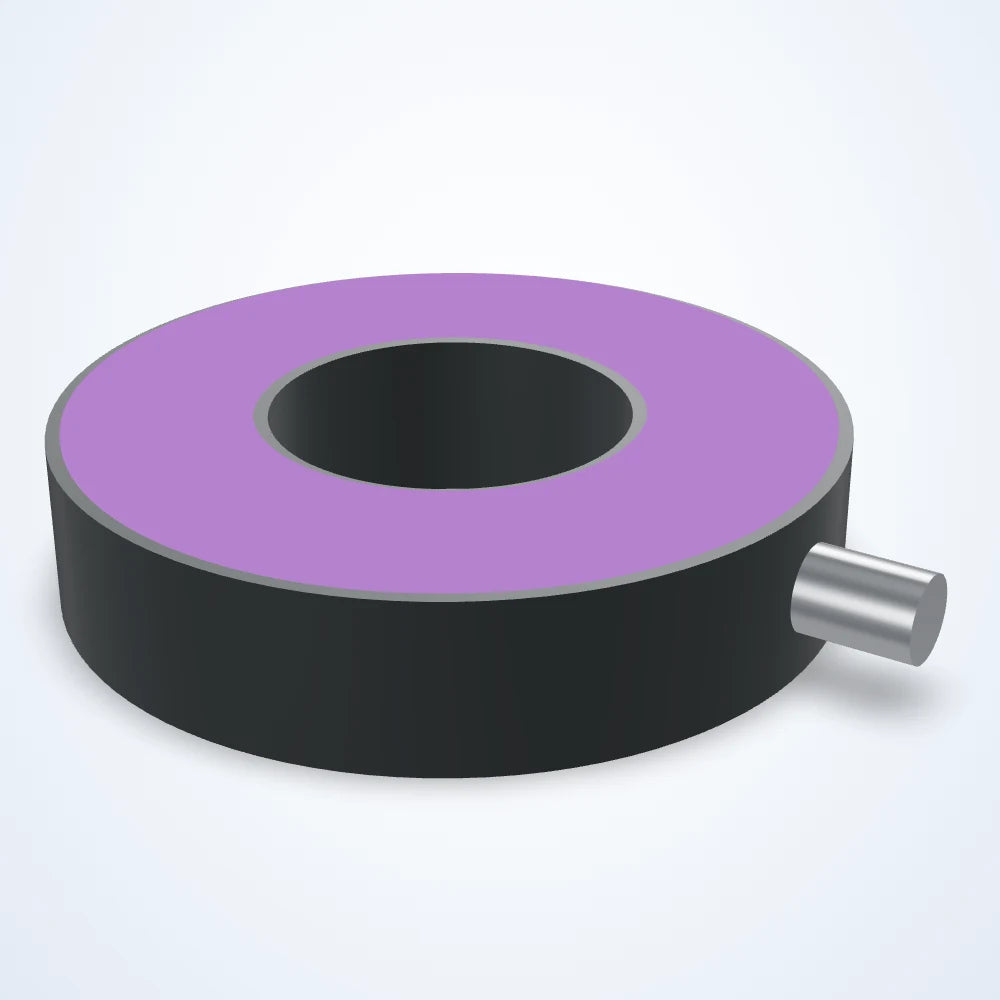

Rendered illustration: the actual product may differ in appearance.
Ring lights
Ring light, 109.6 mm (LS-RNG-0006)
Model LS-RNG-0006
- ColourUV
- Voltage24 VDC
- TypeStandard
- Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm
from $1,489.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 2-3 weeks
Choose a configuration 20 available
Configuration LS-RNG-0006-01 $1,489.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply. Choose colour, lens / beam angle, connector, driver location, strobe trigger input below (20 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0006 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Cable length (mm) | 2000 |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP69K |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 150 W |
| Maximum constant on current (mA) | 600 |
| Maximum current (overcurrent strobe) (mA) | 8000 |
| Maximum input power constant on (W) | 14.4 |
| Maximum input power overcurrent strobe (W) | 150 |
| Maximum overcurrent strobe frequency (Hz) | 2000 |
| Maximum overcurrent strobe latency (µs) | 20 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 5 |
| PNP trigger voltage (V) | 2.5-30 VDC / 4-24 VDC (by configuration) |

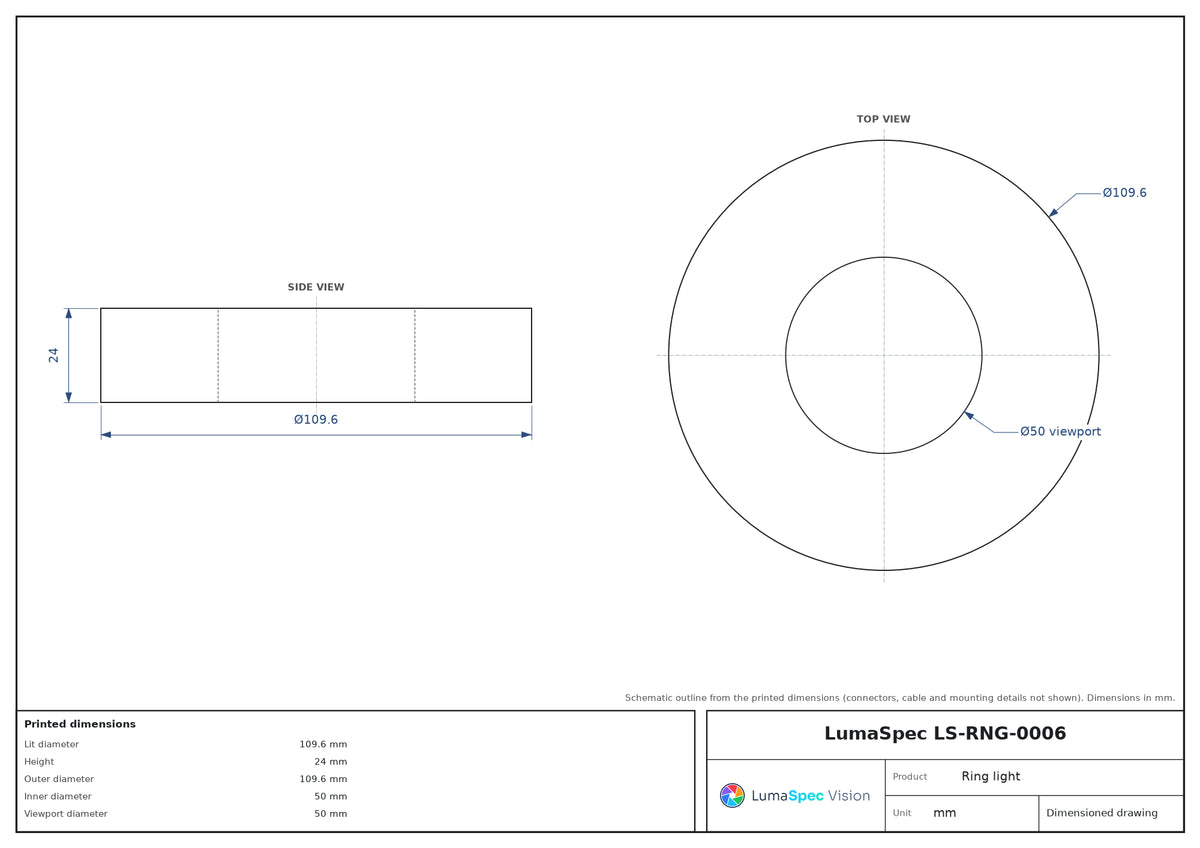

Mechanical
| Lit diameter (mm) | 109.6 |
|---|---|
| Height (mm) | 24 |
| Outer diameter (mm) | 109.6 |
| Inner diameter (mm) | 50 |
| Viewport diameter (mm) | 50 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
