Ring light, 152.4 mm (LS-RNG-0001)

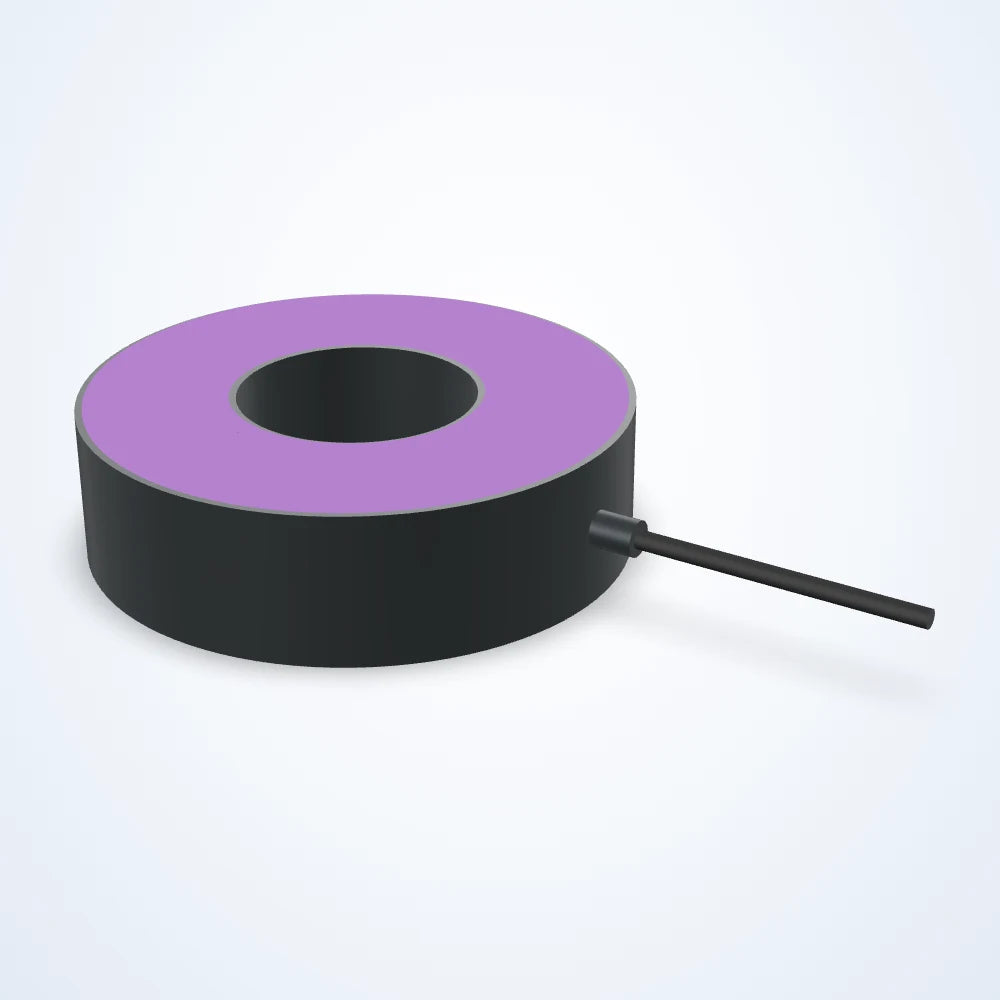

  • Ring light, 152.4 mm (LS-RNG-0001)

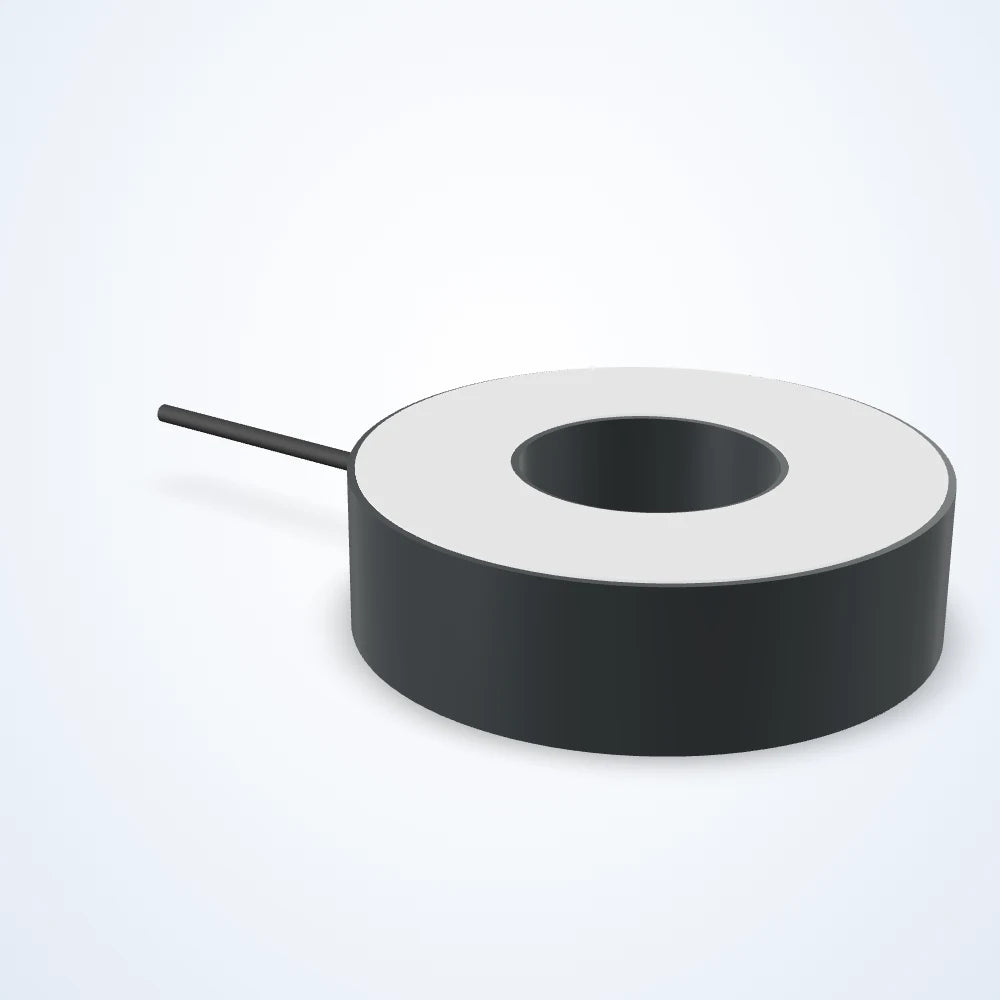

  • Ring light, 152.4 mm (LS-RNG-0001) - view 2

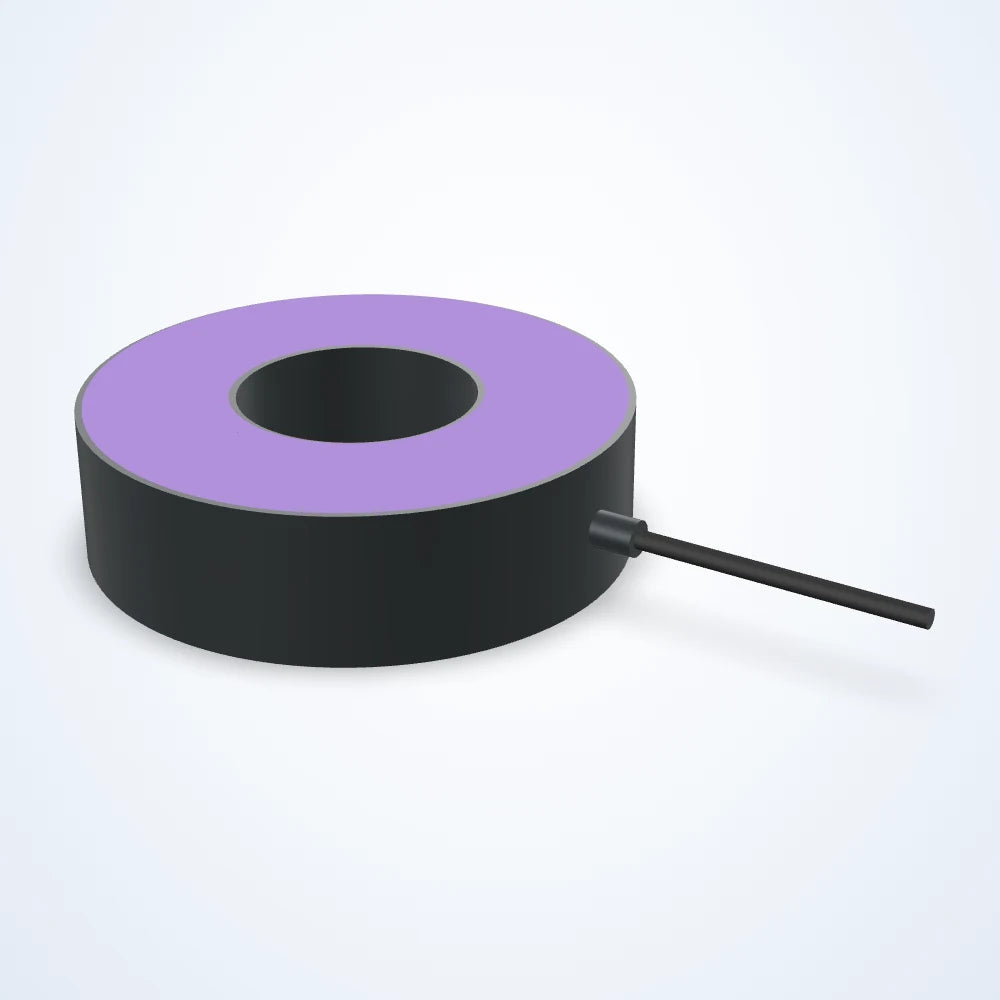

  • Ring light, 152.4 mm (LS-RNG-0001) - view 3
  • Ring light, 152.4 mm (LS-RNG-0001) - view 4
  • Ring light, 152.4 mm (LS-RNG-0001) - view 5

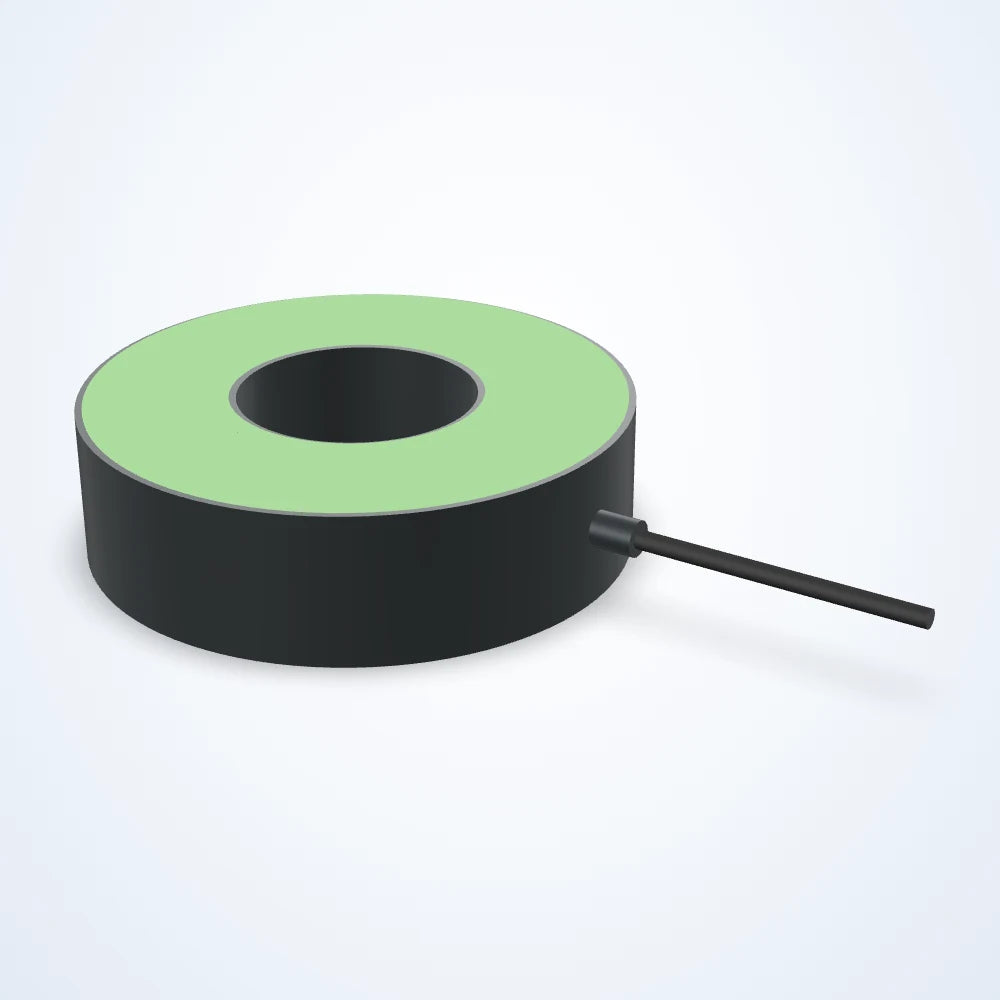

  • Ring light, 152.4 mm (LS-RNG-0001) - view 6

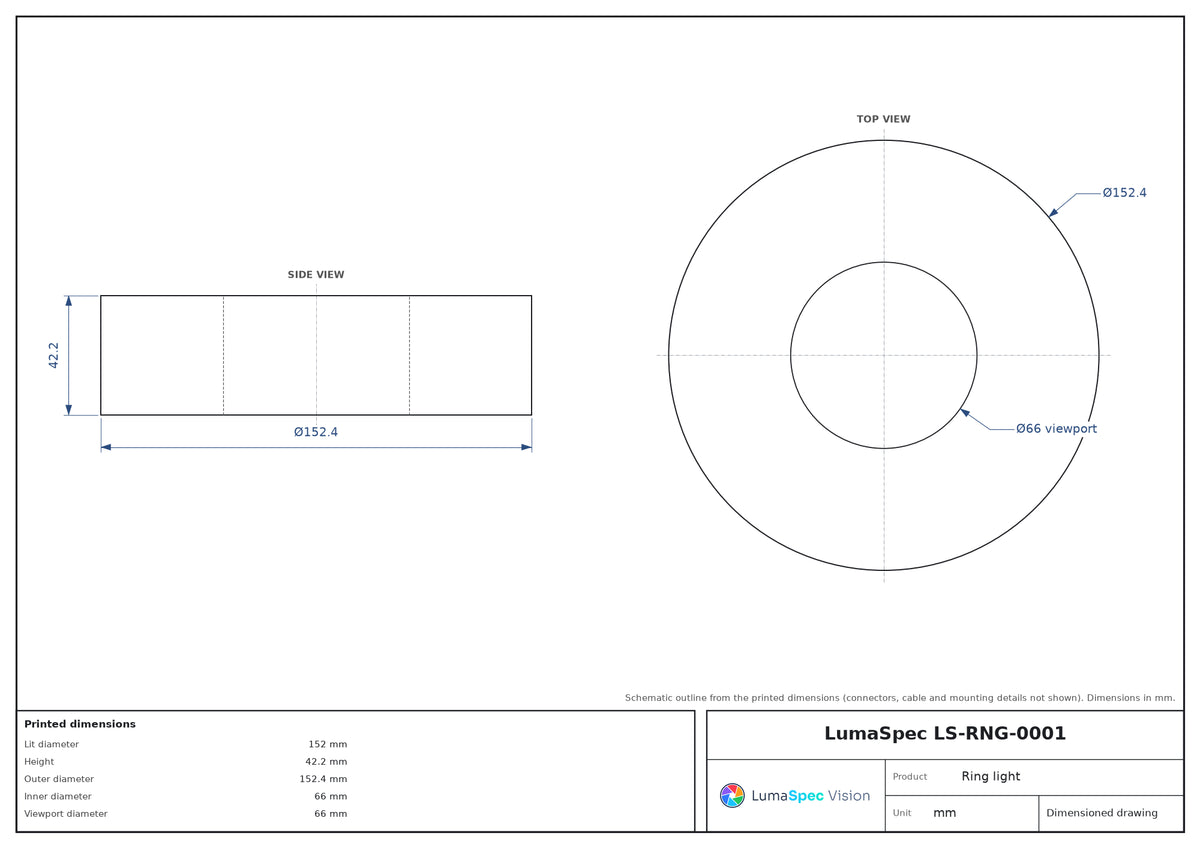

  • LS-RNG-0001 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Ring lights

Ring light, 152.4 mm (LS-RNG-0001)

Model LS-RNG-0001

  • ColourGreen, Infrared, Red, UV, Blue, White
  • Voltage24 VDC
  • TypeStandard
  • Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm
from $1,449.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 144 available

Lens / beam angle
Driver included
Driver location
Intensity control
Strobe trigger input

Configuration LS-RNG-0001-001 $1,779.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED ring light that mounts around the lens for even, on-axis illumination of the field of view. 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (144 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0001
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
IP ratingIP67
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)540 / 810 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)13 / 19.4 (by configuration)
Maximum input power overcurrent strobe (W)150 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)20 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit diameter (mm)152
Height (mm)42.2
Outer diameter (mm)152.4
Inner diameter (mm)66
Viewport diameter (mm)66
HousingAluminum
MountingTapped Holes
