Representative photo of this series

Ring lights

Ring light (LS-RN7060)

Model LS-RN7060

ColourRed, Green, Blue, White
Voltage24 V DC
Angle60°
TypeStandard

$119.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.3 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

Ring light with a high-density LED array in a compact, easy-to-install design. Various illumination angles are offered (0°, 15°, 30°, 45°, 60°, 90° and special angles) and angles can be customized; a diffuser plate is optional.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RN7060
Options	Diffuser plate, polarized plate, lens shackle
Angle definition	Angle between light ray and horizontal plane (catalog: 'water level')
Range by angle (overview)	0°: dia. 50-300, WD 5-20 mm, FOV 1-200 mm; 30°: dia. 50-350, WD 10-100 mm, FOV 1-200 mm; 45°: dia. 50-200, WD 20-150 mm, FOV 1-250 mm; 60°: dia. 28-250, WD 30-300 mm, FOV 1-250 mm; 90°: dia. 28-200, WD 50-500 mm, FOV 1-300 mm; special angle (LS-RN series): dia. 32-180, WD 5-500 mm, FOV 1-300 mm
UV / IR	UV & IR light can be customized as required
Note	UV & IR light can be customized as required.
Angle (between light ray and horizontal plane)	60°

Interfaces and I/O

Extension cable options	PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Cable (mm)	500

Light

Peak wavelength / colour temperature	Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature)
Colour temperature of white	6600 K

Environment and compliance

Operating environment	Temperature 0-50 °C, humidity 20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V DC
Adapted controller	Strobe controller; analog controller; digital controller
Voltage (V)	24
Power R (W)	2.2
Power G/B/W (W)	3.4

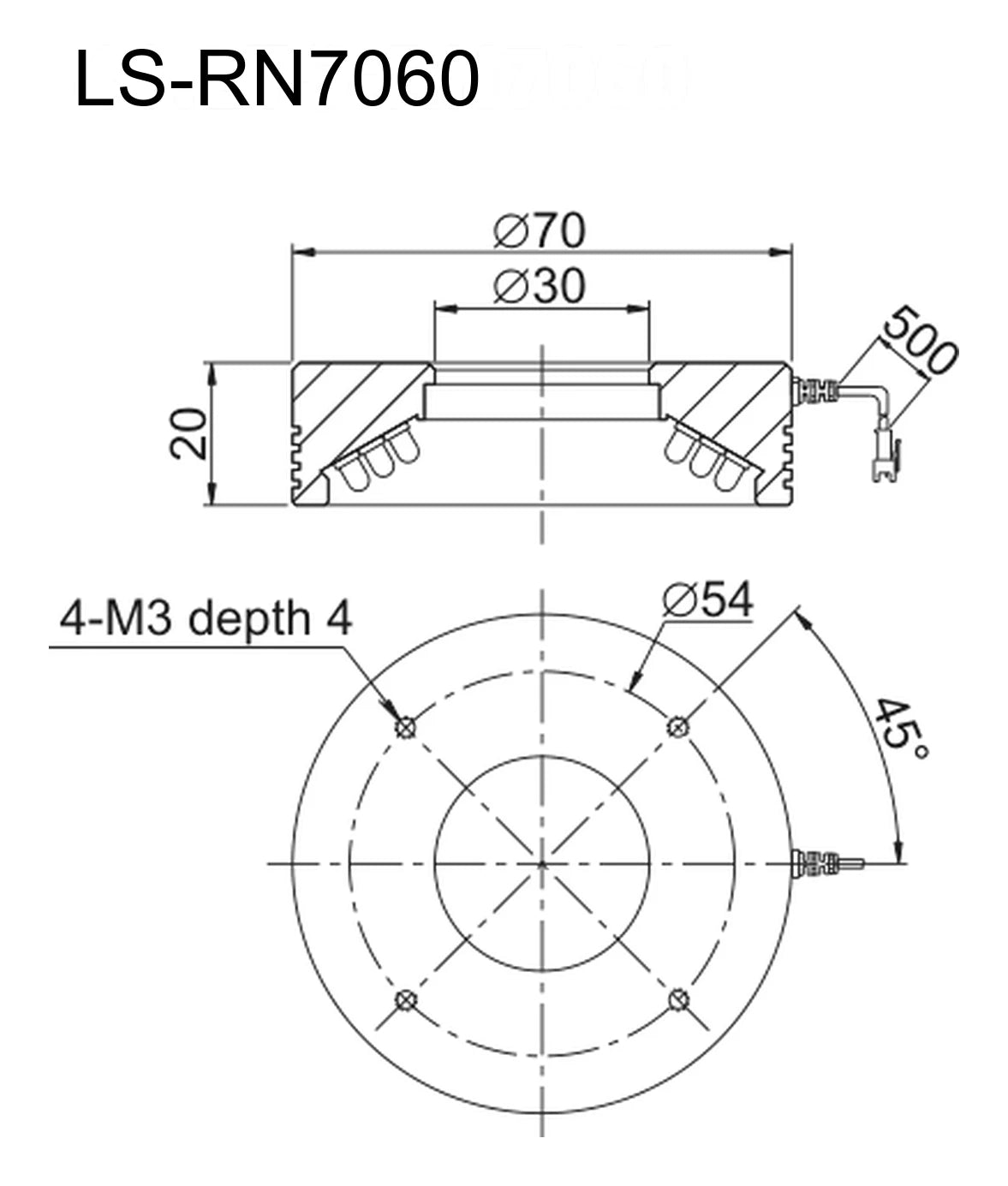

Mechanical

Weight (g)	116
Outer diameter (mm)	70
Inner diameter (mm)	30
Height (mm)	20
Mounting holes	4-M3 depth 4 on dia. 54

Downloads

Datasheet (PDF)LS-RN7060 · 3.6 MB

Features

Various angles optional, angle can be customized
Easy to install, compact design
High-density LED array, high luminance
Diffuser plate optional, adapts to different applications
Wire jacket covers the cable exit against pulling
Options: flat diffuser plate (reduces lamp shadow and glare on reflective workpieces), cup diffuser plate (matches the light angle for a more uniform, steady emitting area), polarized plate (used with a polarized lens to remove glare from uneven surfaces), lens shackle (fastens the light to the lens thread where space is small)
Customizable: outer & inner diameter, colour & colour temperature, cable length, installation method, emitting angle, shape, combined, multi-area control
Various angle optional, angle can be customized
Diffuser plate optional, adapt to the different applications

Applications

IC chip appearance and character inspection
PCB inspection
Tag inspection
Microscope illumination
Screw shape inspection (low angle / high angle)
The inspection of IC chip appearance and character
