Ring lights
120 x 80 mm infrared light, power 4.4 W (LS-RN12030-NIR)
Model LS-RN12030-NIR
- SizeOut dia. 120,Inner dia. 80,Height 23mm
- Voltage24V
- Power4.4W
- TypeStandard
$189.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
NIR light series is composed of LEDs which wavelength is 850-940nm (optional). The longer wavelength is, the better penetration is. The wavelength can be chose by CCD chip sensor of infrared camera. An ideal image is obtained by using the characteristic of good penetration. It is suitable for recognized foreign matters and characters etc. through solid or liquid dyes and ink.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RN12030-NIR |
|---|---|
| Note | UV & NIR light can be customized as required. |
| Product | Ring infrared light |
Light
| Diffuser | Cup-shaped diffuser optional |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 4.4W |
Mechanical

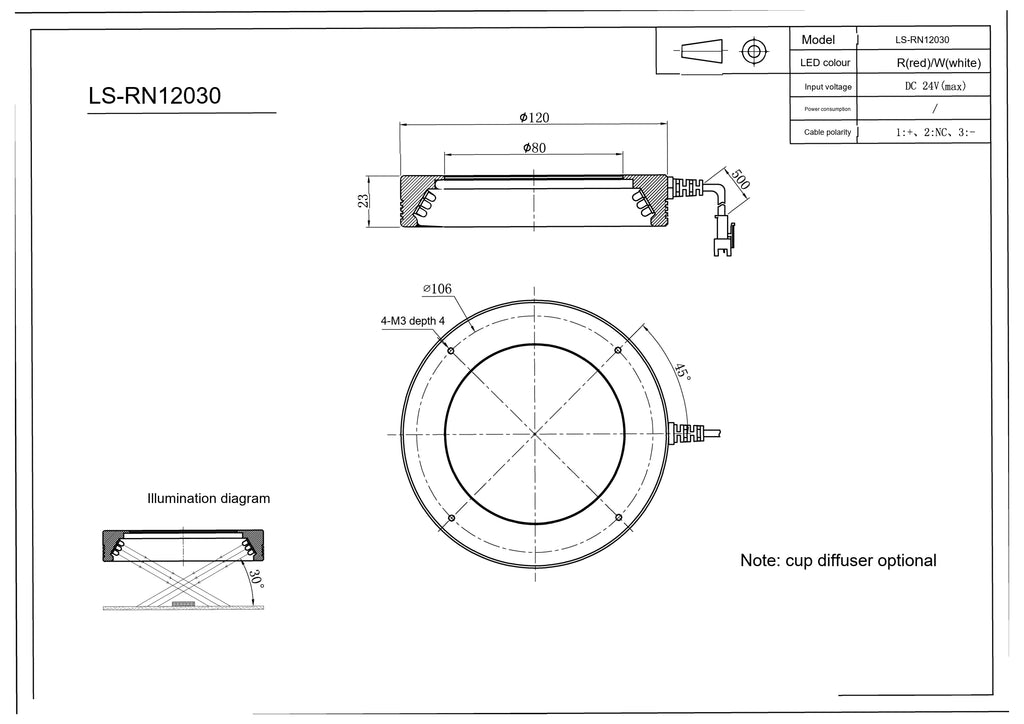

| Dimension | Out dia. 120,Inner dia. 80,Height 23mm |
|---|---|
| Shipping weight | 0.50 kg |
Photo shows the visible-light version of this light; this model emits near-infrared light - see the specifications.
