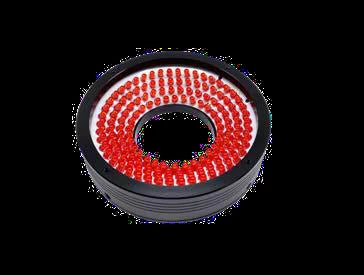

Representative photo of this series
Ring lights
67 mm dia. ring light, 60° (LS-R6760)
Model LS-R6760
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Angle60 degree series
- TypeStandard
$119.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-R6760 |
|---|---|
| Angle classification | 60 degree series |
| Number of lamp rows | 3 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 60 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 3.4 |
| Power white/blue/green (W) | 3.6 |

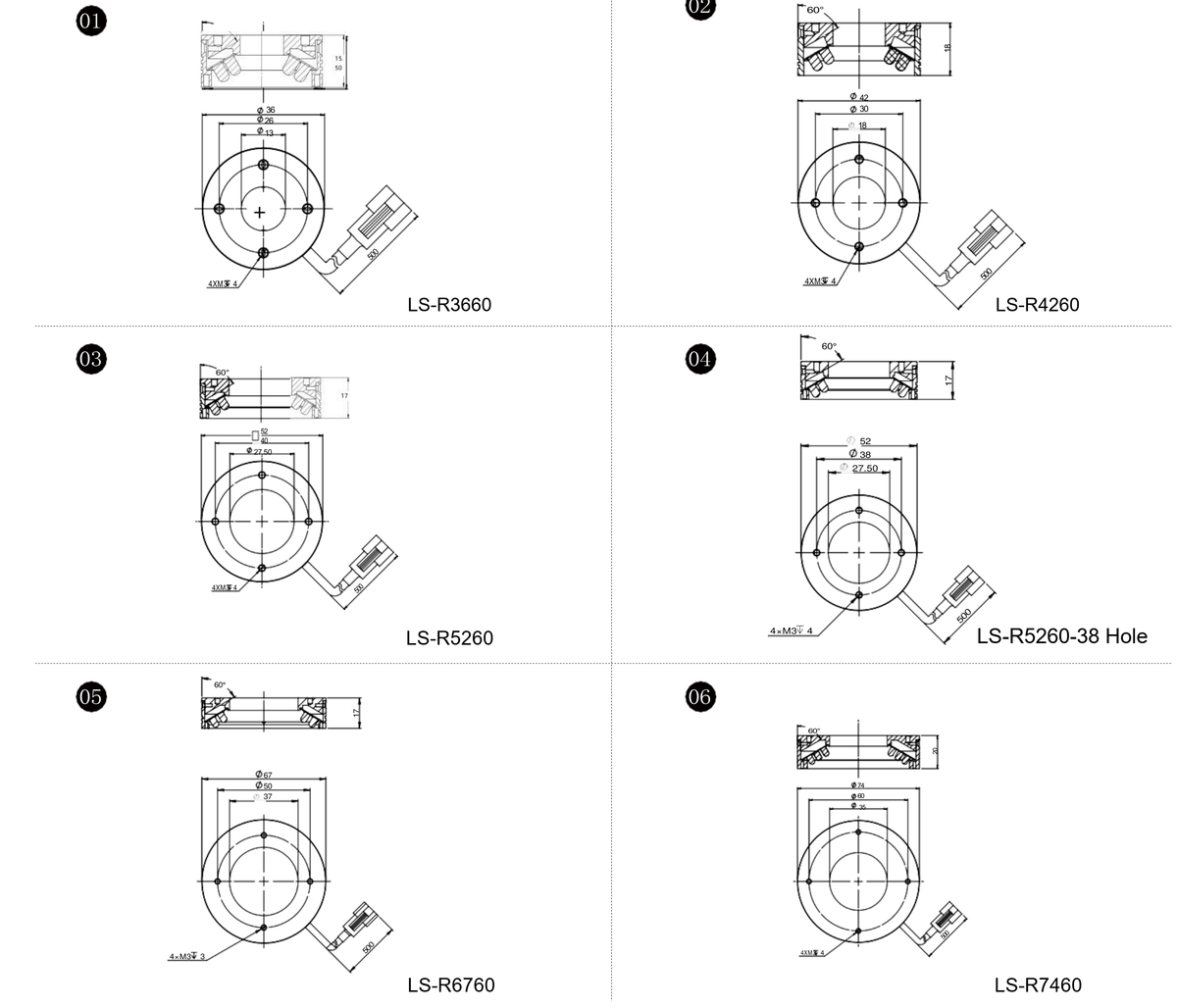

Mechanical
| Outer diameter (mm) | 67 |
|---|---|
| Inner diameter (mm) | 37 |
| Height (mm) | 18 |
| Mounting | 4 x M3 threaded, depth 3 |
| Shipping weight | 0.25 kg |
Other models in the Ring light, 60 degree series (LS-R) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-R3660 | 36 mm dia., 60° | $79.00 | 19 in stock | View |
| LS-R4260 | 42 mm dia., 60° | $79.00 | 17 in stock | View |
| LS-R5260 | 52 mm dia., 60° | $99.00 | 22 in stock | View |
| LS-R5260-38HOLE | 52 mm dia., 60° | $99.00 | 22 in stock | View |
| LS-R7460 | 74 mm dia., 60° | $129.00 | 21 in stock | View |
| LS-R9060 | 90 mm dia., 60° | $149.00 | 20 in stock | View |
| LS-R12060 | 120 mm dia., 60° | $189.00 | 22 in stock | View |
| LS-R15060 | 150 mm dia., 60° | $229.00 | 21 in stock | View |
| LS-R18060 | 180 mm dia., 60° | $269.00 | 22 in stock | View |
