Ring lights

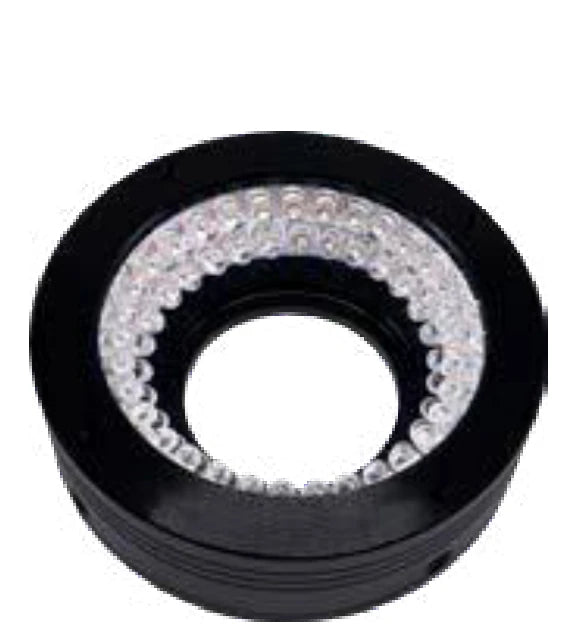

60 mm dia. ring light, 20° (LS-R6020)
Model LS-R6020
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Angle20 degree series
- TypeStandard
$109.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-R6020 |
|---|---|
| Angle classification | 20 degree series |
| Number of lamp rows | 2 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 20 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 1.4 |
| Power white/blue/green (W) | 3.0 |

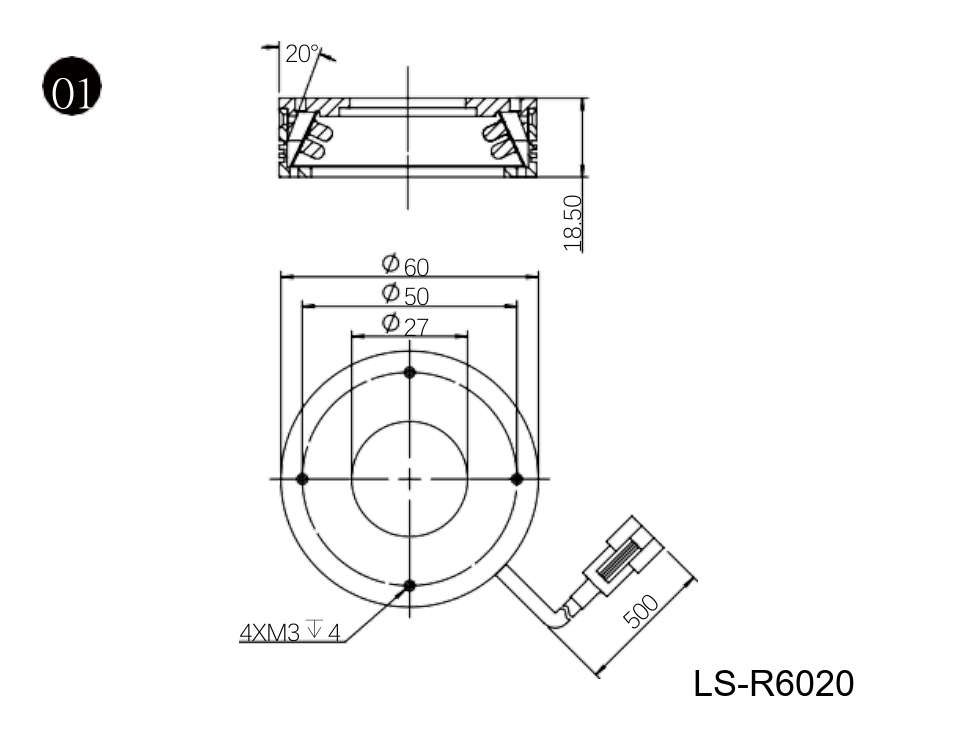

Mechanical
| Outer diameter (mm) | 60 |
|---|---|
| Inner diameter (mm) | 27 |
| Height (mm) | 18.5 |
| Mounting | 4 x M3 threaded, depth 4 |
| Shipping weight | 0.25 kg |
