Representative photo of this series
Ring lights
42 mm dia. ring light, 30° (LS-R4230)
Model LS-R4230
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Angle30 degree series
- TypeStandard
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring light sources provide illumination at different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination (high-angle direct lighting, angle, number of rings).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-R4230 |
|---|---|
| Angle classification | 30 degree series |
| Number of lamp rows | 2 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Illumination angle | 30 deg |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 0.7 |
| Power white/blue/green (W) | 1.8 |

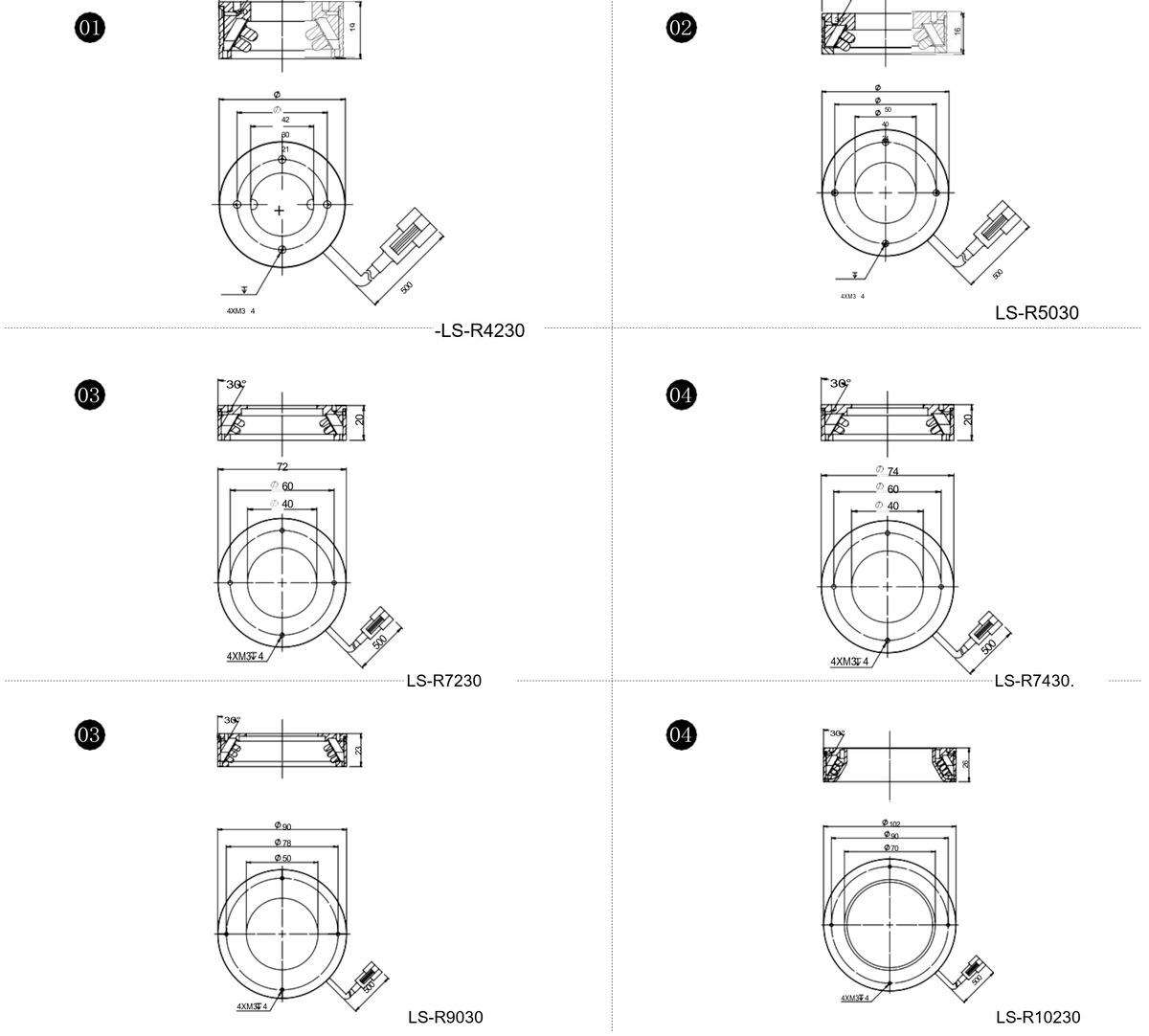

Mechanical
| Outer diameter (mm) | 42 |
|---|---|
| Inner diameter (mm) | 40 |
| Height (mm) | 20 |
| Mounting | 4 x M3 threaded, depth 4 |
| Shipping weight | 0.20 kg |
Other models in the Ring light, 30 degree series (LS-R) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-R5030 | 50 mm dia., 30° | $89.00 | 17 in stock | View |
| LS-R7230 | 72 mm dia., 30° | $119.00 | 20 in stock | View |
| LS-R7430 | 74 mm dia., 30° | $129.00 | 20 in stock | View |
| LS-R9030 | 90 mm dia., 30° | $149.00 | 18 in stock | View |
| LS-R10230 | 102 mm dia., 30° | $169.00 | 23 in stock | View |
| LS-R12030 | 120 mm dia., 30° | $189.00 | 19 in stock | View |
| LS-R15030 | 150 mm dia., 30° | $229.00 | 21 in stock | View |
| LS-R18030 | 180 mm dia., 30° | $269.00 | 19 in stock | View |
| LS-R21030 | 210 mm dia., 30° | $309.00 | 25 in stock | View |
