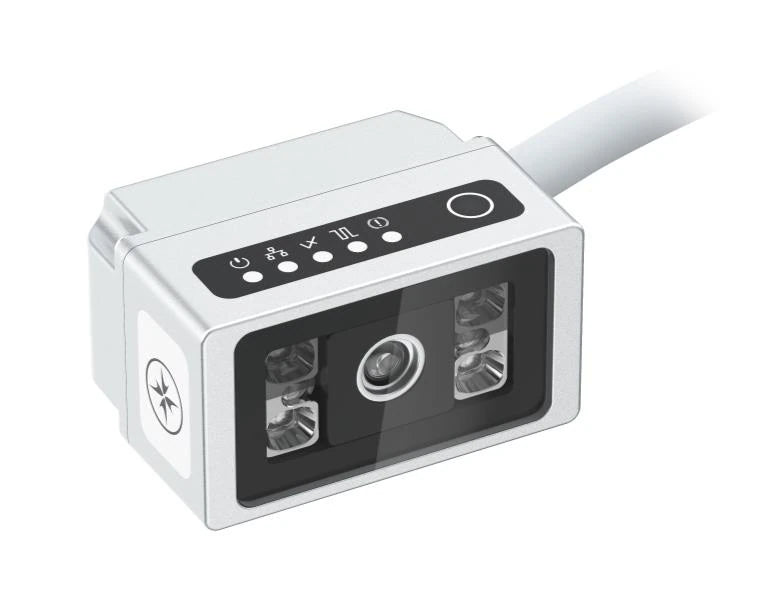

Representative photo of this series
Fixed code readers
Compact R series fixed industrial barcode reader, 1.0 MP, focal length 7 mm (LS-R270-A)
Model LS-R270-A
- Resolution1280 x 800
- Speed120FPS
- Focal length7 mm
- ShutterGlobal
$559.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.59 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Compact fixed industrial barcode reader with an integrated machine vision algorithm engine for powerful, stable decoding, OneClick debugging and an extra small body whose length and width are less than 1/3 of a standard business card.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-R270-A |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Sight | 2 green LED dot aiming |
| Barcode level verification | ISO/IEC 15415, ISO/IEC 16022, ISO/IEC TR29158 (AIM DPM-1-2006) |
| Lighting system | Built-in 4 high-power red LED lights |
| Lens | 7mm fixed focus large depth of field lens |
| View field | 35° horizontally, 21° vertically |
Optics
| Focus mode | Fixed focal length |
|---|---|
| Typical reading depth of field | 40~120mm |
| Focal length (mm) | 7 |
Sensor and imaging
| Image sensor | 1280*800 Pixel Global Shutter CMOS |
|---|---|
| Max acquisition frame rate | 120FPS |
| Resolution | 1280 x 800 |
| Shutter | Global |
Interfaces and I/O
| Communication interface | Ethernet 100 Mbit/s, RS232 |
|---|---|
| Supported communication protocols | TCP/IP, FTP, Profinet IO, EIP, RS232, Modbus TCP |
Environment and compliance
| Ambient temperature | -10~50°C |
|---|---|
| Certification | CE, FCC, RoHS |
Electrical
| Input/Output IO | 2 isolated IO inputs + 2 isolated IO outputs (NPN and PNP types available) |
|---|---|
| Powered by | 24V DC |
| Protection level | IP65 |
| Voltage | 24 V DC |
Mechanical
| Shipping weight | 0.59 kg |
|---|
