Ring lights

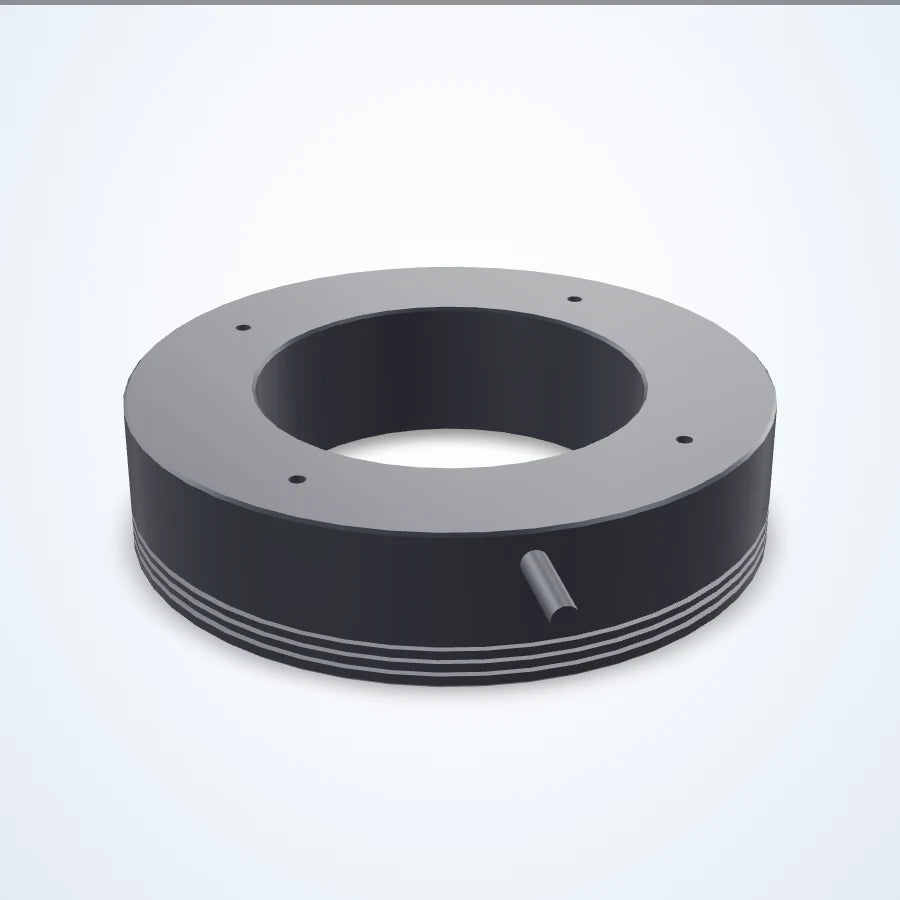

100 mm OD High-Power LED Ring Light (LS-PLR-100-90)
Model LS-PLR-100-90
- ColourRed, Green, Blue, White
- Voltage24 V
- Angle90°
- TypeStandard
$259.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
100 mm OD High-Power LED Ring Light. High power ring light built on a high-power LED array with a condenser lens, giving a more concentrated beam and higher brightness for long-distance, high-brightness lighting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PLR-100-90 |
|---|---|
| Angle (°) | 90 |
| OD x ID x H (mm) | 100x60x24 |
| Model code | LS-PLR-<outer diameter>-<angle>-<color>, e.g. LS-PLR-75-90-W |
Light
| LED rows | 1 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illumination chart | LS-PLR-100-90: illuminance (lx) vs working distance (mm); uniformity maps at LWD 80/100/120 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 8.4 |
| Power G/B/W (W) | 9.1 |
Mechanical
| Shipping weight (estimated) | 0.30 kg |
|---|
Mounting and drawing data
drawing : φ100 / φ94 / ID φ60, H 24; 4-M3 depth 4 on φ80 at 45°; cable 500 mm
Other models in the High power ring light (PLR) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PLR-75-90 | 75 mm OD | $199.00 | 13 in stock | View |
| LS-PLR-120-90 | 120 mm OD | $299.00 | 15 in stock | View |
| LS-PLR-150-90 | 150 mm OD | $369.00 | 12 in stock | View |
| LS-PLR-220-90 | 220 mm OD | $519.00 | 16 in stock | View |
| LS-PLR-300-90 | 300 mm OD | $689.00 | 14 in stock | View |
