Representative photo of this series
Special lights
80 x 35 mm Pin-inspection light source (LS-PDL8035-W)
Model LS-PDL8035-W
- ColourWhite
- Emitting area80 x 35 mm
- Power60 W
- Optional accessoriesExtension cable
$819.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Unique structure with narrow light output, dedicated to pin positioning inspection; high-power LEDs raise brightness, and strobe (flash) lighting raises brightness further and extends life.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PDL8035-W |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
Interfaces and I/O
| Cable | 2 x 500 mm |
|---|
Light
| Colour temperature white | 6000-6500 K |
|---|---|
| Emitting surface (mm) | 80 x 35 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-BPS series (the selected controller should match the power of the light source) |
|---|---|
| Power (W) | 60 |
| Recommended controller | LS-SPS9024A-2T |

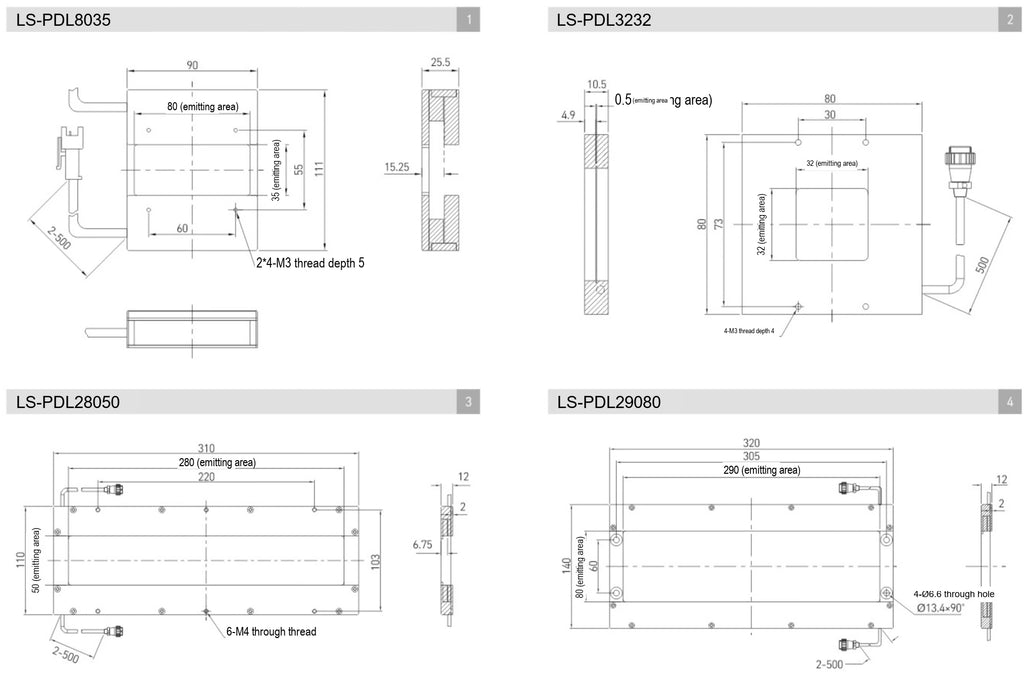

Mechanical
| Length (mm) | 111 |
|---|---|
| Width (mm) | 90 |
| Height (mm) | 25.5 |
| Mounting | 2*4-M3 depth 5 |
| Shipping weight | 0.45 kg |
Other models in the Pin-inspection light source (PDL series) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PDL3232-W | 32 x 32 mm | $1,259.00 | 5 in stock | View |
| LS-PDL29080-W | 290 x 80 mm | $2,339.00 | 5 in stock | View |
| LS-PDL28050-W | 280 x 50 mm | $2,669.00 | 4 in stock | View |
