Representative photo of this series. Colour shown for illustration; the actual product may differ

Dome lights

LED dome light, Ø70 mm (LS-NTD-C70X-S)

Model LS-NTD-C70X-S

ColourBlue, Red, White
Voltage24 V
Sizedia. 70 x 32
Current (max) (Blue)0.11A

$149.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.5 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Uniform, shadow-free lighting for shiny and curved surfaces: light comes out from the bottom and is reflected 360 degrees inside the sphere so the whole image is uniform.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-NTD-C70X-S

Light

Color temperature / wavelength (Blue)	470nm Typ.
Color temperature / wavelength (Red)	625nm Typ.
Color temperature / wavelength (White)	6500K Typ.

Electrical

Current (max) (Blue)	0.11A
Power (max) (Blue)	2.6W
Current (max) (Red)	0.075A
Power (max) (Red)	1.8W
Current (max) (White)	0.075A
Power (max) (White)	1.8W
Supply voltage (derived)	24 V DC, derived from its rated 2.6 W at 0.11 A

Mechanical

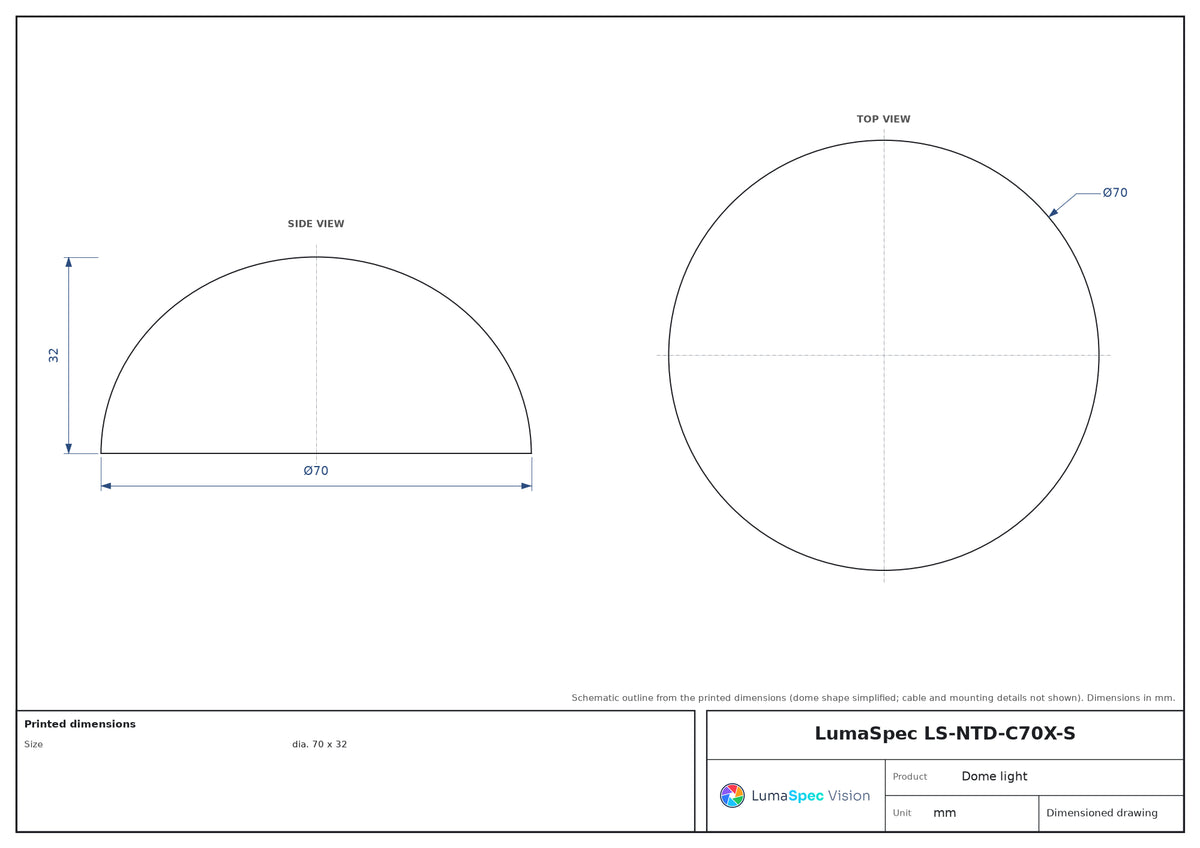

Size (mm)	dia. 70 x 32
Shipping weight	0.50 kg

Other models in the LED dome light series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-NTD-C116X-S	Blue, Red, White · 24 V	$259.00	11 in stock	View
LS-NTD-C175X-S	Blue, Red, White · 24 V	$449.00	11 in stock	View
LS-NTD-C198X-S	Blue, Red, White · 24 V	$529.00	7 in stock	View
LS-NTD-C260X-S	Blue, Red, White · 24 V	$809.00	6 in stock	View
LS-NTD-C325X-S	Blue, Red, White · 24 V	$1,149.00	11 in stock	View
