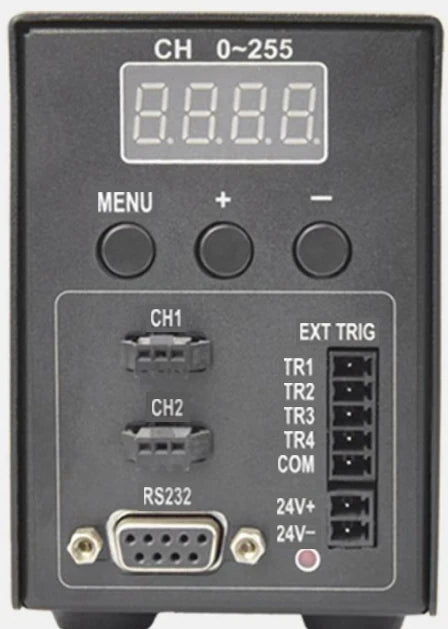

Representative photo of this series
Light controllers
External power digital controller, 2 ch (LS-NP24DC-2T5A)
Model LS-NP24DC-2T5A
- Channels2
- Control9600-115200bps optional
- TriggerEdge + level trigger
- OutputConstant voltage 24 V
$209.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Support RS232/RS485 communication. External power supply up to 24V. Low trigger response time.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-NP24DC-2T5A |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Control | digital (buttons, 4-digit display) / RS232 / RS485 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 10mA~4A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 4A |
|---|---|
| Maximum input voltage | 24V |
| Maximum output voltage | 24V |
| Short-circuit protection | have |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Trigger mode | Edge + level trigger |
| Driving mode | PWM |
| Built-in power supply power | NO |
| Number of channels | 2 |
| Overheat protection | no |
Mechanical
| Dimension | 66x85x99mm |
|---|---|
| Shipping weight | 0.40 kg |
