Telecentric lenses

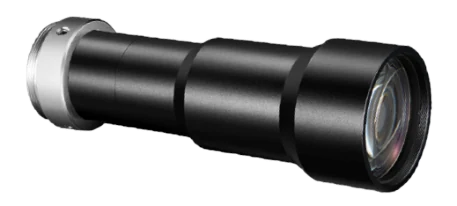

Object-Side Telecentric Lens, 2x, 108 mm WD, 2/3" (LS-MY-2-108)
Model LS-MY-2-108
- Magnification2
- MountC-mount
- Sensor2/3"
- Working distance108 mm
- ApertureF10.5
$649.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 2x, 108 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MY-2-108 |
|---|
Optics
| Magnification | 2 |
|---|---|
| Working distance | 108 mm |
| F-number | F10.5 |
| Image size | Φ11 mm |
| Depth of field | 0.2 mm |
| Distortion | ≤0.02% |
| Object-side resolution | 3.5 μm |
| Object-side telecentricity | ≤0.04° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50 °C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

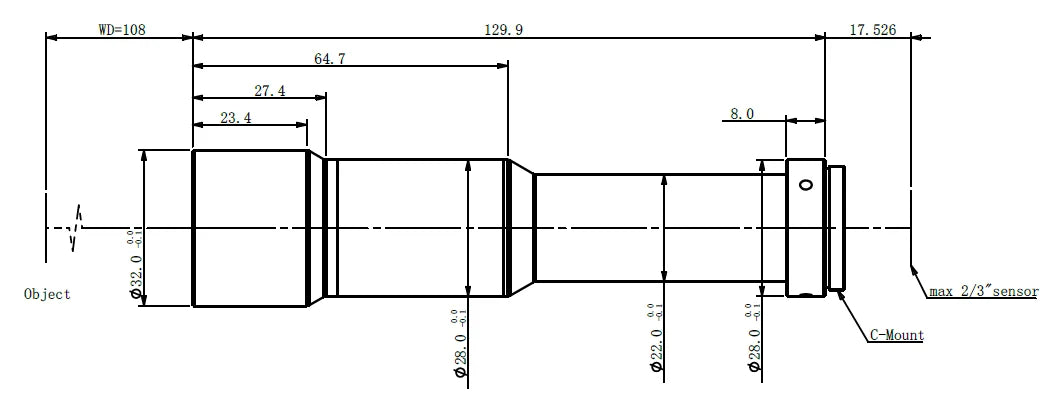

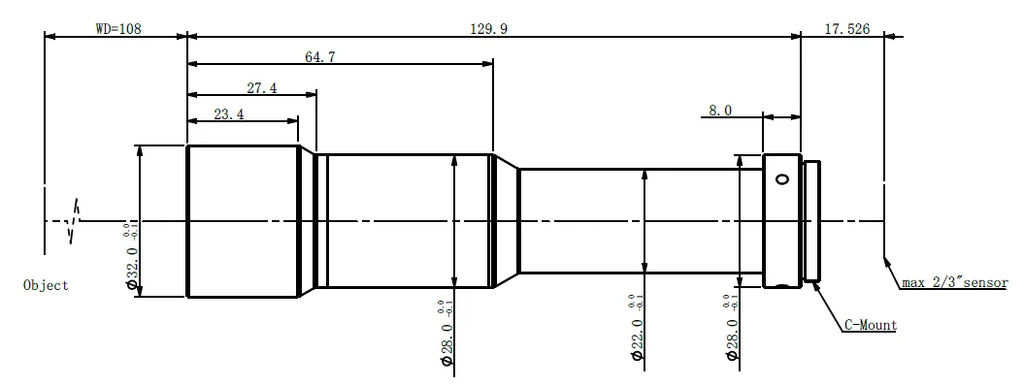

| Dimension | 129.9 mm × Φ32 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
