Representative photo of this series
Machine vision lenses
High resolution F-mount large format lens, 90 mm, F-Mount, working distance 651.1 mm (LS-MF9015A)
Model LS-MF9015A
- Focal length90mm
- Magnification0.08X-0.19X
- MountF-mount
- SensorLarge format
- Working distance651.1 mm
- ApertureF4.0-16
$1,039.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Super-high-resolution large format F-mount lenses for 3.5 µ pixels, supporting 29MP to 71MP sensors, with better optical performance than SLR lenses; applied to large-format, high-precision detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

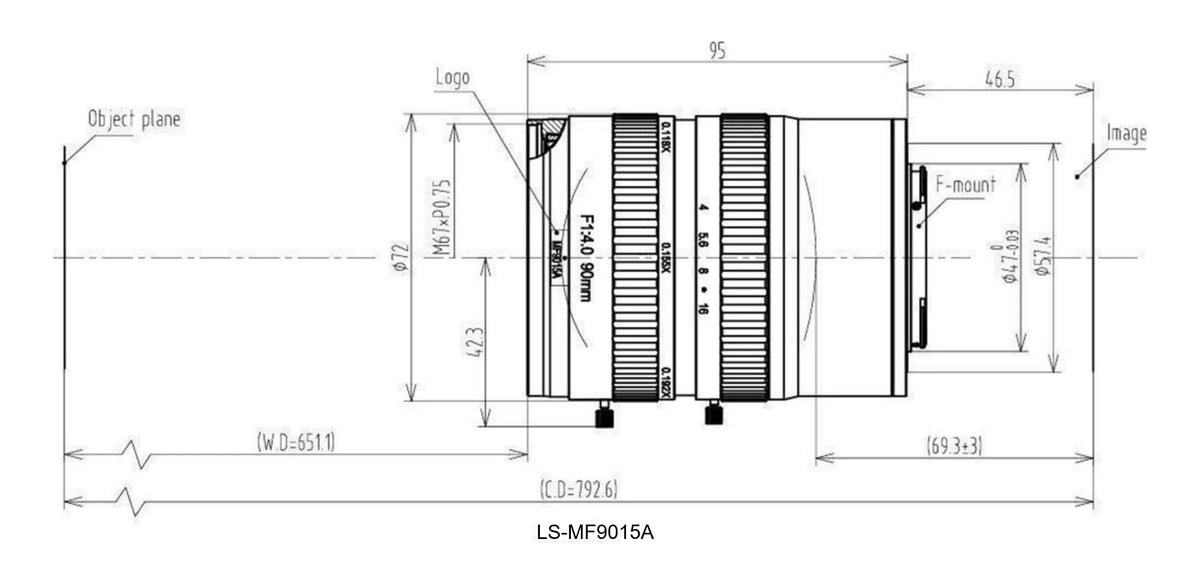

Specifications
General
| Model | LS-MF9015A |
|---|---|
| EFL | 90mm |
| F/NO | 4.0-16 |
| Conjugate distance | 792.6 |
| Flange distance | 46.5 |
Optics
| Focal length | 90mm |
|---|---|
| Magnification range | 0.08X-0.19X |
| Distortion | <0.01% |
| Standard magnification | 0.155X |
| Image size (dia.) | dia. 64 |
| Optical distortion | 0.05% |
| Working distance | 651.1 |
| Focal length (mm) | 90 |
| Aperture | F4.0-16 |
Sensor and imaging
| Sensor format | dia. 64 mm image circle |
|---|
Mechanical
| Mount | F-Mount |
|---|---|
| Filter size | M67×P0.75 |
| Shipping weight | 0.38 kg |
Other models in the High resolution F-mount large format lens series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MF9001A | 90 mm, F-Mount | $1,039.00 | 3 in stock | View |
