Telecentric lenses

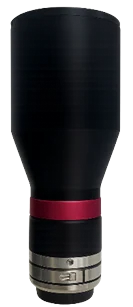

Bi-Telecentric Lens, 0.317x, 110 mm WD, 2/3" (LS-TCL-0713)
Model LS-TCL-0713
- Magnification0.317
- MountC-mount
- Sensor2/3"
- Working distance110 mm
- ApertureF5.4
$1,039.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-Telecentric Lens, 0.317x, 110 mm WD, 2/3". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0713 |
|---|
Optics
| Magnification | 0.317 |
|---|---|
| Working distance | 110 mm |
| F-number | F5.4 |
| Image size | 2/3" |
| Depth of field | ±4.3 mm@F11 |
| Object-side resolution | 10.9 μm |
| Object-side telecentricity | ≤ 0.1° |
| Distortion | ≤ 0.1% |
| Coaxial light | Not supported |
| Optical distortion | < 0.1% |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

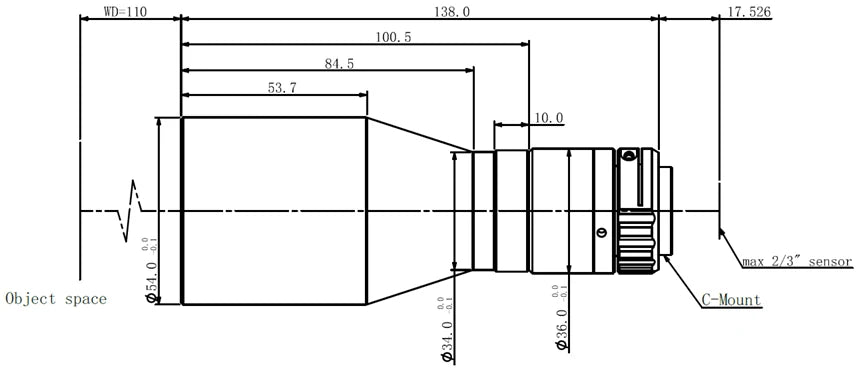

| Dimension | 137.9 mm × Φ54 mm |
|---|---|
| Weight | 400 g |
| Shipping weight (estimated) | 0.66 kg |
Other models in the M Series Bi-Telecentric lenses series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0706 | 0.500x, 65 mm WD, 2/3" | $929.00 | 4 in stock | View |
| LS-TCL-0714 | 0.438x, 73 mm WD, 2/3" | $1,029.00 | 3 in stock | View |
| LS-TCL-0712 | 0.271x, 118 mm WD, 2/3" | $1,279.00 | 5 in stock | View |
| LS-TCL-0711 | 0.238x, 128 mm WD, 2/3" | $1,379.00 | 4 in stock | View |
| LS-TCL-0710 | 0.204x, 138 mm WD, 2/3" | $1,409.00 | 5 in stock | View |
| LS-TCL-0709 | 0.178x, 158 mm WD, 2/3" | $1,649.00 | 5 in stock | View |
| LS-TCL-0708 | 0.158x, 178 mm WD, 2/3" | $1,689.00 | 3 in stock | View |
| LS-TCL-0707 | 0.095x, 273 mm WD, 2/3" | $2,529.00 Quote | Ships in 2-3 weeks | View |
