M12 board lenses
4 mm, 1/2.7", 4 MP, M12-mount Starlight Low-Light Lens (LS-MBL-0198)
Model LS-MBL-0198
- Focal length4.0 mm
- MountM12
- Sensor1/2.7"
- ApertureF1.4 Fixed iris
- Resolution4.0 MP
$59.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4 mm, 1/2.7", 4 MP, M12-mount Starlight Low-Light Lens. 4.0 mm, 1/2.7" 4 MP super-starlight M12 lens with F1.4 aperture, IR correction for 24 h day/night and aspherical elements; wide field of view for short-distance views. Covers 1/2.7" and 1/3" cameras. At a glance: focal length 4.0 mm; format 1/2.7"; resolution 4.0 MP; aperture F1.4 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0198 |
|---|---|
| IR correction | IR |
| Format | 1/2.7" |
| Structure | 3G3P |
| Angle of view (1/2.7", DxHxV) | 110 x 97 x 54 deg |
| Angle of view (1/3", DxHxV) | 100 x 79 x 59 deg |
Optics
| Focal length | 4.0 mm |
|---|---|
| Aperture | F1.4 Fixed iris |
| M.O.D. | 0.1 m |
| Distortion | -12% |
| TTL | 23.4 mm |
Sensor and imaging
| Resolution | 4.0 MP |
|---|
Mechanical

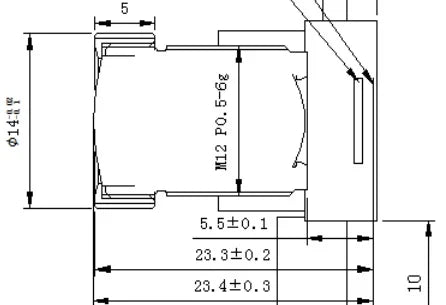

| Size | dia. 14 x 17.8 |
|---|---|
| Mount | M12 x 0.5 |
| Weight | 10 g |
| Shipping weight (estimated) | 0.11 kg |
Other models in the Starlight Low-Light lenses (LS-MBL-S18) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0193 | 6 mm, 1/2.7", 6 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0194 | 6 mm, 1/2.7", 4 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0195 | 2.8 mm, 1/2.7", 6 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0196 | 2.8 mm, 1/2.7", 4 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0197 | 4 mm, 1/2.7", 6 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0199 | 4 mm, 1/1.8", 5 MP, M16-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0200 | 4 mm, 1/1.8", 4 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0201 | 6 mm, 1/1.8", 5 MP, M16-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0202 | 4 mm, 1/2.5", 3 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0203 | 6 mm, 1/2.5", 3 MP, M12-mount | $59.00 | Ships in 2-3 weeks | View |
