Tessellated calibration targets (LS-LXR-S25)

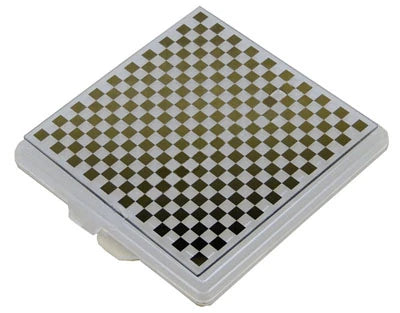

Representative photo of this series

Lens accessories

Tessellated calibration targets, 127 x 127 mm (LS-LXR-0366)

Model LS-LXR-0366

Size127*127
TypeCalibration targets
SubstrateSoda Lime Glass
Thickness2.3mm

$59.00

Ships in 2-3 weeks

0.21 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LXR-0366
Substrate	Soda Lime Glass
Overall accuracy	±1 μm
Process	Direct Laser Writing
Effective Area(mm)	108
Grid(mm)	4.0
Grid Array	27*27
Precision	±0.001 mm (tested by the China Institute of Metrology)
Software compatibility	Zhang Zhengyou basic calibration algorithm, OpenCV calibration algorithm

Mechanical

Thickness	2.3mm

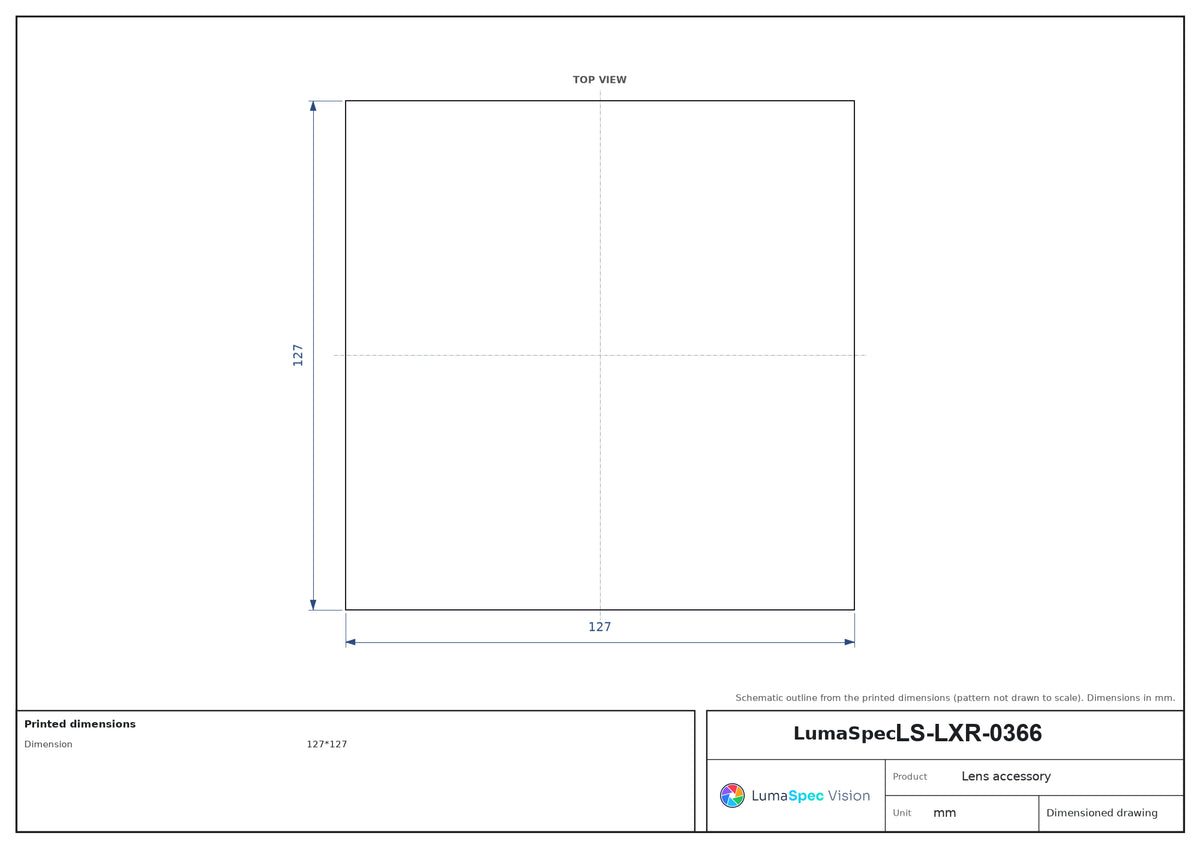

Dimension (mm)	127*127
Shipping weight	0.21 kg

Downloads

Datasheet (PDF)LS-LXR-0366 · 474 KB

Features

The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
It can be compatible with Zhang Zhengyou basic calibration algorithm and OpenCV calibration algorithm.Suitable used for universities and research institutions.
Any pattern,any size,quickly and low cost
Any pattern, any size, quickly and low cost (customization)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
