Lens accessories

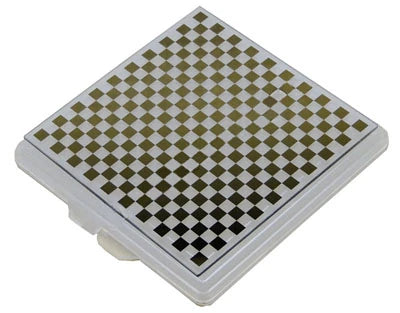

Tessellated calibration targets (LS-LXR-S25)
- 10 models
- from $59.00
- Series LS-LXR-S25
The Tessellated calibration targets (LS-LXR-S25) is a range of 10 lens accessories from LumaSpec Vision, from $59.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Type
- Calibration targets
Features
- The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
- It can be compatible with Zhang Zhengyou basic calibration algorithm and OpenCV calibration algorithm.Suitable used for universities and research institutions.
- Any pattern,any size,quickly and low cost
- Any pattern, any size, quickly and low cost (customization)
All 10 models in the Tessellated calibration targets (LS-LXR-S25)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LXR-0357 | 25*25 | 16.5 | 165*165 | 0.1 | $59.00 | View |
| LS-LXR-0358 | 30*30 | 20.6 | 103*103 | 0.2 | $59.00 | View |
| LS-LXR-0359 | 38*38 | 27.75 | 103*103 | 0.25 | $59.00 | View |
| LS-LXR-0360 | 50*50 | 30.5 | 61*61 | 0.5 | $59.00 | View |
| LS-LXR-0361 | 62*62 | 51 | 51*51 | 1.0 | $59.00 | View |
| LS-LXR-0362 | 65*65 | 55.5 | 37*37 | 1.5 | $59.00 | View |
| LS-LXR-0363 | 100*100 | 74 | 37*37 | 2.0 | $59.00 | View |
| LS-LXR-0364 | 100*100 | 92.5 | 37*37 | 2.5 | $59.00 | View |
| LS-LXR-0365 | 127*127 | 105 | 35*35 | 3.0 | $59.00 | View |
| LS-LXR-0366 | 127*127 | 108 | 27*27 | 4.0 | $59.00 | View |
